If hat embroidery has ever felt fussy, this playbook turns it into a confident, repeatable routine. You’ll learn how to hoop even stubborn caps, get laser-true alignment, and stitch with zero drama—all while protecting the hat’s bill and your needles.
What you’ll learn
- How to prepare and center sticky stabilizer inside the hat’s front panel
- A reliable hooping sequence for structured caps (including tricky Richardson styles)
- How to install the cap frame, mount the hooped hat, and validate design placement on-screen
- When and why to trace the design outline before sewing
- Safe removal and unhooping without bending needles or creasing the cap
Getting Started: Preparing Your Hat & Stabilizer
Choosing the Right Stabilizer for Hats Sticky stabilizer is the simplest route for hats. It eliminates the need to hoop backing in the cap frame and gives you a firm, adhesive surface that locks the front panel in place. That stability is everything—if the hat can’t shift, your embroidery stays true to center and crisp. brother embroidery machine
Tips for Cutting and Aligning Sticky Stabilizer Cut a piece to match the front panel’s footprint. Fold it once to create a center crease—that crease becomes your alignment guide. After peeling the backing, you’ll use the crease to match the centerline of the hat’s front panel for square, repeatable placement.
Inserting Stabilizer into Tricky Hat Shapes Press the sticky piece inside the hat’s front panel and align the fold with the crown center seam. Smooth from center outward so the stabilizer fully contacts the fabric. This takes seconds but prevents bubbles and wandering stitches later. If you’re working with a firm, pre-curved front, be patient—good adhesion now keeps the hooping step effortless. hooping station for embroidery
Quick check
- Stabilizer sits evenly across the front panel
- Center crease matches the hat’s center seam
- Adhesive is bonded smoothly—no blisters or wrinkles
Prep checklist
- Sticky stabilizer cut and centered
- Backing removed and adhesive bonded inside the hat
- Hat front panel feels supported, not floppy
Mastering the Cap Frame Hooping Process

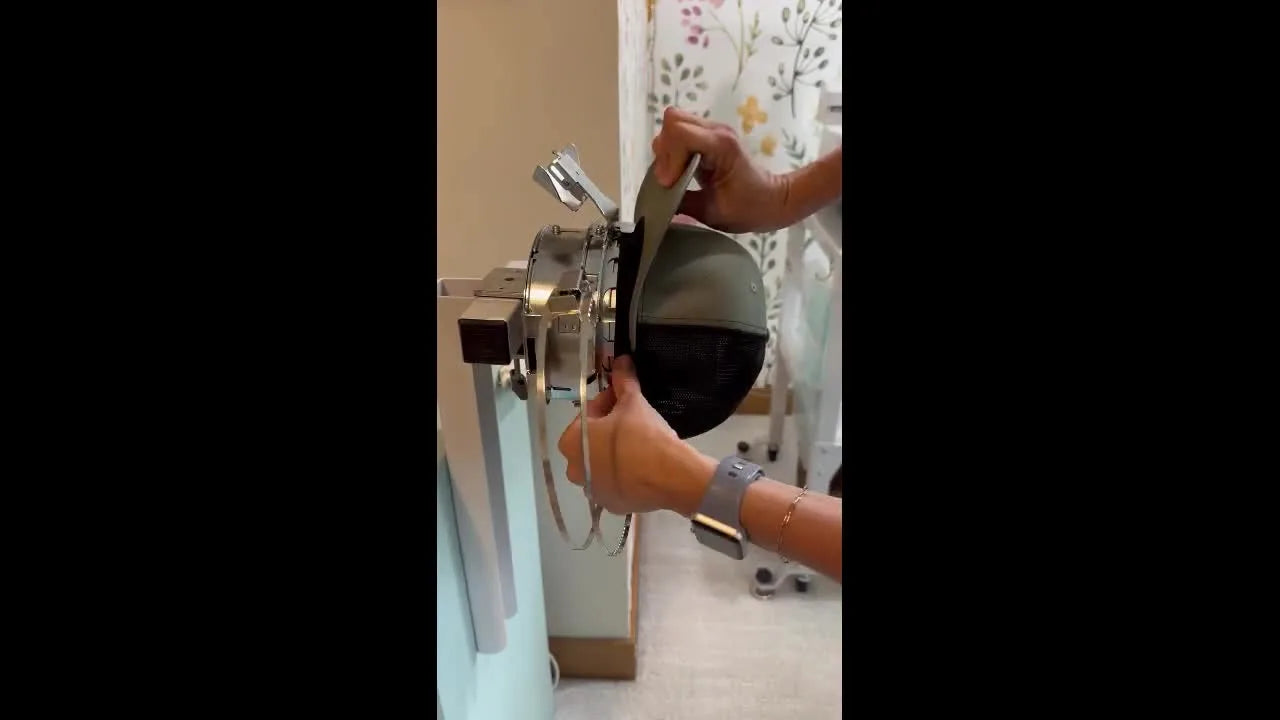

Understanding the Cap Frame Driver Seat the hat onto the cap frame driver with the stabilizer already inside. This driver acts as the base, letting you tension the cap without fighting fabric stretch or bill curvature. Keeping everything square here simplifies every step that follows.
Key Alignment Points for Richardson Hats Two visual cues take out the guesswork: a red line across the frame and a red dot on the nose piece. Align both with the hat’s true center. Tuck the bill under the frame’s front lip first—this anchors the brim and sets your placement baseline. Expect to nudge, check, and re-nudge; a couple of passes are normal, and worth it for perfect centering. brother hat hoop
Pro tip Temporarily bend the bill to cooperate with the frame’s curve. You can reshape the bill after sewing; the brief flex makes hooping clean and consistent.
Securing Your Hat with Binder Hooks Use the binder hooks that ship with your hat hoop—two at the bottom are usually enough. They clamp the bottom edge so the panel stays taut all the way through the stitch-out.
Watch out A hat that feels “almost snug” is not snug. Add the binder hooks before you move to the machine; they’re your insurance against mid-run shifts that throw off alignment.
Hooping checklist
- Bill is tucked fully under the front lip
- Centerline matches both the red line and red dot
- Fabric is uniformly tensioned (no slack at the sides)
- Two binder hooks locked at the bottom edge
Machine Setup: Swapping Frames for Hat Embroidery
How to Remove the Standard A-Frame Clear space for the cap frame by popping off the A-frame. Twist the tabs to release and set the A-frame aside. This step ensures your cap frame can sit correctly on the machine’s mounting points.
Installing the Cap Frame: Step-by-Step Loosen the small top screws on the cap frame assembly so it can slide into place. Seat the frame onto the machine’s two designated tabs; correct seating is non-negotiable for stability. Then tighten the small top screws, followed by the bottom screws to lock the frame down. cap hoop for brother embroidery machine
Quick check
- Cap frame rests securely on both tabs
- All screws are tightened—hand-snug, not loose
- The frame feels rock-solid when gently nudged
Setup checklist
- A-frame removed
- Cap frame seated on tabs
- Top screws snug, bottom screws tightened
Design Selection & Precision Placement on Your Machine
Loading Your Design via USB With the cap frame recognized, the machine’s screen displays a hat frame icon. Load your design from USB. The machine will orient the design for cap embroidery automatically—no manual flipping needed.
Automatic Design Flipping for Cap Frames Once you hit Set and End Edit, the machine flips the design orientation to suit how the hooped hat feeds into the needle area. This removes a common confusion point and prevents upside-down stitch-outs.
Using the Outline Feature for Perfect Placement Nudge the design up toward the bill to achieve a professional look—up to the hoop’s safe boundary. Use the on-screen Outline (trace) to preview the exact footprint over your hat without stitching. Watch it travel around the perimeter; if anything looks off-center or too low/high, make micro-adjustments and re-outline until it’s right. brother pr1000e hoops
Quick check
- Hat frame icon is visible on-screen
- Design is positioned as close to the bill as your hoop allows
- Outline trace tracks exactly where you expect on the front panel
Placement checklist
- Design loaded and auto-flipped
- Position adjusted and validated by outline trace
- No collisions indicated at the edges of the hoop boundary
Running the Embroidery & Finishing Touches
Initiating the Stitch Process When the outline looks good, press Sew and assign the thread color. That’s it—the machine begins the run. Keep an eye out for smooth feeding and a steady rhythm in the first few seconds; early issues are easiest to catch.
Safe Removal of the Embroidered Hat When stitching is complete, press the Home button. This creates extra clearance to work. Push on the rollers to release the hat, then turn it sideways to pass under the needles as you remove it. Sideways is safer—it prevents accidental contact with the needle system.
Unhooping and Reshaping the Bill Place the hat back on the cap frame driver, unclip, and slide it off. Gently reshape the bill with your hands to restore its curve. The quick bill flex you used earlier won’t leave a lasting bend once you set the shape.
Operation checklist
- Sew pressed and color assigned
- Home pressed for extra clearance
- Rollers pressed to release; hat turned sideways under the needles
- Hat unclipped and bill reshaped
Achieving Professional Hat Embroidery Results
Common Challenges and Solutions
- Centering drifts off: Use both red guides (line and dot) and re-seat the bill under the front lip. Repeat the micro-adjustment cycle before securing with binder hooks.
- Fabric shift during run: Add the two bottom binder hooks and confirm tension across the front panel before mounting on the machine.
- Placement too low/high: Trust the outline trace. Adjust position and re-trace until it frames your design exactly where you want it near the bill edge.
- Clearance during removal: Press Home before releasing the hat and always rotate it sideways under the needles.
Quality checks at key milestones
- After stabilizer: The front panel feels firm and evenly supported
- After hooping: Hat is taut, square to the red line/dot, and the bill is fully tucked
- After placement: Outline trace matches your visual target areas
- After removal: No snagging; bill reshaped cleanly; stitches sit smooth and even
Maintenance Tips for Your Cap Frame
- Keep screws hand-snug, not loose. If the frame wiggles when tapped, re-tighten.
- Wipe the driver and frame lip periodically—clean surfaces make hooping consistent.
- Store binder hooks clipped to the frame so they’re always at hand.
Creative Ideas for Custom Hats
- Place designs close to the bill for a retail-ready look that reads well from eye level.
- Use outline tracing to finesse off-center or arched compositions on structured caps.
- Develop a repeatable “alignment ritual” (bill tuck, red line/dot check, binder hooks) to speed up production while keeping accuracy.
Pro tip If you frequently embroider structured hats, consider standardizing your workflow with dedicated accessories and layout routines. It’s not about more gear; it’s about consistent steps that make alignment automatic. hoopmaster
Watch out Never force a hooped hat straight under the needles—turn it sideways to protect both the hat and the needle system. One gentle rotation can save a needle and a cap.
From the comments The on-screen outline trace is a standout placement aid—use it before every hat run. It’s the fastest way to catch a misalignment before the first stitch.
Additional notes for gear planners While this guide demonstrates a cap frame workflow on a multi-needle platform, many embroiderers explore accessory ecosystems that support similar tasks. If you’re researching equipment options around this workflow, here are phrases to look up as you compare solutions: mighty hoops for brother pr1000e and magnetic hoops. Choose based on compatibility and your process; this tutorial itself uses a standard cap frame with sticky stabilizer.
If you’re building a hat-specific kit, shortlist compatible cap accessories and frame options by model. Phrases like mighty hoop for brother pr1050x or magnetic hoop for brother can help you narrow by machine family while you evaluate capabilities relative to your current setup. Keep in mind, the steps in this tutorial remain the same: stabilizer first, precise center alignment, secure hooping, verified on-screen placement, and safe removal. mighty hoops
Troubleshooting & Recovery
- Hat won’t seat on the machine: Turn the hooped hat sideways to pass under needles, slide it back, then rotate upright until the rollers click into their holes.
- Machine doesn’t show the hat frame icon: Reseat the cap frame on the machine tabs and ensure all screws are tight; the icon confirms correct recognition.
- Outline trace runs off target: Reposition the design on-screen (nudge up/down/left/right) and re-run the outline trace until centered.
- Hard-to-hoop caps (e.g., structured fronts): Tuck the bill under the front lip, align to red line/dot, bend the bill slightly, and secure with two binder hooks at the bottom.
Decision points
- If the hat front feels loose → add binder hooks and re-tension before stitching.
- If your design needs to sit near the bill → move it up to the hoop’s safe limit, then outline-trace to confirm.
- If the hat catches during removal → press Home again, push the rollers, and rotate sideways before extracting.
Why this sequence works
- Stabilizer underpins stability: Adhesive backing keeps fabric from creeping.
- Bill tuck and red guides deliver center: Physical references prevent drift.
- Binder hooks lock tension: Edge security eliminates micro-shifts.
- Outline trace validates placement: Visual proof beats guesswork every time.
- Home-and-sideways removal protects needles and hats: Clearance first, then a safe angle.
