Top embed module notice: This article acts as a standalone technical training guide for the Hooptalent system. It is designed to take you from "zero experience" to "production-ready," replacing guesswork with a standardized workflow.

If you have ever hooped a stack of polo shirts by hand, you know the sinking feeling of seeing the logo land five millimeters higher on the second shirt than on the first. Or perhaps you’ve battled a thick winter jacket that keeps popping out of a standard plastic hoop.

This guide creates a repeatable, mechanical process for your embroidery workflow. We will cover the specific physics of using a hooping station and magnetic frames, ensuring that your 50th item looks identical to your first.

What you will master in this guide

• Station logic: Setting up the main and sleeve stations for specific garment geometries.
• The "Neutral Tension" technique: Hooping polos, hoodies, and bags without stretching (the #1 cause of puckering).
• Data logging: Creating "coordinate recipes" so reprint orders are instant, not a new experiment.
• Material science: A logical decision tree for matching stabilizers, needles, and threads to your fabric.
• Root cause analysis: Diagnosing shifting, puckering, and alignment issues before they ruin a garment.

The Variable: Why Manual Hooping Fails

Manual hooping is deceptively difficult because fabric is fluid. It stretches, biases, and slips.

When hooping a polo shirt on a tabletop, you rely on your eyes to judge the distance from the placket and the collar. Even if you are accurate to within 2mm, the fabric tension varies. If you pull the fabric taut to fit the inner ring, you stretch the fibers. When you remove the hoop after stitching, the fibers relax, puckering the design.

In a commercial environment, consistency is currency. A customer ordering 20 staff uniforms expects the logo to be perfectly aligned relative to the buttons on every single size, from Small to 3XL. Manual variations cost you time in re-measuring and money in ruined garments.

To solve this, we must remove "human estimation" from the equation. A hoop talent hooping station workflow locks the hoop and the garment into a fixed coordinate system.

The Cost of Inconsistency

Without a mechanical station, beginners often face:

• "Hoop Burn": Crushed fabric fibers from tightening plastic screw hoops too aggressively.
• Rotational errors: Logos that tilt slightly left or right because the grain line wasn't perpendicular.
• Vertical drift: The logo creeps up or down the chest as the operator gets tired.

The Standardized fix

The methodology we are teaching here is "Geometry over Guesswork." By using a grid system and fixtures, we anchor the garment to a hard stop (the shoulder measuring tool). This ensures that the distance from the shoulder seam to the center of the design is mathematically identical every time.

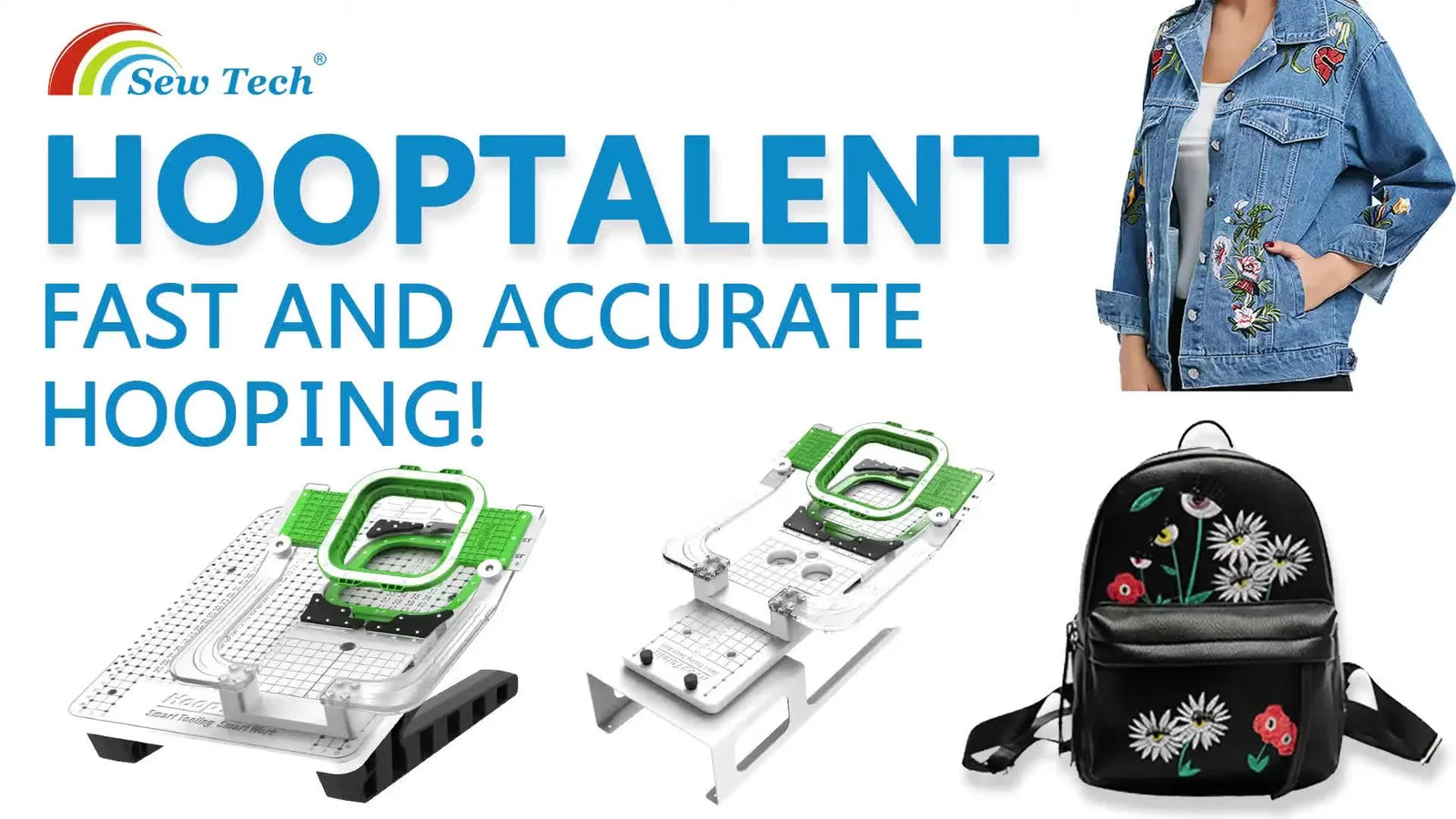

Anatomy of the SEWTECH Hooptalent System

The entire system relies on three components working in unison: the Base (the grid), the Fixture (the hoop holder), and the Frame (the magnet).

The system includes a Main Station for flat, broad items (jackets, adult shirts) and a Sleeve Station for tubular or narrow items (tote bags, pant legs, onesies). The magic lies in the Fixtures—these are distinct brackets that snap onto the station's grid numbers (e.g., locking at line 66).

System Components Explained

• The Grid Base: Provides the X and Y coordinates. You record these numbers to repeat jobs later.
• The Fixture: Holds the bottom ring of the hoop. It separates the top and bottom frame so the garment can slide between them freely without friction.
• Magnetic Flaps: These are critical. They clamp your backing (stabilizer) independently of the garment. This means you do not have to hold the stabilizer while positioning the shirt.

The Physics of Magnetic Frames

We utilize MaggieFrame magnetic hoops in this workflow. Unlike screw hoops that rely on friction (pinching the fabric between two walls), magnetic hoops use vertical clamping force.

Why this matters for beginners:

1. No "Tug of War": You don't need to pull the fabric to tighten the screw. This eliminates most fabric distortion.
2. Thickness handling: The magnets self-adjust to the thickness of a hoodie or canvas bag.
3. Durability: High-quality hoops, such as those compatible with SEWTECH industrial multi-needle machines, reduce mechanical stress on the machine's pantograph.

If you struggle with wrist pain or "hoop burn" marks on sensitive fabrics, upgrading to magnetic embroidery hoops is often the most effective ergonomic and quality improvement you can make.

Pre-Production: The "Invisible" Variables

Before touching the hardware, you must secure your consumables. A perfect hoop job cannot save a project if the underlying materials fail. The machine embroidery ecosystem utilizes three pillars: Thread, Needle, and Stabilizer.

1. Stabilizer (Backing): The Foundation

• Cut-Away (Mesh or Heavy): Mandatory for knits (Polos, T-shirts, Hoodies). It stays with the garment forever. If you gently stretch a polo and the stabilizer tears, it is the wrong stabilizer.
• Tear-Away: precise for stable woven fabrics (Canvas bags, Denim, Towels).
• Recommendation: For unmatched stability on stretchy performance polos, use a fusible no-show mesh or a quality 2.5oz cut-away. SEWTECH offers specific stabilizer kits designed to pair with magnetic tension.

2. Needle Typography

• Ballpoint (BP): Pushes fibers aside. Use for knits (Polos).
• Sharp/Universal: Pierces fibers. Use for wovens (Jackets, Bags).
• Size: A 75/11 is your standard workhorse. Thick canvas may require a 90/14.

3. Thread Selection

• Top Thread: Polyester (40wt) is standard for durability and colorfastness.
• Bobbin Thread: Must correspond to your machine's tension settings. A balanced commercial machine usually expects a lighter weight bobbin thread (60wt or 90wt).

Safety Warning: When using a dedicated station, keep your workspace clear. Magnetic hoops have a strong snap force. Do not rest scissors or metal tools on the station where they could be magnetized or pinched.

If you are expanding your shop, consider that consistent consumables reduce troubleshooting. SEWTECH embroidery threads and specific magnetic hoops for embroidery machines are engineered to work in tandem, minimizing thread breaks caused by uneven flagging.

Daily Start-Up Checklist

• Lint Check: Remove the hoop and brush the bobbin case area.
• Needle Check: Run your fingernail down the needle tip. If you feel a burr, replace it.
• Oil: Check your machine manual; dry hooks cause noise and birds-nests.
• Grid Setup: Ensure the fixture is locked tightly onto the station grid.

Project A: The Polo Shirt (Main Station)

The goal is to place a left-chest logo exactly centered between the button placket and the side seam, at a specific height from the shoulder.

Execution Protocol

1. Set the Fixture:
   Snap the 5.5-inch fixture onto the Main Station at a standard starting point (e.g., line 66 for Medium/Large shirts).
2. Load the Consumables:
   Place the bottom magnetic ring into the fixture slots. Slide your Cut-Away stabilizer under the station’s magnetic clamping flaps. It should be taut like a drum skin, but not stretched.
3. Draft the Garment:
   Pull the polo shirt over the station. Slide it down until the shoulder seam physically touches the raised lip/ruler at the top of the station.

   Pro tip

   Use the station’s grid lines to align the button placket. The placket should be perfectly vertical and parallel to the center line.
4. The "Neutral" Smooth:
   Gently sweep your hands from the center of the hoop area outward. Do not pull. You want the fabric to lay in its natural, relaxed state.
5. Engage Top Frame:
   Place the top magnetic ring onto the fixture's guide arms and press down firmly. The magnets will snap shut.

Verification: Lift the hoop (with the shirt) off the fixture. Look at the back. Is the stabilizer smooth? Look at the front. Is the fabric relaxed? If you see wrinkles radiating from the center, you pulled too hard. Pop it off and retry.

Repeatability Logic

For the next 10 shirts, you do not measure. You simply slide the fixture to "Line 66," load the backing, pull the shoulder to the stop, align the placket, and snap. This turns a 3-minute setup into a 30-second task.

Upgrading to a magnetic embroidery frame allows you to hoop over buttons and thick seams without damaging them, which is impossible with standard plastic hoops.

Project B: Heavy Outerwear (Jackets/Hoodies)

Winter gear is heavy. The weight of the jacket can drag the hoop, causing alignment shifts or even popping the hoop loose during sewing.

The Heavyweight Protocol

1. Fixture Swap:
   Remove the small fixture and install the Long Adjustable Fixture. This supports the larger magnetic frames required for jacket backs or full-front designs.
2. Lock and Load:
   Because jackets are heavy, ensure the fixture screws are tightened down hard. Place the bottom metal frame into the fixture.
3. Stabilizer Synergy:
   For a thick Carhartt-style jacket, use a sturdy Tear-Away or a heavy Cut-Away. Clamp it under the flaps.
4. Weight Management (Crucial):
   Slide the jacket onto the station. Support the rest of the jacket on the table. Do not let the sleeves or body hang off the edge of the table, or gravity will pull the fabric out of alignment before you can hoop it.
5. Zip and Smooth:
   If the jacket has a zipper, ensure the zipper teeth are straight and centered on the grid vertical line.
6. Snap:
   Apply the top frame. Watch your fingers—larger magnets have stronger engagement forces.

Quality Check: The hoop usually holds the jacket zipper. Ensure the zipper pull (the metal slider) is taped down or moved far outside the sewing field so the needle does not strike it.

For shops moving into heavy production, consider a verified magnetic frame for embroidery machine system that is rated for high-speed industrial use (like SEWTECH's product lines), as the magnets are calibrated to hold through multiple layers of canvas and fleece.

Jacket Checklist

• Fixture screws tightened fully?
• Jacket weight supported on the table?
• Zipper pull taped out of the way?
• Proper needle (90/14 Sharp) installed?

Project C: The "Impossible" Items (Bags & Baby Onesies)

Items with no open back (like tote bags) or tiny openings (like infant wear) cannot fit over the wide Main Station. This is where the Sleeve Station becomes essential.

The Tubular Solution

The Sleeve Station is a narrow pedestal. It allows you to thread a small leg, sleeve, or bag onto the station so that the "back" of the item hangs underneath, completely out of the way of the hoop.

Why this is critical: If you hoop a Onesie on a table, it is very easy to accidentally hoop the front and back of the shirt together. The Sleeve Station physically separates the layers.

Using a dedicated hooping station for embroidery with a sleeve arm is the only efficient way to handle these substrates in volume without sewing the item shut.

Hooping a Backpack (Hardware Hazard)

1. Fixture Setup: Use the Short Adjustable Fixture on the Sleeve Station.
2. Clearance Check: Visualize where the backpack straps and buckles will fall. They must be outside the magnetic ring area.
3. Hooping: Slide the bag over the pedestal. Rotate the bag if necessary so the zipper is at the top or bottom, away from the needle bar.
4. Snap: Apply the top frame.

Safety Critical: Magnetic hoops are attracted to steel buckles. Ensure no metal hardware is caught between the magnetic rings. If the machine needle hits a metal buckle during high-speed sewing, it can shatter, potentially causing injury or timing damage to the machine.

The Decision Matrix: What to Use When?

• Flat, Open Back? -> Main Station.
• Tubular, Narrow, Small? -> Sleeve Station.
• Heavy Canvas/Leather? -> Large Magnetic Frame + Strong Stabalizer (Cut-away).
• Stretchy Knit? -> Small Frame + Mesh Stabilizer.

For users of commercial equipment, finding generic frames can be risky. We recommend standardizing on magnetic hoops for tajima embroidery machines or equivalent SEWTECH compatible frames that match your machine’s specific arm width to prevent collisions.

The Secret Weapon: The Data Log

You have successfully hooped the perfect Medium Polo. The fixture was at Line 66. The side ruler read 15cm.

Write it down.

The Hooptalent system allows you to record the "X" (Grid Line) and "Y" (Side Ruler) coordinates. Create a simple production sheet or "traveler" for your repeat clients.

The Recipe for Repeatability:

• Client: Joe's Pizza
• Item: Red Port Authority Polo (Mens)
• Hoop: 5.5" MaggieFrame
• Station: Main
• Fixture Pos: Line 66
• Stabilizer: 2.5oz Cut-Away

Next year, when Joe orders 50 more shirts, you do not reinvent the wheel. You set the station to Line 66 and begin production immediately.

This data-driven approach is compatible with all machinery. Whether you use magnetic hoops for brother embroidery machines in a home business or a wall of industrial heads, the coordinate system remains the universal language of accuracy.

Why Standardization Matters

The transition from hobbyist to professional is defined by consistency. A hooping station and magnetic frame system removes the physical struggle of containment, allowing you to focus on the art of embroidery.

By utilizing high-quality magnetic frames (like the MaggieFrame series) and a standardized station, you gain:

1. Speed: 50% faster hooping time.
2. Safety: Reduced carpal tunnel strain.
3. Quality: Zero hoop burn and consistent specific placement.

Final Maintenance Tip: Keep your magnetic hoops clean. Over time, spray adhesive and lint can build up on the magnet surface, reducing holding power. Wipe them weekly with a little rubbing alcohol to keep the grip strict.

Troubleshooting Guide

Issue: Design is tilted or crooked.

• Cause: The garment grain was not perpendicular to the station.

Issue: Thread Breaks / Shredding.

• Cause: "Flagging." The fabric is bouncing up and down because it is too loose in the hoop.

Issue: Hoop shifts on the machine while sewing.

• Cause: The outer arms of the hoop don't grip the machine pantograph tightly, or the jacket is too heavy.

Issue: Puckering around the design borders.

• Cause: Fabric was stretched during hooping. It snapped back after un-hooping.

By following this mechanical workflow and utilizing robust equipment like SEWTECH's magnetic solutions, you transform hooping from a dreaded chore into the most reliable part of your production line.
