Nylon Jacket Back Embroidery Without the Pucker: Magnetic Hooping, Cutaway Backing, and a 31,000-Stitch Reality Check

If you have ever quoted a “simple jacket back” and then watched the clock eat your profit margins, welcome to the club. Nylon shell jackets with a loose lining are slippery, springy, and notoriously unforgiving. A large logo (like the 31,000 stitch design featured here) will expose every weak link in your hooping, stabilization, and trim strategy.

This guide rebuilds the exact workflow shown in the video: a two-color jacket-back job on a nylon shell jacket with lining, stitched on an SWF 15-needle embroidery machine. The job runs at approximately 800 RPM, starting with silver metallic thread for a large “X,” then switching to white Madeira polyester for the text.

However, copying settings isn't enough. We are going to add the sensory details and safety margins that keep you out of the ditch—dealing with hoop tension physics, critical stabilizer choices, and production efficiency.

Nylon Shell Jacket + Lining: Why This Garment Punishes “Normal” Hooping Habits

Nylon shell jackets do not behave like denim or fleece. The shell wants to slide, the lining wants to bunch, and the moment you add a large fill area, the fabric can distort and “remember” that distortion after you unhoop.

The Physics of Failure

Here is what is really happening under the needle (and why the video’s method works):

1. Shear Force: Nylon is low-friction. If the shell isn’t supported evenly, the needle penetrations push the fabric around (flagging), causing stitches to land in the wrong place.
2. The "Hidden Fold" Trap: You can hoop the outside perfectly and still trap a wrinkle of the lining inside the jacket. When the machine runs, it stitches that fold permanently.
3. Accumulated Distortion: Large stitch counts amplify small mistakes. A tiny ripple at stitch 500 becomes a visible, unfixable wave by stitch 25,000.

Sensory Check: When you run your hand over the unhooped jacket, listen. Does it rustle loudly? Is it "swishy"? That sound indicates a lack of friction, meaning the fabric will try to escape the hoop unless clamped vertically.

This is why the video’s emphasis on smoothing the shell against the backing inside the jacket is not optional—it is the difference between a pro finish and a costly return.

The Magnetic Hoop Advantage on Jackets: Faster Loading, Cleaner Tension, Fewer Hoop Marks

The host uses a Hoop Master magnetic hoop and notes how much easier it is on jackets compared to standard hoops. In real production, the biggest win isn’t just comfort—it is consistency.

A professional magnetic embroidery hoop changes the game because:

• Vertical Clamping: Standard hoops rely on friction and "tugging" the fabric, which causes "hoop burn" on sensitive nylon. Magnets clamp straight down, holding the material without crushing the fibers.
• Speed: Jackets fight you. Loading a bulky jacket into a standard hoop requires three hands. Magnets snap into place in seconds.
• Reduced "Over-Stretch": You are less likely to pull the shell so tight that it puckers when released.

The Tool Upgrade Path (Commercial Logic)

When should you stop fighting the standard hoop and upgrade?

• Level 1: The Hobbyist. If you hoop one jacket a week, a standard hoop works if you use a layer of raw fabric between the rings to prevent burn.
• Level 2: The Side Hustle. If you do 5+ jackets a week, using a magnetic hoop becomes a safety net against ruined garments.
• Level 3: The Production Shop. If your team complains of wrist fatigue or loading takes longer than 2 minutes per garment, it's time to scale.

For shops wanting productivity without being locked into a single ecosystem, our SEWTECH magnetic hoops/frames (available for both home single-needle and industrial multi-needle machines) offer that critical vertical clamping. They are designed for repeatable speed—essential when you have 50 jackets due by Friday.

The “Hidden Prep” Inside the Jacket: Backing Placement That Prevents Trapped Folds

The video shows cutaway backing placed inside the jacket, under the shell, before hooping. This is the correct approach. Do not "float" backing under the hoop for a job this heavy; it needs to be clamped in the hoop with the garment.

The Goal: A clean sandwich.

• Top: Nylon shell (embroidery surface).
• Middle: Cutaway backing (structural column).
• Bottom: Lining (kept out of the way).

Common Failure Mode: If the backing isn’t held firmly against the shell, the shell slides on top of the stabilizer (this is called "skating"). The result is outlined registration errors.

Prep Checklist: Before You Touch the Start Button

• Fabric Audit: Confirm it is a nylon shell with a separate lining. Shake it out to settle the lining.
• Stabilizer: Place a heavy SHEET of cutaway backing inside the jacket. Do not use scraps.
• Needle: Install a refined 75/11 Sharp needle. Ballpoints can deflect off tight nylon waves; sharps pierce clean.
• Thread Staging: Silver metallic (Thread 1) and White Polyester (Thread 2).
• Hidden Consumables: Have a temporary spray adhesive (light mist) or pins ready if the backing refuses to stay put during loading.
• Safety: Verify you have trimming snips nearby, not giant shears.


Hooping a Nylon Jacket in a Magnetic Frame: The “Wrinkle Pull” Method That Actually Holds

The video’s hooping step is fast, but let’s slow it down. This is the heart of the job.

The Method: Secure the jacket in the magnetic hoop, but don't consider it "done." You must physically pull out wrinkles until the shell is taut, while ensuring the cutaway backing remains positioned inside.

Step-by-Step "Sensory" Hooping

1. Open & Visualize: Unzip the jacket fully. You need a clear line of sight to the inside backing area.
2. The Sandwich: Lay the cutaway backing inside. Smooth it with your hand. It should feel flat, not crumpled.
3. The Mount: Place the jacket on the fixture. If you have a hoop master embroidery hooping station or similar jig, use it to ensure the logo is centered relative to the collar.
4. The Clamp: Drop the top magnet. Listen for the sharp snap. It should sound solid, not muffled by a thick seam.
5. The "Drum Skin" Check: Gently tug the fabric from the edges (North, South, East, West). The fabric inside the hoop should feel like a tuned drum skin—taut, but not stretched to the point of distortion.
6. The Fold Audit: Lift the hoop and look underneath (inside the jacket). Is the lining caught? Is the backing flat? If yes, you are clear for takeoff.


Stabilizer Choice on Nylon: Why Cutaway Beats Tearaway for Jacket Backs

The host is direct: use cutaway instead of tearaway to reduce puckering on nylon. This is an "Industry Constant."

The Why: Nylon is unstable. It stretches. Tearaway stabilizer disintegrates as the needle perforates it. By stitch 10,000, tearaway is just confetti, and your nylon has zero support. Cutaway remains a solid sheet, permanently supporting the stitches against the slippery nature of the shell.

Decision Tree: Choosing Backing for a Nylon Jacket Back

Follow this logic path to determine your stabilizer needs:

• Condition A: Is the fabric slippery/unstable (Nylon, Performance Wear)?
  • YES → Go to B.
  • NO → You might get away with Tearaway (e.g., heavy canvas).
• Condition B: Is the stitch count high (>10,000) or dense (large fills)?
  • YES → MUST USE CUTAWAY. Consider 2 layers of medium weight or 1 layer of heavy weight.
  • NO → (Light outline only) You still should use Cutaway, but one light layer is sufficient.
• Commercial Note: We supply various weights of stabilizer/backing. Don't force one roll to do every job. Using the wrong backing is the #1 cause of puckering that leads to refunds.

Warning: Physical Safety
Embroidery machines are industrial robots. Keep fingers clear of the needle bar during operation. Never reach under the hoop while the machine is running to "fix" a lining loop—pause the machine first.

Metallic Thread First: Running the Silver “X” Without Constant Tension Drama

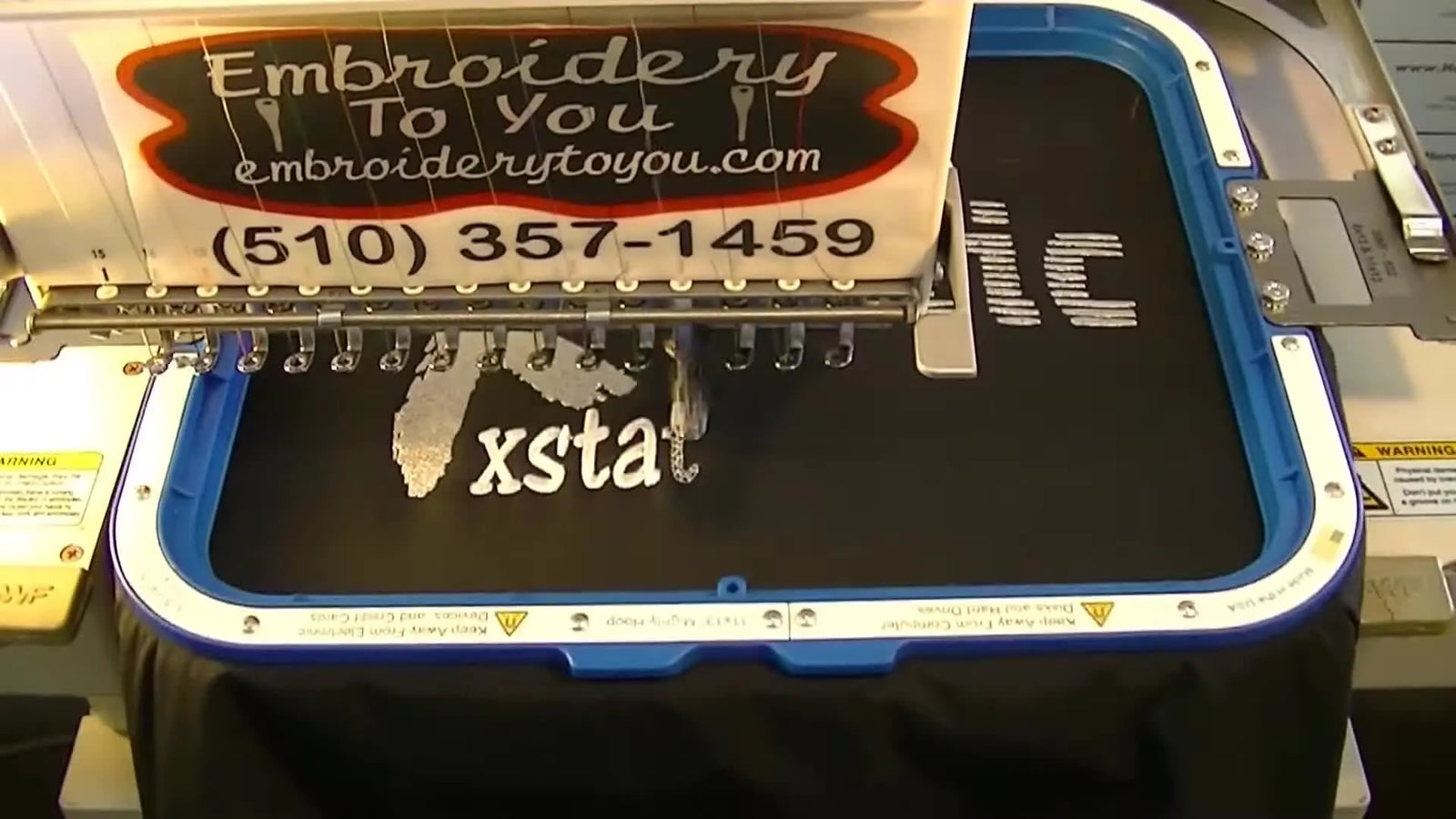

The design begins with a massive Silver Metallic “X”. Metallic thread is beautiful, but it twists, kinks, and breaks if you look at it wrong.

The Secret Weapon: The video mentions magnetic bobbins.

• Why? Standard bobbins change tension as they empty (less weight = less drag). Magnetic bobbins provide constant, consistent drag from start to finish. On a 31,000-stitch design, this consistency is vital.

Sensory Setup for Metallic:

• Touch: Pull the metallic thread through the needle. It should feel smooth, with slightly less tension than standard poly. If it feels like "sawing," loosen the top tension.
• Sight: Watch the thread path. Metallic thread has a "memory." If it coils off the spool, use a thread net to control the flow.


The Settings That Keep This Job Moving: 75/11 Sharp Needle + ~800 RPM

The host calls out specific settings: 75/11 Sharp Needle and 800 RPM on the swf 15 needle embroidery machine.

Empirical Reality Check (The Safety Zone)

To a novice, 800 RPM with metallic thread sounds exciting. To a pro, it sounds risky.

• Expert Zone: 800+ RPM. Possible if your digitizing is perfect and your machine is well-oiled.
• Safe Zone (Newer Users): Start at 600-650 RPM. Metallic thread builds up heat. Heat melts coating. Melted coating snaps thread. Slowing down by 150 RPM adds only a few minutes to the run but can save you 20 minutes of re-threading frustration.

Needle Logic: A 75/11 Sharp is the correct choice. A ballpoint needle (often used for knits) might fail to penetrate the tightly woven nylon shell smoothly, pushing the fabric down instead of piercing it. The sharp point cuts a clean path for the sensitive metallic thread.

White Text + Lots of Trims: How to Survive the “URL Lettering” Phase

After the metallic “X,” the machine switches to white polyester for the URL text. The host notes a painful reality: lots of trims between letters.

The Production Botleneck: Trims take time. The machine slows down, cuts, moves, and starts up. This is also the highest risk moment for thread pull-outs.

The Fix:

1. Don't Fight the Design: As the host says, sometimes trims are necessary for legibility. Don't disable trims to save time if it means 20 minutes of hand-trimming jump stitches later.
2. Immediate Intervention: If a thread breaks during a trim sequence, stop immediately. Back the machine up 10-20 stitches and restart. Do not hope no one notices a missing letter segment.

On a reliable swf machine, the trim mechanism is robust, but keep an eye on your "wiper" or "picker" to ensure it isn't holding onto the tail, which can be sewn into the next letter.

Setup Checklist: The "Pre-Flight" Confirmation

(Do this right before pressing START)

• Hoop Seating: Is the magnetic hoop locked into the pantograph arms? Give it a wiggle check.
• Clearance: Is the sleeves/hood of the jacket folded back and clipped so they don't fall under the needle?
• Needle Check: Is the 75/11 needle actually in the active needle bar (not just in the drawer)?
• Speed Limit: Set max speed to 650-800 RPM based on your confidence level.
• Color Sequence: Verify: Color 1 = Silver Metallic; Color 2 = White Poly.
• Bobbin: Insert a fresh bobbin (preferably magnetic). Do not start a jacket back with a half-empty bobbin.


Finishing Like a Pro: Front Trims, Inside Cutaway Cleanup

The run is done. The finish determines the value.

1. Face Trim: Snip any long tails on the front. Get close, but don't dig into the nylon.
2. The Flip: Turn the jacket inside out.
3. The Cutaway Cut: Using curved scissors, trim the excess stabilizer.
   • Crucial Tip: Leave a reasonable margin (about 0.5 to 1 inch) around the design. Do not cut flush to the stitches. If you cut too close, the stabilizer can pull away, and the design will lose its structure in the first wash. This "halo" of backing is the permanent foundation for the embroidery.


Troubleshooting Nylon Jacket Back Embroidery

If things go wrong, use this prioritized diagnostic table. Start with low-cost fixes.

The Upgrade That Actually Moves the Needle: Scaling Your Business

The host makes a practical point: you can hoop with a regular hoop, but if doing volume, you want magnets.

Business Logic:

• If you are quoting multiple jacket backs per week, your bottleneck is hooping time, not stitching speed.
• If you find yourself rejecting orders because "jackets are too hard," you have a tool problem, not a skill problem.

The SEWTECH Solution Strategy:

1. Stabilize the Process: Start with high-quality magnetic hoops/frames (compatible with Brother, Babylock, Tajima, SWF, etc.). This solves the "hoop burn" and loading speed issue immediately.
2. Scale the Output: If single-needle changes are killing your flow, a basic multi-needle machine allows you to stage colors (like that Silver/White combo) without manual intervention.

Warning: Magnetic Safety
Magnetic frames are incredibly powerful. Keep them away from pacemakers. Do not place fingers between the top and bottom ring—they can pinch severely. Store them away from credit cards and phones.

Operation Checklist: The "In-Flight" Monitor

(Keep an eye on these during the 40-minute run)

• Watch Minute 1: The first 500 stitches reveal if the backing moves. If it shifts, stop and re-hoop.
• Metallic Watch: Listen for "snapping" sounds. If metallic thread shreds, change the needle immediately (it may have developed a burr).
• Trim Watch: During the URL text, ensure the "picker" isn't pulling tails to the top side.
• Heat Watch: If running a long job, pause halfway for 1 minute to let the needle cool down if using metallic thread.


Final Thoughts

If you take only one lesson from this guide, let it be this: Nylon does not forgive sloppy tension.

Smooth hooping against proper cutaway backing, a sharp needle, and a realistic production mindset will keep your jackets looking clean—and your quotes honest.

For those asking about the specific hoop size mentioned: The shop used an 11 by 13 magnetic hoop, a versatile size often compared to the mighty hoop 11x13. This size is the industry "sweet spot" for jacket backs—large enough for a full logo, compact enough to fit between shoulder seams.

Whether you use a generic magnetic frame or a branded hoop master station, the goal is repeatability. (Note: You will often see the spelling hoopmaster in forums; they refer to the same alignment system standards).

Invest in the tools that reduce your stress. A set of magnetic hoops for embroidery machines is often the cheapest way to buy back your own time.

FAQ

• Q: How do I hoop a nylon shell jacket with lining in a magnetic embroidery hoop without trapping the lining fold?
  A: Hoop the nylon shell and cutaway backing together while actively auditing the lining before stitching—this is common and preventable.
  • Open & visualize: Unzip fully so the inside area is visible during loading.
  • Build the sandwich: Place a full sheet of cutaway backing inside the jacket under the shell, then smooth the shell against the backing.
  • Clamp & audit: Clamp the magnetic hoop, then lift and look inside the jacket to confirm the lining is not caught and the backing stayed flat.
  • Success check: The hoop area feels like a tuned drum skin (taut, not stretched), and the clamp “snap” sounds solid (not muffled by a seam).
  • If it still fails… Stop and re-hoop; secure the lining away from the stitch field with clips/tape before restarting.
• Q: What stabilizer should I use for a high-stitch-count nylon jacket back embroidery design to prevent puckering?
  A: Use cutaway backing (not tearaway) for nylon jacket backs, especially for dense or high-stitch-count designs.
  • Choose cutaway: Use one heavy sheet or two medium layers when the design is dense or over 10,000 stitches.
  • Avoid floating: Clamp the backing in the hoop with the garment instead of floating backing underneath.
  • Prep flat: Smooth the backing inside the jacket so the shell cannot “skate” on top of it.
  • Success check: After the first few hundred stitches, the fabric stays flat with no new ripples forming at the edge of the fill.
  • If it still fails… Re-hoop and reassess density/pull compensation in the digitizing (often needed for large fills on slippery nylon).
• Q: What is the best starting needle and speed for running silver metallic thread on an SWF 15-needle embroidery machine for a jacket back?
  A: Start conservatively with a fresh 75/11 sharp needle and a slower speed (around 600–650 RPM) before pushing toward ~800 RPM.
  • Install new needle: Replace with a fresh 75/11 sharp to reduce deflection and shredding on nylon.
  • Reduce speed first: Run metallic slower to limit heat and coating melt, then increase only if stable.
  • Watch the thread path: Control metallic “memory” with a thread net if the thread coils off the spool.
  • Success check: Metallic runs without “snapping” sounds and the stitch surface stays smooth without fraying.
  • If it still fails… Change the needle again (a burr can form quickly) and reassess top tension per the machine manual.
• Q: How do I stop birdnesting (thread wad under the needle plate) on an SWF multi-needle embroidery machine during a jacket back run?
  A: Rethread the entire upper thread path and confirm the thread is actually seated in the tension discs—don’t worry, this is one of the most common causes.
  • Power down/pause safely: Stop the machine and clear the wad before restarting.
  • Rethread completely: Re-thread from spool to needle, ensuring the thread “flosses” into the tension discs.
  • Reset cleanly: Insert a fresh bobbin before restarting a long jacket-back run.
  • Success check: The first stitches form cleanly with no looping underneath and no sudden thread buildup.
  • If it still fails… Escalate to mechanical checks such as rotary hook timing with a technician.
• Q: How do I prevent puckering and ripples on nylon jacket back embroidery caused by hooping tension or the wrong backing?
  A: Re-hoop using cutaway backing and stop pulling the nylon to “extra tight”—nylon remembers distortion after unhooping.
  • Unhoop & reset: Remove the hoop and gently relax/massage the area to remove forced stretch.
  • Re-hoop correctly: Clamp vertically (magnetic hoop helps) and pull wrinkles out from the edges without stretching the grain.
  • Verify backing contact: Ensure the cutaway is firmly against the shell inside the jacket before pressing START.
  • Success check: The hooped area is smooth with no edge “waves,” and the fabric is taut but not distorted.
  • If it still fails… Consider digitizing changes (lower density/more pull compensation) for large fills on nylon.
• Q: What pre-flight checklist items prevent ruined nylon jacket backs on an SWF 15-needle embroidery machine before pressing START?
  A: Do a fast “pre-flight” to prevent the two biggest losses—mis-hooping and mid-run consumable failure.
  • Confirm hoop seating: Wiggle-check the magnetic hoop is locked into the pantograph arms.
  • Control garment clearance: Clip/fold sleeves and hood so nothing can fall under the needle area.
  • Verify needle & colors: Confirm the 75/11 sharp is installed in the active needle bar and the color order is metallic first, then white poly.
  • Start with a fresh bobbin: Don’t begin a jacket back with a half-empty bobbin (consistent bobbin drag helps long runs).
  • Success check: The first 500 stitches run without backing shift and without abnormal thread sounds.
  • If it still fails… Stop immediately and re-hoop; early stitch behavior is the best indicator of a setup problem.
• Q: What are the essential safety rules when using magnetic embroidery hoops/frames and running a multi-needle embroidery machine on jacket backs?
  A: Treat the machine like an industrial robot and treat magnetic hoops like pinch hazards—pause first, then fix.
  • Keep hands clear: Never reach under the hoop or near the needle bar while the machine is running; pause before touching anything.
  • Prevent pinches: Keep fingers out from between the top and bottom rings when closing magnetic hoops.
  • Protect medical/electronics: Keep magnetic hoops away from pacemakers, credit cards, and phones.
  • Success check: The hoop can be handled and seated without finger contact in pinch zones, and no mid-run “quick fixes” are attempted under motion.
  • If it still fails… Stop the job and reset the workspace layout so tools/clips are within reach without reaching into the sewing field.
