How to Master Historic Blackwork on Modern Machines: A Cosplayer’s Survival Guide to the “Sister of Battle” Tunic

Cosplay manufacturing is a brutal teacher. It’s fun until you realize the linen you spent $50 on has “hoop burn” marks that won’t iron out, or your intricate blackwork embroidery turns your tunic into a stiff, unwearable board.

I have spent twenty years on factory floors and in costume shops, and I’ve seen the same story play out: a maker builds a gorgeous digital file, but the physical reality of thread tension and fabric physics ruins the final piece.

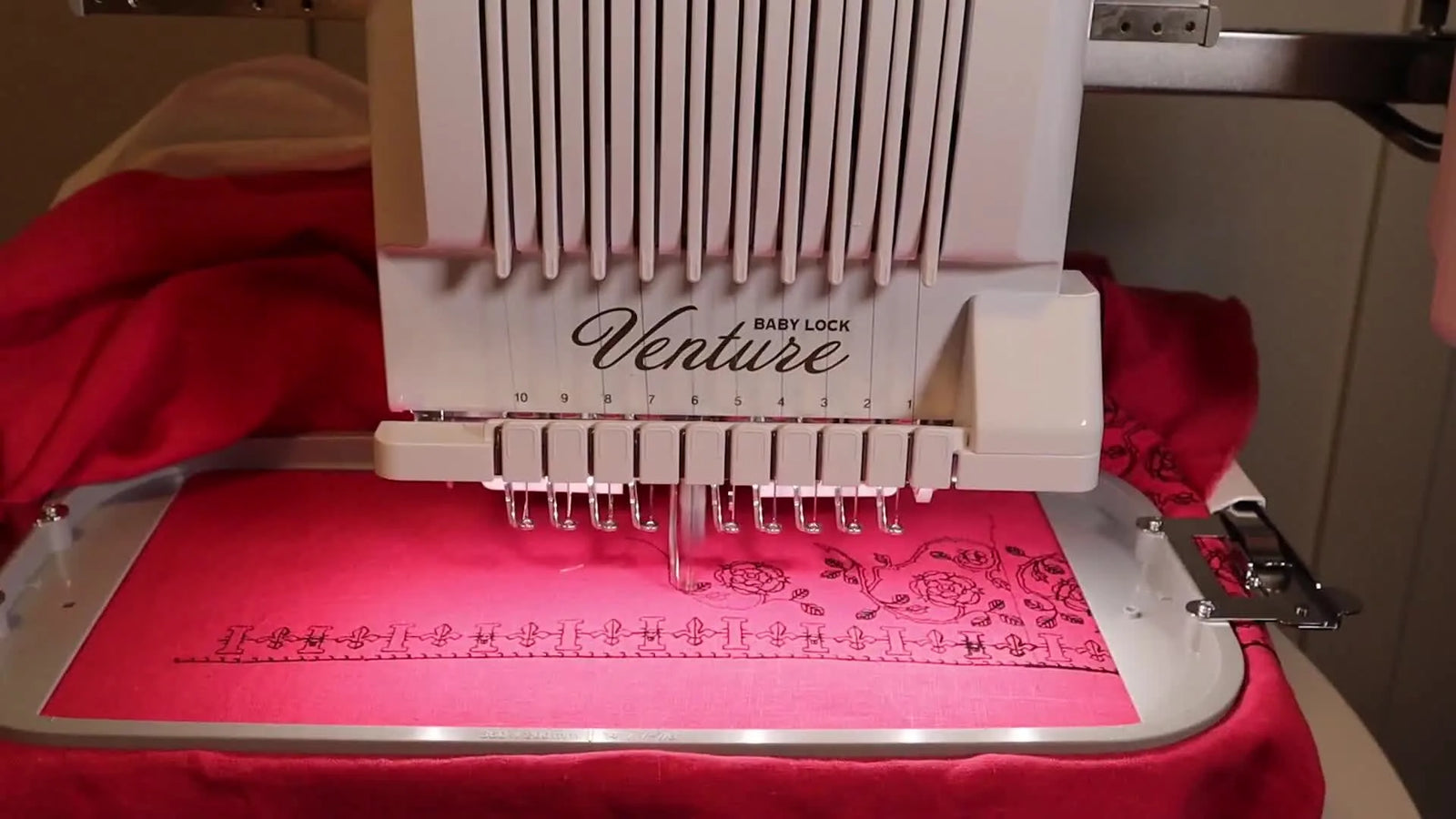

This guide analyzes a specific, high-level project—a Warhammer 40k Sister of Battle–inspired tunic—and breaks it down into a shop-ready workflow. We will bridge the gap between "historic-looking" aesthetics and modern efficiency using tools like Baby Lock Palette 11 and the Baby Lock Venture.

But more importantly, we are going to focus on the "Invisible Mechanics": the tension, the hooping pressure, and the stabilizer choices that ensure your tunic flows like fabric, not cardboard.

1. Digitizing Logic: Defeating “Thin Thread Syndrome” in Baby Lock Palette 11

The first failure point usually happens before the machine even starts. Historic hand embroidery uses thick silk or wool thread. Modern machine embroidery thread (usually 40wt polyester or rayon) is much thinner and flatter. If you simply digitize a single running stitch, your design will look anemic and disappear into the texture of the linen.

The video demonstrates a crucial fix in Baby Lock Palette 11: The Triple Run.

By programming the machine to trace the graph-paper pattern three times (forward-back-forward) over the exact same path, you artificially create the volume of hand stitching.

The “Digitizer’s Sweet Spot” Settings:

• Stitch Style: Triple Run (Bean Stitch).
• Stitch Length: 2.5mm to 3.0mm. Expert Note: Don’t go lower than 2.0mm on a triple run, or you risk hammering a hole in the linen.
• Pathing: Continuous line. Minimize jumps and trims to keep the back clean.

Visual Check: Zoom in on your screen. If the line looks like a single pixel width, it will vanish on fabric. It needs to look bold.

This consistency is vital. If you are building a professional workflow, perhaps integrating a hooping station for embroidery machine later on, your digital file must be robust enough to withstand slight alignment variances without looking messy.

2. Hooping Strategy: The Mechanics of Stabilizing Linen Without "The Crunch"

Linen is a deceptive fabric. It feels sturdy, but it distorts on the bias (diagonal stretch) instantly. The video uses a starch-based water-soluble stabilizer hooped with the pink linen.

Why This Combination?

• Water-Soluble: It vanishes completely later, leaving the linen soft (drape is critical for tunics).
• Starch-Based (Fibrous): Unlike clear plastic films (Solvy), fibrous water-soluble stabilizer acts like a fabric, gripping the linen and preventing shifting.

The "Hoop Burn" Danger Zone

Here is the friction point where most beginners cry. To get linen tight in a standard friction hoop, you have to crank the screw and push the inner ring hard.

1. The Risk: This crushes the linen fibers, creating a permanent shiny ring or "hoop burn" that steam cannot remove.
2. The Physical Toll: Doing this for 10+ panels ruins your wrists.

The Professional Solution: If you encounter this issue, stop forcing the standard hoop. This is the specific scenario where a magnetic embroidery hoop changes the game. Magnetic hoops use vertical clamping force rather than friction. They hold the linen firmly without crushing the fibers’ soul, and they allow you to make micro-adjustments to the grainline without un-hooping the whole sandwich.

Warning: Machine Safety Alert. Keep hands, loose sleeves, and dangling measuring tapes at least 6 inches away from the needle bar area while the Baby Lock Venture is stitching. 10-needle machines move laterally at high speeds (up to 1000 SPM). A distraction here can lead to a needle strike or a finger injury.

Prep Checklist: The "Pre-Flight" Inspection

• Needle Check: Install a Fresh 75/11 Sharp Needle. Do not use Ballpoint (for knits) or Universal (too dull) on linen; they will punch raggy holes.
• Consumable Check: ensure you have enough fibrous water-soluble stabilizer. Do not use "tear-away" or "cut-away" unless you want the inside of your shirt to feel like scratchy paper.
• Bobbin Case Hygiene: Remove the bobbin case and blow out any lint. A triple-run stitch generates 3x the lint, which causes tension spikes.
• Thread Mapping: Set your machine to "Single Color" or "Monochrome" mode if doing blackwork to avoid unnecessary stops.

3. The "Double-Sided" Illusion: Tension Physics for Reversible Stitches

The goal is a tunic that looks good when the wind blows the hem open. The video achieves this by using Black Top Thread + Black Bobbin Thread.

Normally, machines are calibrated for a 70/30 ratio (70% top thread on top, 30% bobbin thread on bottom). If you use a white bobbin, you will see little white "knots" on the back. By switching to black bobbin thread, you hide the mechanics.

The "H-Test" for Tension Calibration

Before stitching the real garment, run a satin column that looks like the letter "H" on a scrap of your linen/stabilizer sandwich.

1. Look at the back: If the column is loose or loopy, tighten the top tension.
2. Pull Test: Pull the top thread from the needle eye (manual mode). It should feel like pulling dental floss through teeth—resistance, but smooth. If it snaps, it's too tight.
3. Auditory Check: The machine should make a rhythmic thump-thump-thump. A high-pitched click-click-click often indicates the needle is hitting the needle plate or the timing is off.

For those running production, this is where the consistency of embroidery magnetic hoops shines. Standard hoops can loosen as the machine vibrates, causing the fabric to "flag" (bounce up and down), which ruins your tension balance. Magnetic grip remains constant from stitch 1 to stitch 10,000.

4. The Chemistry of Rinsing: Don't Trust Your Eyes

The video highlights a critical chemical reality: Starch-based stabilizer is sticky.

The Rookie Mistake: You rinse the fabric under the tap until the white stabilizer disappears. You dry it. The fabric is now stiff as cardboard. The Reason: You dissolved the stabilizer, but the starch water re-dried into the linen fibers.

The 3-Stage Rinse Protocol

1. Bulk Dissolve: Soak in warm water until the sheet melts.
2. Agitation Wash: Run through a washing machine cycle (no detergent needed yet) to flush the starch out of the fibers.
3. The "Crunch" Test: Let it dry. Rub the fabric against your cheek. If it feels stiff or makes a paper-like crinkle sound, rinse it again.

Do not press (iron) the fabric until you are 100% sure the stabilizer is gone. Heat sets the starch, turning your embroidery into a permanent stiffener.

5. Structural Engineering: The Neck Slit and Gussets

Historical patterns rely on geometry, not stretch. A slit neckline on a non-stretch linen tunic creates a massive stress point at the bottom of the V. One wrong move while putting it on, and rip.

The Video’s Solution: The Triangular Gusset. This is an engineering bypass. By inserting small triangular wedges at the bottom of the slit, you distribute the tension.

The "Grainline" Rule: The video wisely cuts the slit on the straight grain (parallel to the selvage).

• Physical Reason: The straight grain is the strongest part of the weave. If you cut the slit on a slight angle, the fabric will warp and fray uncontrollably during the wash.


6. Collar & Sleeve Assembly: Comfort vs. Accuracy

The collar is where "Home Made" often separates from "Hand Made." The video uses a whip stitch to close the collar, keeping the raw edges inside.

Mobility Hack: The Armhole Gusset Cosplay isn't static; you have to pose, drive, and maybe fight heretics. The video adds a 5x5 inch square gusset under the arm.

• Why: Linen has zero elasticity. Without a gusset, raising your arm pulls the entire tunic up, choking you at the waist or neck.

The Repetition Trap

If you are making this tunic for a squad, or if you failed the first time and are re-doing a panel, alignment becomes your enemy. Manually marking and hooping sleeves to get parallel gathers is tedious. In a production environment, professionals use a hoop master embroidery hooping station to ensure that the embroidery lands in the exact same spot on the Left Sleeve as the Right Sleeve. It eliminates the "measure twice, swear once" cycle.

Setup Checklist: The Garment Assembly Phase

• The Slit Check: Stay-stitch (straight stitch) around the future neck slit line before you cut it. This locks the fibers.
• Gusset Orientation: Ensure the grainline of your gusset runs vertically to match the body, or on the bias for maximum stretch (decision depends on fabric weight).
• Ironing hygiene: Check your iron's soleplate. Any residue from the stabilizer will transfer to the expensive linen. Clean it while cold.


7. Finishing: Strength Standards for Seams

The video mentions "8 to 12 stitches per inch" for hand sewing. Let's translate that to machine standards.

• Machine Translation: Stitch Length 2.0mm to 2.5mm for structural seams.
• Felled Seams: The video uses felled seams (interlocking raw edges). This is mandatory for unlined linen. Serging (overlocking) looks modern and can chafe. Felled seams lie flat and are bombproof.


8. Trimming: The Surgeon's Hand

The video uses a "stem stitch" outline as a cutting guide. This is brilliant, but dangerous. Technique:

1. Use Duckbill Appliqué Scissors or double-curved embroidery scissors.
2. Rest the "bill" or curve flat against the embroidery threads.
3. Cut the fabric away from the stitching.

Mental Anchor: Don’t look at the blade tips; look at the space between the blade and the thread. You need a 1mm safety buffer.

9. The Commercial Upgrade: From "One-Off" to "Workflow"

If you successfully build this tunic, you will feel two things: pride in the result, and exhaustion from the process.

Cosplay manufacturing faces a bottleneck problem.

• Level 1 (Hobby): You use standard hoops. You fight the screws. You accept some hoop burn. You trim jump stitches manually.
• Level 2 (Pro-Am): You realize your time is worth money. You switch to standardizing your tools.

The Soft-Sell Logic (When to Upgrade):

• Scenario A: Your fingers hurt, or you can't get thick seams into the hoop.
  • Solution: Magnetic Hoops. They snap on. They handle thick layers (like gusset seams) that screw-hoops reject.
• Scenario B: You want to sell these tunics.
  • Solution: Re-hooping linen takes 4 minutes per frame with standard hoops. It takes 30 seconds with a magnetic hoops for babylock embroidery machines system. Over a 50-piece run, that is hours of profit reclamation.

And if you find yourself constantly changing thread colors or needing faster output, moving from a single-needle to a multi-needle platform (like the reliable workhorses from SEWTECH or the Baby Lock Venture) is the natural evolution.

Decision Tree: Stabilizer & Hooping Method

Use this to determine your setup before cutting expensive linen.

Step 1: Fabric Stability

• Is the fabric loose weave or slippery?
  • Yes: Use heavy Starch-Based Water Soluble + Spray Adhesive.
  • No (Sturdy Linen): Use standard Starch-Based Water Soluble.

Step 2: Hooping Method

• Do you have high hand strength & patience?
  • Yes: Standard hoop is acceptable. Watch for distortion.
  • No (or doing bulk): Use a babylock magnetic embroidery hoops setup. This protects fabric from burn and wrists from strain.

Step 3: The Reversibility Requirement

• Must the back look clean?
  • Yes: Match Bobbin Thread Color + Triple Run Stitch.
  • No: Standard White Bobbin (saves money).


Troubleshooting: The "Why is this happening?" Guide

Warning: Magnetic Safety. High-strength magnetic frames (like those used for industrial embroidery) pack serious force using neodymium magnets. They can pinch skin severely and may interfere with pacemakers. Keep them away from children, credit cards, and sensitive electronics.

Final Thoughts: The Gap Between Costume and Garment

The difference between a costume that lasts one convention and a garment that lasts a lifetime is process control.

By adopting the triple-run stitch, mastering the water-soluble stabilizer rinse, and possibly upgrading your clamping method to magnetic systems, you stop fighting the materials and start commanding them.

Operation Checklist: During the Stitch

• Watch the Feed: Ensure the linen isn't pooling under the needle bar (or getting stitched to itself).
• Listen to the Rhythm: A change in sound usually means a dull needle or a thread shredding. Stop immediately.
• Bobbin Alert: On a multi-needle machine, check your bobbin status before starting a long 20,000-stitch block.
• Color Match: Verify you have the black bobbin loaded before hitting start on the reversable sections.


Whether you are using a standard machine embroidery hoops setup or a high-end magnetic system, the physics remain the same: Stability + Digitizing Logic = Quality. Now, go make something that the Emperor (or at least your cosplay judge) would be proud of.

FAQ

• Q: What Baby Lock Palette 11 settings prevent “thin thread syndrome” when digitizing historic blackwork on linen?
  A: Use a Triple Run (Bean Stitch) with a 2.5–3.0 mm stitch length to build visual thickness with 40wt thread.
  • Set stitch style to Triple Run (Bean Stitch) and keep the pathing as one continuous line to reduce jumps/trims.
  • Keep stitch length at 2.5–3.0 mm; avoid going below 2.0 mm on a triple run to reduce the risk of hammering holes in linen.
  • Zoom in on-screen and confirm the line looks bold, not like a single-pixel hairline.
  • Success check: On a test stitch-out, the blackwork line reads clearly from normal viewing distance and does not visually “disappear” into linen texture.
  • If it still fails: Re-check stitch length and reduce unnecessary trims/jumps that can break the line’s visual continuity.
• Q: How do I hoop linen for blackwork embroidery on a Baby Lock Venture without getting permanent hoop burn from a standard screw hoop?
  A: Stop over-tightening the screw hoop; use fibrous starch-based water-soluble stabilizer and avoid crushing the linen fibers.
  • Hoop the pink linen together with a fibrous, starch-based water-soluble stabilizer (fabric-like, not clear plastic film).
  • Reduce aggressive screw pressure; aim for stable support without forcing the inner ring hard enough to shine or crush the weave.
  • Consider switching to a magnetic embroidery hoop if standard hooping requires excessive force or leaves shiny rings.
  • Success check: After unhooping, the linen shows no permanent shiny ring and the grainline remains square (no diagonal distortion).
  • If it still fails: Change the hooping method (magnetic clamping) to hold firmly without friction burn and allow micro-adjustments.
• Q: How can I calibrate embroidery tension on a Baby Lock Venture to create a clean “double-sided” blackwork look using black top thread and black bobbin thread?
  A: Run the H-test on scrap and adjust top tension until the stitch balance is stable and the back is clean-looking.
  • Stitch an “H”-shaped satin column on the same linen + stabilizer sandwich used for the garment.
  • Inspect the back: if the column is loose/loopy, tighten top tension; if tension feels extreme, ease off to avoid snapping.
  • Do a manual pull test at the needle eye: the thread should pull with smooth resistance (like dental floss), not jerk or snap.
  • Success check: The machine sound stays rhythmic (steady “thump-thump”), and the back does not show obvious bobbin loops or messy imbalance.
  • If it still fails: Stop and investigate needle/plate contact if a sharp “click-click” appears, and re-test before stitching the real panel.
• Q: Why does linen feel stiff and crunchy after rinsing starch-based water-soluble stabilizer from machine embroidery, and how do I fix the residue?
  A: The stabilizer dissolved but re-dried into the fibers; use the 3-stage rinse protocol before any ironing.
  • Soak in warm water until the stabilizer sheet fully melts (bulk dissolve).
  • Run an agitation wash cycle to flush starch out of the linen fibers (do not rely on a quick sink rinse).
  • Air-dry and do the “crunch” test; re-rinse if stiffness remains.
  • Success check: When dry, the linen feels soft and flexible and does not make a paper-like crinkle when rubbed against the cheek.
  • If it still fails: Repeat the wash/agitation step again and do not press with heat until the fabric passes the crunch test.
• Q: What causes puckering around blackwork embroidery on linen when stitching on a Baby Lock Venture, and what is the fastest fix?
  A: Puckering usually comes from loose hooping or stabilizer that is too light; reshape with steam and upgrade stabilization for the next run.
  • Steam press and block the panel back into shape while slightly damp to relax distortion.
  • Rebuild the sandwich using a fibrous starch-based water-soluble stabilizer that grips linen and reduces shifting.
  • Use a hooping method that maintains constant hold; magnetic hoops can help prevent loosening and fabric “flagging.”
  • Success check: After pressing/blocking, the embroidery area lies flat with the surrounding linen, without ripples radiating from the stitch field.
  • If it still fails: Re-test on scrap and re-check hoop stability during stitching (watch for fabric bounce/flagging).
• Q: What is the machine safety rule for operating a Baby Lock Venture 10-needle embroidery machine while stitching long blackwork runs?
  A: Keep hands, sleeves, and dangling tools at least 6 inches away from the needle bar area during stitching to avoid needle strikes.
  • Clear measuring tapes, long sleeves, and any loose items before pressing start.
  • Stay focused during high-speed lateral movement and stop the machine before reaching into the stitching zone.
  • Monitor the stitch area without hovering hands near the needle path.
  • Success check: The operator never reaches into the active needle bar zone while the machine is running, and there are no near-miss needle strikes.
  • If it still fails: Slow down the workflow—pause/stop before any adjustment, and reposition tools so nothing can swing into the needle area.
• Q: What are the magnetic hoop safety risks with industrial-strength neodymium magnetic embroidery frames, and how do I handle them safely?
  A: Treat magnetic frames as pinch hazards and keep them away from pacemakers, children, cards, and sensitive electronics.
  • Separate and close the frame deliberately to avoid skin pinches from sudden snap force.
  • Keep magnetic frames away from children and store them where they cannot slam together unexpectedly.
  • Keep magnetic frames away from pacemakers and away from credit cards and sensitive electronics.
  • Success check: No pinched fingers during closing, and the frames are handled with controlled placement rather than “letting them snap.”
  • If it still fails: Change the handling routine—use a two-hand controlled close and set up a clear, dedicated hooping area with no bystanders.
