Side Hat Embroidery That Stays Straight: Ricoma MT-1501 + Gen 2 Cap Station Workflow (No More Crooked Mesh Logos)

Side-panel embroidery on trucker hats is where a lot of otherwise-solid shops get humbled. The front panel is structured, predictable, and forgiving; the side mesh is curved, springy, and eager to drift the moment you clamp it wrong. You think you have it tight, but halfway through the run, the registration shifts, and your font starts looking like italicized spaghetti.

If you’ve ever pulled a hat off the machine and felt your stomach drop because the logo is leaning, you’re not alone. This is not a personal failure; it is a physics problem. Mesh is an unstable grid, and standard hoops struggle to grip it evenly.

The good news: the workflow analysis based on industry best practices reveals that success isn’t about luck. It is about controlling the fabric’s shape before the first stitch.

The “Don’t Panic” Reality Check: Side Mesh Hat Embroidery Is Hard Because the Hat Is Fighting You

Side embroidery fails for two specific mechanical reasons that do not manifest on flat garments or structured hat fronts:

1. Curvature + Clamp Pressure: The mesh panel is a convex curve. When a flat clamp applies pressure, the mesh wants to buckle or "flag" (move up and down).
2. Optical Illusions: Alignment references are weak on mesh. Your eyes naturally want to follow the grid lines of the mesh or the bottom seam, but these are often sewn imperfectly at the hat factory. If you align to a crooked seam, your perfect embroidery will look crooked to the customer.

Joe’s method works because it introduces two "Variables of Control": a repeatable alignment reference (a chalk center line) and a repeatable clamping surface (keeping the sweatband tucked).

If you’re running a commercial workflow, mastering this placement is what separates "I can stitch a hat" from "I can charge a premium for custom side-branding."

The Gear That Actually Matters: Ricoma MT-1501, Gen 2 Cap Station, and the Small Tools That Prevent Rework

To replicate professional results, you need a baseline setup. While the video features a Ricoma MT-1501 with a Gen 2 Cap Station (a cylinder-style station common in industrial settings), the principles apply to any machine using a 270-degree cap system.

However, hardware alone doesn't save you. You need the "Hidden Consumables"—the small items that pros use to prevent disaster.

The Essential Loadout:

• Machine: Ricoma MT-1501 (or equivalent SEWTECH multi-needle machine).
• Fixture: Gen 2 Cap Station + Cap Driver.
• Needles: 75/11 Ballpoint. Expert Note: Sharp needles can sometimes cut the mesh strands, creating holes. Ballpoints glide between the grid.
• Backing: Tear-away backing (pre-cut strips, approx 4" x 12").
• Marking: White chalk pen (dissolves with water).
• Finishing: Lighters, scissors, and a wet rag.

Commercial Insight: You will see people attempting side logos with standard flat frames. While possible, it is slow and risky. If you are building a business, you need the specialized curvature of a cap station. As noted in the community, as long as the design fits within the frame limits (usually 2 inches tall by 3-4 inches wide for sides), the machine doesn't "know" it's doing a side—it just follows coordinates.

The “Hidden” Prep That Makes the Whole Job Easier: Backing Control on the Gen 2 Cylinder Station

The first smart move happens before the hat even touches the station. Proper backing management is 90% of the battle against "flagging" (when the fabric bounces during stitching).

Joe uses a long strip of tear-away backing and slides it into the retention clips on the side of the Gen 2 cylinder station.

Sensory Check (The "Snap"): When you slide the backing into the clips, it should be taut. You want to hear a crisp paper sound when you tap it, not a dull thud. If the backing is loose, it will bunch up under the hat, creating a lump that ruins the registration.

Why not Cutaway? For side mesh, heavy cutaway is often visible through the holes and hard to trim cleanly. High-quality, stiff tear-away provides enough stability for small side logos without the cleanup headache.

Prep Checklist (do this before you touch the hat)

• Base Stability: Confirm your clamp station is mounted tight to the table (no wobble).
• Backing Tension: Insert a long tear-away strip into retention clips; tap it to ensure it sounds like a drum, not a loose sheet.
• Needle Check: Ensure your machine has fresh needles (no burrs). A burred needle on mesh causes immediate thread breaks.
• Tool Staging: Keep scissors and a lighter within arm's reach for post-run sequencing.
• Hygiene: Have a damp rag ready—chalk dust can transfer to dark hats easily.

The Chalk-Line Trick: Marking the Side Panel Center Without Overthinking the Mesh Stripes

Joe eyeballs the center of the mesh panel and draws a vertical line with a white chalk pen. This seems rudimentary, but it is genius in its simplicity.

The "Visual Anchor" Principle: Mesh lines are unreliable. They curve and wrap. By drawing a heavy white chalk line, you override the confusing visual data of the mesh and give yourself a clear, single target to align with the clamp’s metal index point.

Expert Q&A: "Should I align with the mesh stripes?" Answer: No. Always align to the structure of the hat (the distance between the bill and the snapback). Mesh stripes are often sewn crookedly at the factory. If you align to the stripe, the logo will look tilted when worn. The customer’s placement requirement beats the mesh’s visual pattern.

Pro Tip: Recap your chalk pen immediately. A dried-out marker leads to faint lines, which leads to squinting and errors.

The Sweatband-Left-In Method: The Fastest Way to Stop Crooked Side Hat Embroidery on Mesh

This is the "secret" that makes the whole workflow consistent.

Joe leaves the sweatband tucked inside the hat instead of flipping it out.

The Physics of the "Buffer Zone":

1. Gap Filling: The connection point between the mesh and the bill is often thick and bulky.
2. Even Pressure: If you flip the band out, the metal clamp presses directly against the slippery, uneven mesh.
3. The Fix: By keeping the sweatband inside, you create a uniform, cushioned layer between the clamp’s cylinder and the hat. This allows the rubber bushings of the clamp to bite down evenly across the entire surface.

Commercial Warning: This technique means you might stitch through the sweatband. This is standard in retail (look at high-end branded hats), but you must get customer approval.

Warning: Pinch Hazard. Keep your fingers clear of the clamp’s hinge points. When that toggle locks over the sweatband, it exerts significant force. Never "test-tighten" while your hand is supporting the hat from the inside-under.

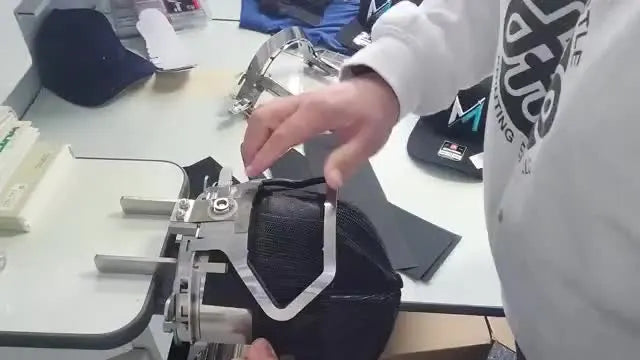

Clamp Alignment That Doesn’t Drift: Match the Chalk Line to the Frame Notch, Then Pull-Test It Like You Mean It

This is the moment of truth. If the hat moves here, it's game over.

1. Slide & Center: Slide the hat onto the cylinder. Align your white chalk line with the clamp’s center notch / index tab.
2. The "Bushings" Check: Ensure the metal band is sitting on the hat material, not slipping off the edge.
3. Tighten: Turn the adjustment knob (Right is Tighter).
4. Lock: Engage the toggle clamp.
5. The Tactile Verification: Pull on both sides of the hat.

The "Floss" Expectation: When you tug on the side of the hat after clamping, it should feel immovable. If it slides even a millimeter, your tension is too loose. Tighten the knob and reclamp. It should feel as tight as a drum skin.

If you are searching for a repeatable workflow around a hooping station for machine embroidery, this tactile "pull-test" validation is what ensures you don't waste money on ruined hats.

Setup Checklist (before loading the machine)

• Visual Lock: Chalk center line perfectly bisects the clamp’s center index.
• Cushion Check: Sweatband is tucked inside cleanly (no folds or lumps).
• Backing Integrity: Backing has not slipped out of the retention clips.
• Security Check: Adjustment knob is tight; toggle is locked.
• Stress Test: You have yanked the hat left and right, and it did not move.

The “Click” Test and the Trace Ritual: Loading the Cap Driver on a Ricoma MT-1501 Without a Surprise Strike

At the machine, Joe mounts the clamped hat onto the driver bars.

Sensory Anchor (Auditory): You must hear a distinct metallic "CLICK." If you don't hear the click, the frame is not locked. A floating frame will fly off at 800 RPM and smash your needle bar.

The Collision Trace: Tracing on a side panel is terrifying because you are inches away from the steel cap ears and the bill.

1. Enter "Trace" mode on your panel.
2. Watch the needle (Needle 1 usually).
3. Ensure the presser foot does not hit the plastic clamp or the bill.

If you are running a ricoma mt 1501 embroidery machine, utilize the laser trace if available, but trust the physical needle drop more. A trace is not just checking placement—it is a survival check for your machine.

Backing + Mesh: A Simple Decision Tree for Tear-Away vs Topping (and Why Some Brands Pucker)

New operators often ask: "Why is my mesh puckering?" The answer is usually infinite variables in hat quality. Here is a decision matrix to simplify your life.

Decision Tree: Stabilizer Strategy for Side Mesh

• Scenario A: Stiff Mesh (e.g., Richardson 112, Yupoong Classics)
  • Action: Use 1 layer of Tear-Away Backing.
  • Why: The mesh structure is rigid enough to support the stitches with minimal help.
• Scenario B: Soft/Stretch Mesh (e.g., Unbranded promotional hats)
  • Action: 1 layer Tear-Away Backing + 1 layer Water Soluble Topping (Solvy).
  • Why: The topping sits on top of the mesh, preventing the stitches from sinking into the holes and distorting the flexible grid.
• Scenario C: High Density Design (Complex Logos)
  • Action: 2 layers of Tear-Away (Crossed).
  • Why: High stitch counts exert massive pull force. One layer will perforate and fail. Two layers provide a "plywood" effect of strength.
• Speed Settings Advice:
  • Beginner Sweet Spot: 600 - 700 SPM (Stitches Per Minute).
  • Expert: 850+ SPM.
  • Why: Mesh vibrates. Slowing down reduces the vibration and results in crisper text.

If you are comparing hooping stations for difficult hats, remember that a good station can't fix bad stabilization. You must pair the hardware with the right backing.

Make Side Logos Comfortable: Reducing Scratchiness for Sensitive Customers Without Rebuilding the Design

A common complaint with trucker hats is the "scratch factor." The back of an embroidery design is a knotty mess of bobbin thread and stabilizer that rubs against the scalp.

The "Cloud Cover" Upsell: Joe’s shop fix is to use a polyester weave fusible backing (often called Cloud Cover or Tender Touch).

• Process: After embroidery, cut a piece of fusible backing slightly larger than the design. Iron it over the back of the stitches inside the hat.
• Result: A smooth, permanent seal that prevents itching.

This isn't just a fix; it's a feature. Market this as a "Premium Comfort Finish." If you are already handling hooping for embroidery machine tasks for sports teams, this upgrade reduces returns dramatically.

Run the Stitchout, Then Finish Like a Pro: Tear Away, Trim, Heat-Seal, and Remove the Mark

The run is done when the machine beeps, but the quality is determined by the finishing.

1. Unclamp: Remove from the driver first, then the station.
2. Tear: Support the stitches with your thumb and tear the backing away. Sound Check: A sharp ripping sound suggests good perforation.
3. Trim: Use curved snips to cut jump stitches. Do not pull them.
4. Heat-Seal: Use a lighter to shrink any polyester thread fuzz.

The Fire Safety Protocol: Polyester melts. Mesh melts.

• Technique: Keep the flame blue (base) and moving constantly. Never hold it in one spot.
• Prevention: Do not use a lighter if you used spray adhesive recently (flammable).

Warning: Fire Risk. Synthetic mesh (plastic) melts instantly. Keep the lighter at least 1 inch away from the surface. A 1-second mistake can melt a hole in the mesh, ruining the hat instantly.

Operation Checklist (your “no-regrets” finish)

• Completion: Machine signaled 100% complete (don't Unhook early!).
• Gentle Tear: Backing removed without distorting the mesh grid.
• Trim: Jump stitches cut flush (clean visuals).
• Heat Pass: Quick pass with lighter (no scorching).
• Hygiene: Chalk mark completely wiped away with damp rag.

The Mockup Rule That Saves Your Reputation: Get Approval Before You Stitch Through the Sweatband

A viewer asked: "Do customers care if you sew through the sweatband?" Joe’s answer: "I've never had a complaint."

However, Silence ≠ Permission.

In the professional sector, we use the "Proof of Concept" rule:

1. Digital Mockup: Show the placement relative to the ear.
2. Explicit Warning: "Note: Stitching will be visible on the interior sweatband."
3. Approval: Get a signature or email confirmation.

This protects you. Customers often underestimate how low a side logo sits. If they see the stitching inside after delivery, they might complain. If they agreed to it beforehand, it's a feature.

When to Upgrade Your Workflow: Magnetic Hoops, Multi-Needle Capacity, and the Real Cost of Fighting Hats

If you are doing one hat a week, manual clamping is fine. If you are doing 50 hats a day, manual clamping is a ticket to Carpal Tunnel Syndrome and lost profits.

The "Pain Point" Upgrade Path:

• Pain Point: "My wrists hurt from tightening clamps" OR "I have hoop burn marks on the brim."
  • Solution Level 2 (Tools): Magnetic Hoops.
  • Why: Magnetic frames use powerful magnets to snap the hat into place instantly. No screwing, no tightening, no uneven pressure marks. They reduce "hooping time" by 40%.
  • Context: Terms like ricoma embroidery hoops often lead professionals to discover universal magnetic solutions that fit their machines.
• Pain Point: "I'm turning away orders because I can't stitch fast enough."
  • Solution Level 3 (Capacity): SEWTECH Multi-Needle Machines.
  • Why: Single-needle machines require a thread change for every color. Multi-needle machines (like the 15-needle setup in the video) run automatically. Combined with a larger sewing field and faster motors, you can scale from 10 hats/day to 100 hats/day.

When evaluating ricoma embroidery hoops or third-party magnetic options, always verify the "holding force"—mesh requires strong magnets to prevent slipping.

Warning: Magnetic Safety. Industrial embroidery magnets are incredibly powerful. They can pinch skin severely (blood blisters). Keep away from pacemakers. Do not place near credit cards or phone screens.

Quick Answers to the Most Common Comment Questions (So You Don’t Lose an Hour)

Q: "Do I need to change machine parameters (Speed/Acceleration) for the side?" A: Generally, no. However, limiting speed to 700 SPM is the best "software fix" for mechanical vibration issues on mesh.

Q: "Can I run the front logo and side logo in one hoop?" A: Technically yes, practically no. To get the side logo low enough (which looks cool), you need the specific angle of a side-clamp. Doing it all in one "Ear-to-Ear" run usually forces the side logo too high up the crown.

Q: "How do I turn off the Ricoma CHT2-1506?" A: Use the main breaker switch on the back. Industrial machines rarely have front "sleep" buttons.

Q: "Where do I find these specific clamps?" A: Look for "Gen 2 Cap Station" or search for compatible cap hoop for embroidery machine accessories for your specific model.

The Last “Old-Hand” Tip: Consistency Beats Cleverness on Hat Sides

Side hat embroidery rewards boring discipline:

1. Use the Long Backing Strip method.
2. Draw the Chalk Line.
3. Keep the Sweatband In.
4. Perform the Pull Test.

Do not skip a step because you are "in a rush." The time it takes to pick out stitches from a ruined mesh hat is 100x longer than the time it takes to clamp it correctly.

If you are currently building a workflow around an embroidery hooping station, make this your mantra: If it moves in the hoop, it fails on the machine. Clamp it tight, run it slow, and ship it with confidence.

FAQ

• Q: Which needle type should be used for side mesh embroidery on a trucker hat to avoid cutting holes in the mesh?
  A: Use a 75/11 ballpoint needle for side mesh trucker hat embroidery to reduce the risk of cutting mesh strands.
  • Install: Replace any needle that is dull or has burrs before the run.
  • Choose: Prefer ballpoint over sharp when stitching directly on mesh panels.
  • Slow down: Run a beginner-safe speed of 600–700 SPM to reduce vibration-related issues.
  • Success check: Fewer sudden thread breaks and no visible “sliced” mesh holes around stitches.
  • If it still fails: Re-check needle for burrs and verify the hat is clamped immovably before adjusting anything else.
• Q: How do you keep tear-away backing tight on a Gen 2 cylinder-style cap station to prevent mesh “flagging” during side hat embroidery?
  A: Load a long tear-away strip into the station’s retention clips and make it drum-tight before mounting the hat.
  • Insert: Slide the long backing strip into the retention clips so it cannot creep.
  • Tap-test: Flick/tap the backing before hooping the hat.
  • Re-seat: If the backing loosens, remove it and reload—do not “hope it holds.”
  • Success check: The backing makes a crisp paper “snap” sound (not a dull thud) when tapped.
  • If it still fails: Confirm the clamp station is mounted tight (no wobble) and reduce speed to the 600–700 SPM range.
• Q: How do you center a side mesh logo on a trucker hat using a chalk line instead of aligning to the mesh stripes?
  A: Draw a bold vertical chalk center line on the side panel and align that line to the clamp’s center notch/index tab, not to mesh stripes or seams.
  • Mark: Eyeball the side panel center and draw a clear vertical line with a white chalk pen.
  • Align: Match the chalk line to the clamp’s metal center reference point.
  • Avoid: Do not “follow” mesh grid lines or a bottom seam that may be sewn crooked.
  • Success check: The chalk line visibly bisects the clamp’s center index with no offset.
  • If it still fails: Redraw a heavier line (faint marks cause misalignment) and wipe stray chalk with a damp rag to prevent smearing.
• Q: How does leaving the sweatband tucked inside the hat help prevent crooked side mesh embroidery when using a 270-degree cap clamp system?
  A: Keep the sweatband tucked inside so the clamp compresses a more uniform surface and grips the hat evenly.
  • Tuck: Leave the sweatband inside the hat instead of flipping it out.
  • Clamp: Close the toggle clamp only after confirming the band is lying flat (no folds/lumps).
  • Communicate: Inform customers that stitching may be visible on the interior sweatband and get approval.
  • Success check: The hat clamps evenly without “slippery” shifting, especially near the thick bill/mesh connection area.
  • If it still fails: Tighten the adjustment knob and redo the clamp alignment using the chalk center line.
• Q: What is the “pull-test” success standard to confirm a trucker hat side panel is clamped tight enough before stitching?
  A: After locking the toggle clamp, pull hard on both sides of the hat—any slip means the clamp is too loose.
  • Tighten: Turn the adjustment knob (right is tighter) and re-clamp if there is any movement.
  • Verify: Ensure the metal band/bushings are sitting on hat material and not slipping off an edge.
  • Repeat: Re-do the pull-test every time you re-clamp.
  • Success check: The hat feels immovable—no sliding even a millimeter, like a drum skin.
  • If it still fails: Re-check backing tension in retention clips and confirm the sweatband is tucked cleanly for even pressure.
• Q: What does the “CLICK” sound confirm when mounting a clamped hat onto a Ricoma MT-1501 cap driver, and what should be checked before running?
  A: Do not stitch until the Ricoma MT-1501 cap frame mounts with a clear metal “CLICK” and a full trace confirms no collisions.
  • Mount: Seat the clamped hat fully onto the driver bars until the click is heard.
  • Trace: Run trace mode and watch Needle 1 movement near cap ears and the bill.
  • Confirm: Stop immediately if the presser foot or needle path approaches plastic clamp parts.
  • Success check: Audible click + trace completes without any near-strikes or contact.
  • If it still fails: Re-mount the frame and repeat the trace; never run at speed with a frame that does not lock positively.
• Q: How do you choose tear-away backing versus water-soluble topping for side mesh trucker hats to reduce puckering and stitch sinking?
  A: Match stabilizers to mesh stiffness: stiff mesh = tear-away, soft mesh = tear-away + water-soluble topping, high-density designs = two tear-away layers.
  • Use: 1 layer tear-away for stiff mesh hats.
  • Add: 1 layer water-soluble topping on top of the mesh for soft/stretch mesh to prevent stitches sinking into holes.
  • Reinforce: Use 2 layers of tear-away (crossed) for high-density designs.
  • Success check: Satin columns/text look crisp and flat without the mesh grid distorting around the logo.
  • If it still fails: Reduce speed to 600–700 SPM and re-check clamp security with the pull-test before changing design settings.
