Start Embroidery on a ZSK T8 Controller Without Crashing a Hoop: Color Mapping, Pantograph Centering, and the Trace Ritual

When you are standing in front of a commercial ZSK with a hoop mounted and a customer’s deadline breathing down your neck, the T8 controller can feel “simple”… right up until the moment you realize one wrong button press can bend a needle bar or slam a presser foot into a metal frame.

I have spent two decades in embroidery production, and I’ve watched operators lose more time to preventable setup mistakes—the “I thought I checked that” errors—than to actual mechanical failures. The good news: the ZSK T8 workflow is extremely logical once you treat it not as a list of tasks, but as a repeatable safety ritual. You map colors, you sight your center, you trace your boundary, and then you sew.

This guide rebuilds the exact start-to-stitch sequence, but I have overlaid it with the “Chief Education Officer” protocols: the sensory checks, the specific data ranges, and the safety buffers that experienced operators use to avoid crashes, eliminate “hoop burn,” and keep production profitable.

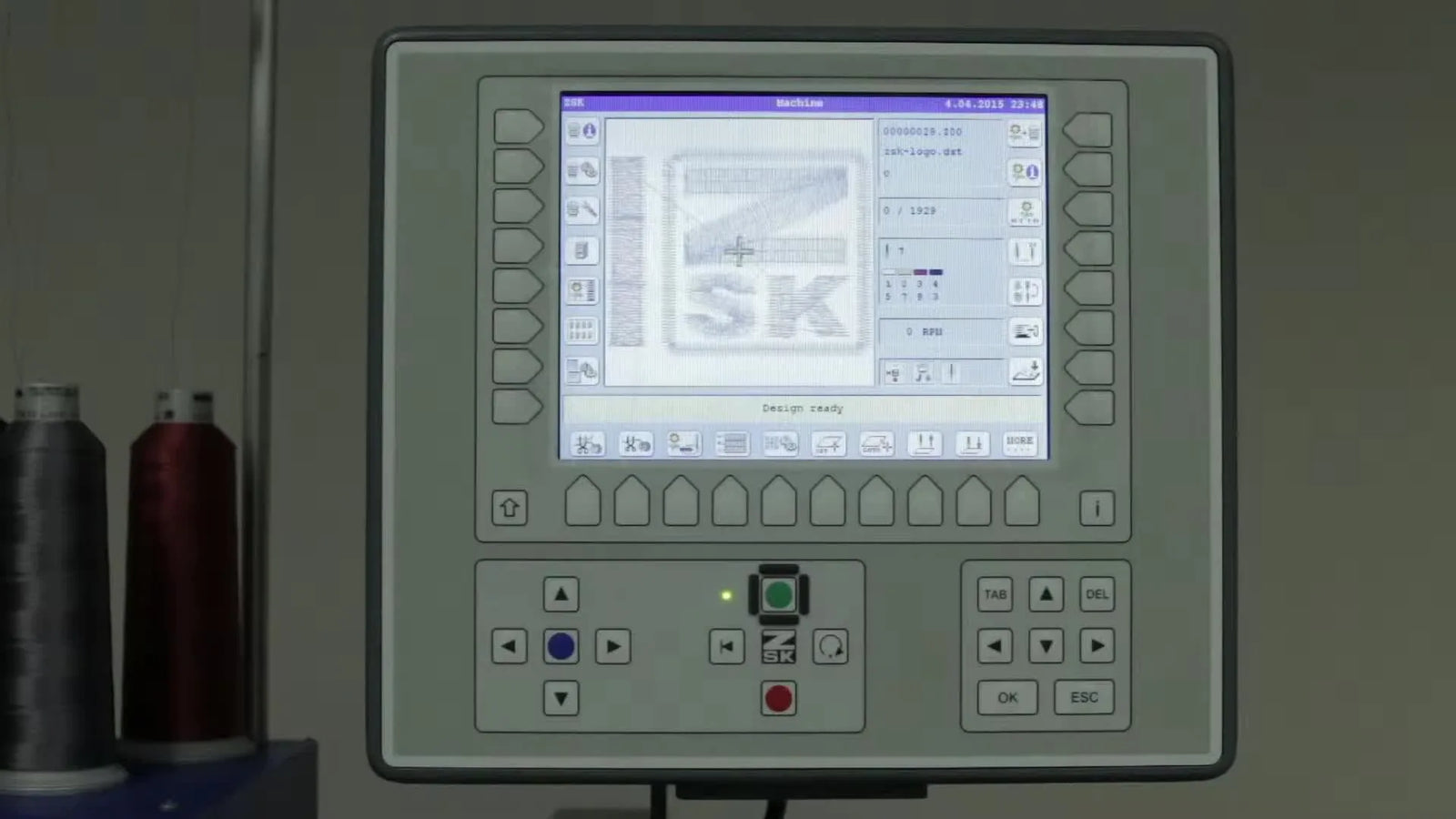

Read the ZSK T8 “Current Needle” Display Like a Pro (So You Don’t Start on the Wrong Thread)

On the ZSK T8 start screen, the small needle icon with a number next to it is the most critical piece of data on the panel. It is not decoration—it is the controller telling you exactly which physical needle bar is positioned over the plate right now. In real production, ignoring that single indicator is the leading cause of the “Why is it sewing black when I expected white?” panic.

The process begins with a design already loaded via a transport code. The controller displays the design’s digital color list (e.g., white, yellow, red, black). Your job is to translate that digital list into physical reality.

The Golden Rule of Commercial Embroidery:

• The File only understands “Stop 1, Stop 2, Stop 3.”
• The Machine only understands “Needle 1, Needle 2, Needle 3.”
• You are the bridge. The mapping step is where you tell the machine which needle executes which stop.


Lock In Color-to-Needle Mapping on the ZSK T8 Needle Assign Screen (R5) Before You Touch the Hoop

In the video workflow, the operator presses R5 (Needle Assign) and manually calculates the needle numbers for each design color. The logic is straightforward:

1. Needle 5 is assigned to Color 1 (White).
2. Needle 7 is assigned to Color 2 (Yellow).
3. Continue this pattern for the entire sequence.

Once finished, the operator confirms the settings.

The DST File Nuance: The operator notes that if you are using a DST file (the industry standard), the machine often defaults to a 1-to-1 map (Color 1 → Needle 1). DST files are “dumb” files—they do not carry color information, only coordinates. This means your shop standard is vital. If you are searching for setup advice on zsk hoops or large frame runs, this mapping step is often where the error occurs—users blame the hoop placement when the reality was a color mismatch that ruined the garment.

The “Hidden” Prep That Saves You From Re-hooping

Most tutorials skip the physical pre-check. I recommend a “Tactile Pre-Flight” before you even worry about centering. Centering is precision work; if you run out of bobbin thread 2 minutes later, you have wasted that precision.

Prep Checklist (The "Do Not Touch The Start Button" List):

• Digital Logic: Open R5 and verify every color slot has a specific needle number assigned.
• Physical Threading: Pull the thread on the active needles. Do you feel smooth resistance (like flossing teeth), or is it loose? Loose means a thread break is imminent.
• Bobbin Capacity: Open the bobbin case. Is the bobbin at least 50% full? If in doubt, change it now.
• Stabilizer Check: Lift the bottom edge of the hoop. Can you see the cutaway stabilizer covering the entire sewing field?
• Hidden Consumable: Do you have your snips and a spare needle (size 75/11 is standard for knits) within arm's reach?


Use Needle 1 as Your “Sighting Needle” on the ZSK T8 (R4 Needle Change) to Center Faster

Even if your design starts on Needle 9, the video demonstrates a brilliant production habit: Always switch to Needle 1 for alignment.

The operator presses R4 (Needle Change), selects Needle 1, then confirms with the green confirmation circle.

Why do this? Needle 1 is usually the leftmost needle. Using it as a consistent "gunsight" reduces parallax error (the visual distortion caused by looking at the needle from an angle).

• Consistency: It trains your eye to look at the same angle every time.
• Safety: It ensures you aren't guessing which bar will drop.

If you are doing hooping for embroidery machine tasks all day, eye fatigue is real. Consistency beats hero-level eyeballing every time.

Warning: Crush Hazard. When changing needles (R4) or doing alignment checks, keep hands, silicone sprays, and loose garment sleeves away from the needle bar area. Machines move faster than human reflexes. A sudden head movement or accidental start can cause puncture injuries.

Dial In Pantograph Movement on the ZSK T8 (U5 Snail Mode + Pulses) for True Centering

Now the real craft begins: aligning the needle to the crosshair sticker on the fabric. This is where "feel" dictates success.

In the video, the operator:

1. Activates Pantograph movement via the ZSK button.
2. Enters U5 (Pantograph configuration).
3. Selects Slow (Snail icon). This is non-negotiable for final alignment.
4. Uses arrows to jog the hoop until Needle 1 sits over the sticker.
5. Refines using 10 pulses (approx 1mm) or 1 pulse (0.1mm) increments.




Why slow mode matters (The Physics of Fabric Drift)

On knit fabric (like the yellow shirt shown), the material is fluid. If you jog the pantograph in "Fast" or "Rabbit" mode, the hoop jerks. This inertia causes the fabric to ripple or "overshoot" the target. When you correct it back and forth, you distort the fabric tension.

• Sensory Anchor: In "Snail" mode, the movement should feel fluid, not jerky. You want the hoop to glide to the center, not jump.

This is also where tool selection matters. A standard hoop relies on friction. If you notice the fabric slipping effectively "un-centering" itself as you jog, it might be time to investigate a magnetic hoop. Manufacturers like SEWTECH design these to hold fabric flat with vertical pressure rather than ring friction, which significantly reduces alignment drift.

Use "Needle Down" as a Hover Check—Not a Crash Test

The operator uses the Needle Down function to lower the tip close to the fabric.

The Safe Zone: You want the needle tip to be 2-3mm above the fabric. Do not touch the sticker.

• Visual Check: Close one eye. Line up the needle tip with the center of the crosshair.

Setup Checklist (Precision Phase):

• Reference: Needle 1 is selected active.
• Speed: Pantograph is set to Snail (Slow).
• Granularity: Controller is set to 10 pulses for final nudges.
• Clearance: Needle tip hovers above the sticker; it does not push the fabric down (which distorts the center).

The “Trace First, Sleep Better” Rule: Run ZSK T8 Design Range (U3) to Prevent Hoop Strikes

If you only adopt one habit from this entire workflow, make it this: Trace before you stitch. The video emphasizes this as a "huge rule of thumb." In my shop, we call it "Employment Insurance"—because crashing a machine frame is a resume-generating event.

To trace, the operator:

1. Exits movement via U0.
2. Enters U3 (Design Range).
3. Chooses Contour Coarser (white outer box) or Contour Finer (tight shape).
4. Selects Framing Speed.
5. Crucially: Ensures the needle is UP.
6. Presses Start.


Coarser vs. Finer: Knowing Your "Safety Margin"

• Contour Coarser: Traces a square box around the designs extremes. This is the safest method. It ensures your needle won't hit the hoop even on the corners.
• Contour Finer: Traces the actual shape. Use this only if you are tight on space and need to verify the design fits into a specifically shaped garment area.

If you are running small items on a mighty hoop 5.5 equivalent, the margin for error is millimeters. Tracing is the only way to physically verify that digital coordinates fit the physical world.

The "Live Adjustment" Trick

A powerful detail in the video: If you trace and see the needle getting too close to the hoop edge, stop! You can switch back to Pantograph, nudge the position (using those 10 pulse moves), and the ZSK T8 effectively "re-centers" the design relative to that new spot.

A Stabilizer Decision Tree for Knit Shirts on ZSK (So the Design Doesn’t Ripple)

The video shows a yellow knit fabric backed by cutaway stabilizer. This is the industry gold standard. Why? Because knits stretch, but embroidery thread does not. Without a stable foundation, the fabric will pucker (the dreaded "bacon neck" effect).

Use this decision tree to stop guessing:

Decision Tree: Fabric vs. Stabilizer

1. Is the fabric stretchy? (T-shirt, Polo, Hoodie)
   • YES: Use Cutaway Stabilizer. (Must be cut out after). Reason: Retains structure for the life of the garment.
   • NO: Go to step 2.
2. Is the fabric stable/woven? (Denim, Canvas, Dress Shirt)
   • YES: Use Tearaway Stabilizer. Reason: Clean finish, fabric supports itself.
3. Does the fabric have pile/fluff? (Towel, Fleece)
   • YES: Add Water Soluble Topping (Solvy) on top + Stabilizer on bottom. Reason: Prevents stitches from sinking.

Commercial Tip: High-quality backing (like the SEWTECH commercial grade) prevents the "bulletproof vest" feel while still stopping the stretch.

Start Sewing on the ZSK T8 (Green Button) Only After You Remove the Center Sticker

After tracing, the operator returns to the design view. Then—and only then—do they peel off the crosshair sticker.

Why wait? If you remove the sticker before tracing, and then realize you need to re-hoop, you have lost your center mark. If you forget to remove it (we have all been there), the needle will punch adhesive into the thread, causing shredding and gumming up the rotary hook.

Adjust ZSK T8 Speed During Stitching Without Losing Control

The video demonstrates using the Speed button to modulate SPM (Stitches Per Minute):

• Double Plus: Max Speed (often 1000+ SPM).
• Double Minus: Minimum Speed.
• Single +/-: Incremental trim.


Finding the "Beginner Sweet Spot"

Beginners often think "Fast = Profit." This is false. "Finished = Profit."

• Expert Recommendation: Start your run between 650 - 750 SPM.
• Sensory Check: Listen to the machine.
  • Rhythmic Thumping: Good.
  • Harsh Metallic Clanking or "Laboring": Too fast. The thread tension cannot keep up with the needle bar.


Operation Checklist (The "Green Button" Moment):

• Safety: Trace (U3) completed with no hoop contact.
• Clearance: Needle is UP.
• Hygiene: Crosshair sticker is removed.
• Speed: Set to safe range (e.g., 700 SPM).
• Execution: Press Green Button.

Troubleshoot the Two Scariest ZSK Start-Up Failures: Hoop Strike and Bent Needle

Even with a perfect setup, things happen. Here is how to diagnose the two most common "Day 1" disasters.

Symptom 1: The "Hoop Strike" (Loud bang, broken needle, shifted hoop)

• Likely Cause: You skipped the Trace (U3) step, or you selected the wrong hoop size in the controller.
• Immediate Fix: Hit Emergency Stop. Check the needle bar for straightness. Re-hoop.
• Prevention: Never trust the screen alone. The physical trace is your truth.

Symptom 2: The "Bent Needle" during setup

• Likely Cause: Moving the pantograph while the needle was in the Down/Hover position.
• Immediate Fix: Replace the needle immediately. Do not try to bend it back (it will act like a microscopic saw on your thread).
• Prevention: Always return the needle to the fully UP position before engaging the pantograph (U5).

For more depth on mechanical recovery, searching for zsk embroidery machine troubleshooting usually leads to specific error code guides, but these physical checks solve 90% of startup issues.

When Your Hands Are the Bottleneck: Upgrading Your Hooping Workflow (The Commercial Path)

The video features a blue magnetic hoop. This is a subtle but massive clue for productivity.

If you find that operating the ZSK T8 takes 1 minute, but hooping the shirt takes 5 minutes, you have a workflow bottleneck. Traditional screw-tight hoops are notorious for causing "hoop burn" (permanent rings on fabric) and wrist strain.

The Upgrade Logic:

• The Trigger: Are you rejecting garments due to hoop marks? are your wrists hurting?
• The Criteria: If you are producing more than 20 items a day, manual hooping is costing you money.
• The Solution:
  • Level 1: Upgrade to a magnetic embroidery hoop (like the MaggieFrame or SEWTECH equivalents). These snap on automatically, reducing load time by ~40% and eliminating hoop burn.
  • Level 2: Implement a magnetic hooping station. This ensures every logo is placed in the exact same spot on every shirt size, regardless of who is operating the machine.

Warning: Magnetic Safety. These are industrial magnets. They will pinch fingers severely if handled carelessly. Keep them away from pacemakers, insulin pumps, and magnetic storage media (credit cards/phones).

As your volume scales, this efficiency mindset leads to the next tier: Multi-Needle Capacity. Whether sticking with ZSK or expanding into high-ROI platforms like SEWTECH multi-needle machines, the goal is to keep the needles moving, not waiting on the operator.

The Real “Results” of This ZSK T8 Start Sequence

If you follow this ritual—Map (R5) → Sight (Needle 1) → Slow Center (Snail Mode) → Trace (U3) → Clean Start—you achieve the three pillars of commercial embroidery:

1. Safety: You protect your expensive equipment from physical crashes.
2. Quality: You eliminate placement errors and fabric puckering.
3. Speed: paradoxically, by slowing down the setup to be precise, you speed up the day by removing rework.

Master this sequence, and the ZSK T8 controller stops being a complex computer and becomes exactly what it should be: the most profitable tool in your shop.

FAQ

• Q: How do I verify the ZSK T8 “Current Needle” display so the ZSK T8 does not start sewing the wrong thread color?
  A: Match the ZSK T8 current needle icon/number to the physically threaded needle before pressing Start.
  • Open the start screen and read the current needle number as the “needle bar positioned right now.”
  • Pull the thread tail on that needle and confirm smooth, even resistance (not loose slack).
  • Confirm the design stop you are about to sew matches the thread color on that needle.
  • Success check: the first stitches match the intended color with no “why is it sewing black instead of white?” surprise.
  • If it still fails: re-check the Needle Assign mapping (R5) for every color slot before touching the hoop.
• Q: How do I set ZSK T8 Needle Assign (R5) correctly so the ZSK T8 color stops match the correct needle numbers, especially when running a DST file?
  A: Use ZSK T8 R5 to explicitly map every design color stop to a specific needle number, because DST files often default to Color 1 → Needle 1.
  • Press R5 (Needle Assign) and assign Needle # to each Color/Stop in order (confirm every slot is filled).
  • Confirm the mapping before hooping so re-hooping is not caused by a preventable color mismatch.
  • Success check: the controller shows a needle number next to every color stop, and the first color change lands on the expected needle.
  • If it still fails: standardize the shop’s “needle-to-color” plan and re-load the design, then repeat R5 verification.
• Q: What is the safest way to use ZSK T8 R4 Needle Change to select Needle 1 for alignment without getting fingers near the moving needle bar?
  A: Switch to Needle 1 using ZSK T8 R4, then keep hands and sleeves completely out of the needle bar area during any head movement.
  • Press R4 (Needle Change), select Needle 1, and confirm with the green confirmation circle.
  • Keep fingers, tools, and loose garment fabric away from the needle bar zone during the change.
  • Use Needle 1 consistently as the “sighting needle” to reduce alignment guessing and parallax.
  • Success check: Needle 1 is active and centered visually without needing repeated re-adjustments.
  • If it still fails: stop and reset your stance/angle; repeat Needle 1 selection and continue with slow pantograph centering.
• Q: How do I center a design accurately using ZSK T8 pantograph U5 Snail mode and pulse moves without shifting knit fabric in the hoop?
  A: Use ZSK T8 U5 Snail (Slow) mode and finish alignment with 10-pulse or 1-pulse nudges to avoid jerking knit fabric off-center.
  • Activate pantograph movement, enter U5, and select the Snail (Slow) icon for final positioning.
  • Jog to the crosshair sticker using arrows, then refine with 10 pulses (about 1 mm) or 1 pulse (0.1 mm).
  • Use Needle Down only as a hover check and keep the needle tip 2–3 mm above the fabric (do not push the sticker).
  • Success check: the hoop glides (not jumps) and the needle tip visually stays centered over the crosshair without the fabric rippling.
  • If it still fails: reduce movement speed again and check for fabric slip; persistent slipping often indicates the hoop grip method is not holding evenly.
• Q: How do I prevent a ZSK T8 hoop strike by running ZSK T8 Design Range (U3) trace correctly before stitching?
  A: Always run ZSK T8 U3 Design Range tracing with the needle UP before pressing Start to confirm the design clears the hoop/frame.
  • Exit movement with U0, enter U3 (Design Range), and choose Contour Coarser for the safest margin.
  • Set a framing speed you can monitor, verify the needle is fully UP, then press Start to trace.
  • Stop immediately if the trace path approaches the hoop edge, return to pantograph, and nudge position using pulse moves before tracing again.
  • Success check: the full trace completes with no contact and clear space at the extremes.
  • If it still fails: re-check hoop selection/physical hoop size and reposition the design before any sewing attempt.
• Q: What should I do immediately after a ZSK T8 hoop strike (loud bang, broken needle, shifted hoop) to prevent further machine damage?
  A: Hit Emergency Stop, then inspect and reset before restarting—do not “try again” without re-checking range and alignment.
  • Press Emergency Stop right away and remove power from motion if needed per shop safety practice.
  • Inspect the needle bar for straightness and replace any broken needle before continuing.
  • Re-hoop the garment, then re-run ZSK T8 U3 Design Range trace before sewing.
  • Success check: tracing runs cleanly with no contact and the machine sounds normal (no harsh metallic clanking).
  • If it still fails: stop and escalate to deeper troubleshooting, because repeated strikes can indicate an incorrect setup choice or a mechanical issue.
• Q: How do I prevent ZSK T8 operators from getting pinched by industrial magnetic embroidery hoops, and when is a magnetic hoop upgrade justified for production?
  A: Treat magnetic embroidery hoops as industrial pinch hazards, and upgrade when manual hooping time or hoop burn becomes the production bottleneck.
  • Handle the magnetic hoop by its safe grip points and keep fingers out of the closing path when the frame snaps together.
  • Keep magnetic hoops away from pacemakers, insulin pumps, and magnetic storage media (phones/credit cards).
  • Use a tiered decision: optimize technique first, then upgrade to a magnetic hoop to reduce load time and hoop burn, then consider a hooping station for repeat placement at volume.
  • Success check: hooping becomes faster with consistent placement and reduced garment rejection from hoop marks.
  • If it still fails: slow down the loading motion and reassess the workflow—if hooping still takes far longer than sewing, a hooping station or higher-capacity production plan may be the next step.
