Stop Fighting Work Shirts: A Ricoma TC-1501 Workflow Test with a 5.1" Magnetic Hoop + Hooping Station

The Science of Hooping: A Master Class in Repetition, Physics, and Magnetic Workflow

If you run a small embroidery shop—or you are currently trying to transition a hobby into a revenue stream—you are likely familiar with the "Hooping Paradox." You have the expensive machine, you have the premium digitized file, and you have a high-stakes garment. Yet, the quality of the final output is entirely dependent on the one step that feels the most manual and imprecise: hooping.

Hooping is where the art meets the engineering. It is also where 90% of failures occur. It creates the "hoop burn" that ruins velvet; it causes the puckering that destroys satin stitches; it destroys wrists after a 50-shirt order.

This guide acts as a forensic breakdown of a specific workflow: using a budget-friendly magnetic hooping station ecosystem on a heavy-duty single-head machine (like the Ricoma TC-1501). However, the physics I will teach you here apply whether you are using a commercial multi-needle beast or a high-end domestic hybrid. We will move beyond "how-to" and inspect the "why" behind successful stabilization and tension.

The Economics of Efficiency: Why We Move to Magnetic Systems

In the embroidery industry, we often say: Your machine makes money when the needle is moving; you lose money when the hoop is empty.

The presenter in our case study begins with a realization that hits every shop owner: the price gap between ecosystem "A" and ecosystem "B." He highlights a competitor system costing nearly $900, versus the setup he purchased for $279. While the price difference is stark, as a technician, I look at the Time-to-ROI (Return on Investment).

Standard embroidery hoops (the inner/outer ring friction style) rely on hand strength and manual screw tightening. This introduces three variables that kill production:

1. Inconsistent Tension: The screw is tighter on shirt #1 than on shirt #20 as your hands tire.
2. Hoop Burn: Friction rings crush fabric fibers, leaving permanent "halos" on delicate wovens.
3. Speed: Aligning a chest logo visually takes 2-4 minutes for a novice; with a station, it takes 30 seconds.

Two critical asset definitions regarding this kit:

1. The "Station" is the alignment docking bay (the board).
2. The "Fixture" is the template that holds a specific hoop size.

In this workflow, the user selected a 5.1" x 5.1" (130x130mm) fixture and ordered the matching hoop separately. This brings us to our first principle of shop management: Precision in Purchasing.

If you are researching a magnetic hooping station, understand that it is an alignment tool, not a clamping tool. The hoop clamps; the station aligns. You need both to stop guessing where the center point is.

Unboxing the Reality: The Component Hierarchy

When you purchase these systems, the "bundle" is often a "Starter Kit" for the station, not the hoops. The video verifies the packing list:

• Main Shirt Station: The large acrylic base for adult garments.
• Sleeve Station: The narrower board for sleeves/legs (often overlooked but vital for profit margins on pants).
• Universal Fixtures: Long and short brackets to adjust for different hoop brands.
• Size-Specific Fixture: The cutout template (in this case, 5.1").

The Critical Omission: The kit does not include the magnetic hoop itself.

This is standard industry practice, but it causes panic for beginners. You must purchase the hoop that matches your machine’s arm width (e.g., Ricoma, Tajima, Brother) and holds the magnets.

The "Fixture Math" for Smart Growth

Do not buy every size immediately. Use this logic to minimize overhead:

• The 5x5 Class: If you do left-chest logos, names, and Polos, this accounts for 80% of corporate work. Start here.
• The 8x8 Class: If you do "center chest" designs on hoodies/sweatshirts.
• The Decision: Buy the fixture and hoop for your highest volume output first.

Phase 1: The "Hidden" Prep (Hardware Calibration)

Embroidery entails vibration. Vibration loosens screws. Before we even touch a garment, we must perform a "Pre-Flight" hardware check. The hoop arrives as a kit: rings, loose metal brackets, and screws.

You are the mechanic. You must attach the brackets to the hoop frame.

Why this step matters

If you attach a bracket slightly crooked, your hoop will sit at a 1-degree angle on the machine. Over a 4-inch design, that 1-degree tilt results in text that looks visibly crooked, no matter how straight you hooped the shirt.

Prep Checklist: The Mechanics of Accuracy

• Bracket Compatibility: Confirm the metal arms match your machine’s receiver width (e.g., standard 360mm or wide sizes).
• Screw Torque: Use the included screwdriver. Tighten until you feel firm resistance, but do not strip the threads.
• The "Wobble Test": Place the assembled hoop on a perfectly flat table. Tap the corners. If it rocks/wobbles, the brackets are uneven. Loosen and re-seat.
• Surface Hygiene: Wipe the magnetic contact surfaces with 90% Isopropyl Alcohol. Lint and old adhesive spray residue reduce magnetic grip force.
• Staging: Have your Spray Adhesive (like 505) or Masking Tape ready within arm's reach.

Warning: Magnet Safety
Magnetic hoops use industrial neodymium magnets. They do not "close gently"—they slam.
* Pinch Hazard: Keep fingers clear of the contact zone. The force can crush skin and break fingernails.
* Medical Devices: Keep these hoops at least 6 inches away from pacemakers and insulin pumps.
* Electronic Safety: Do not place credit cards or phones directly on the magnets.

Phase 2: The Station Setup (Standardization)

The presenter configures the acrylic station for a Right-Chest placement. Why? Because the Left-Chest was already done.

This demonstrates the core value of a station: Symmetry. A human eye struggles to replicate the exact same placement on the right side as the left side. A station uses grid lines and physical stops (the neck curve) to force symmetry.

When utilizing a hooping station for embroidery, you are effectively creating a jig. A jig removes "talent" from the equation and replaces it with "process," allowing you to hand the job to an employee with minimal training.

Phase 3: The Hooping Sequence (The Action)

We will now break down the video’s workflow into a granular, sensory-based sequence. This is the difference between "putting it on" and "hooping for tension."

Step 1: Foundation (The Bottom Ring)

Place the bottom magnetic ring into the fixture cutout.

• Sensory Check: It should drop in and sit flush. If it wobbles, check for debris in the cutout.

Step 2: Stabilization (The Hidden Hero)

Lay a sheet of Cut-Away Stabilizer over the bottom ring.

• Expert Insight: Why Cut-Away? The video uses a grey work shirt (poly/cotton). When a needle penetrates fabric thousands of times, it shreds the fibers. Cut-away provides a permanent skeleton that holds the stitch shape even after 50 washes. Tear-away would eventually disintegrate, leaving the logo to crumple.


Step 3: Draping and Threading

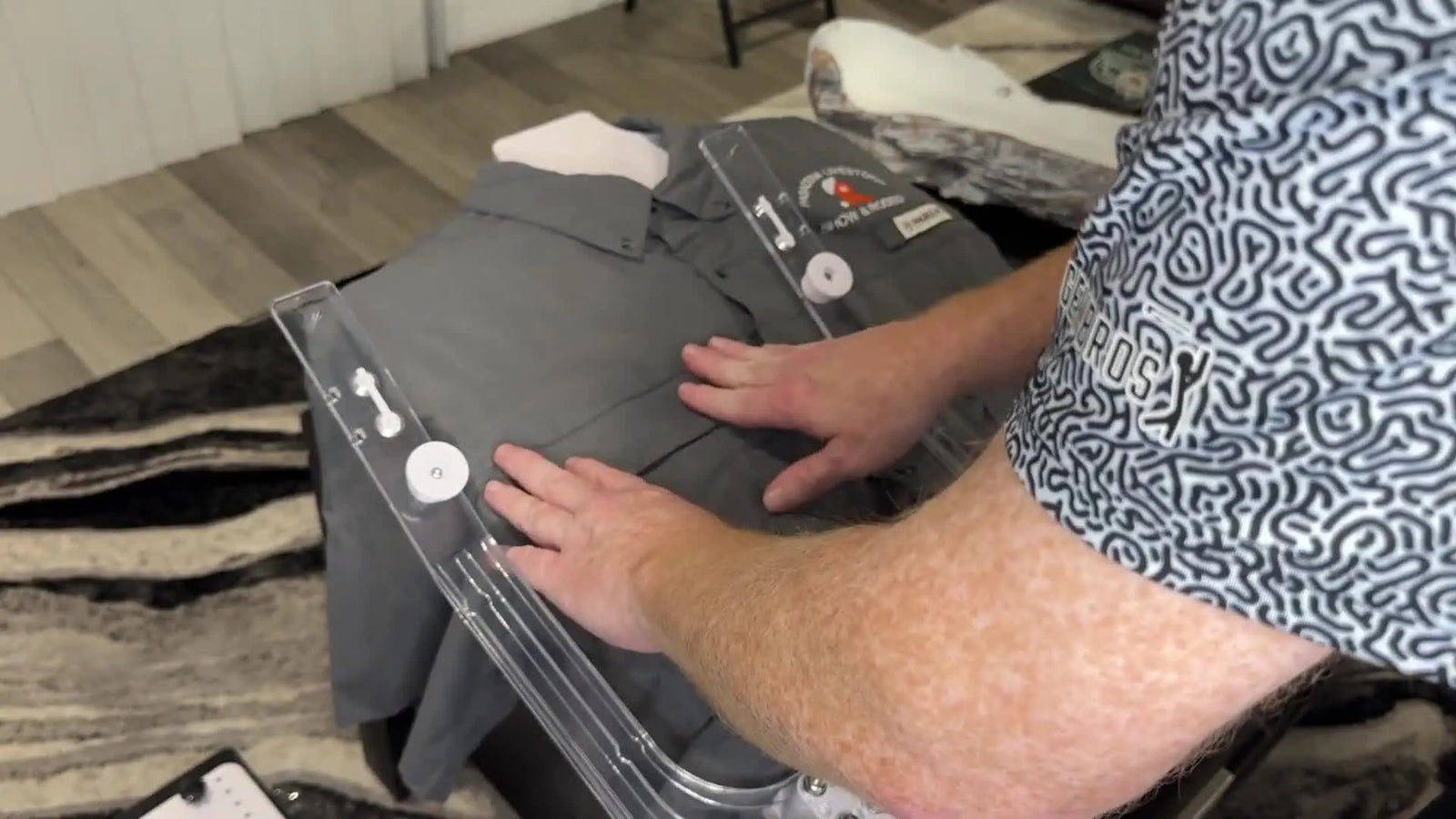

Pull the garment over the station board. Use the station’s neck guide to ensure the shirt shoulders are square.

• Action: Smooth the fabric from the center outward to the edges.
• Sensory Check: You are looking for "relaxed but flat." Do not stretch the shirt like a drum yet; just remove the ripples.




Step 4: The Magnetic Clamp

Align the top blue ring over the bottom ring and let the magnets engage.

• Audible Anchor: Listen for a solid, uniform "CLACK". A quiet or muffled sound implies fabric is bunched too thick or a finger (danger!) is in the way.
• The "Tug Test": Once clamped, gently pull the fabric edges. With magnetic hoops, the fabric should not slip. If it slips, your stabilizer + fabric combo is too thick for the magnet grade, or the hoop is dirty.

Why smoothing prevents "Torque Distortion"

If you smooth the fabric diagonally (pulling bottom-left to top-right) and then clamp it, you have trapped "torsion" in the fibers. When you remove the hoop later, the fabric will relax, and your perfectly straight lettering will twist. Always smooth following the vertical grain of the shirt.

The Decision Tree: Stabilizer Selection

Beginners often ask, "What backing do I use?" Here is a commercial decision tree to eliminate guesswork.

Scenario: A 10,000 Stitch Chest Logo

1. Is the fabric unstable? (T-shirt, Polo, Knit, Spandex)
   • YES: Cut-Away (2.5oz or 3.0oz). No exceptions.
   • NO: Go to #2.
2. Is the design dense? (Solid fill backgrounds, fine small text)
   • YES: Cut-Away. Density requires support.
   • NO: Go to #3.
3. Is the fabric a stable woven? (Denim, Canvas, Stiff Work Shirt)
   • YES: Tear-Away is acceptable, usually in two layers.
   • NO: Default to Cut-Away.

Pro Tip: For uniform work shown in the video, Cut-Away is the industry standard because durability beats comfort on workwear.

Phase 4: Machine Mounting (The "Red Zone")

The presenter slides the hoop onto the Ricoma TC-1501 pantograph arms. This is the moment of highest risk.

The "Under-the-Hoop" Hand Check

Immediately after sliding the hoop on, the presenter reaches his hand underneath the hoop.

• Why? It is incredibly easy for the back of the shirt, or a sleeve, to fold under the hoop area. If you stitch through the front of the shirt and the back of the shirt, the garment is ruined, and you may break the machine’s reciprocator.
• Action: Sweep your hand between the needle plate and the garment. Feel for obstructions.


Warning: Physical Safety
Ensure your fingers are fully removed from the hoop area before hitting "Start." Standard industrial machines stitch at 600-1200 stitches per minute. A needle strike can penetrate bone.
Never bypass the "Trace" function. Watch the trace to ensure the needle bar doesn't hit the plastic frame of the hoop.

Setup Checklist (The "Pre-Flight" Ritual)

• Bracket Seating: Are the hoop brackets fully inserted into the pantograph slots?
• Clearance: Perform the "Hand Sweep" under the hoop.
• Hoop Selection: Does the machine screen display the correct hoop size (or "Other" fitting the dimensions)?
• Color Sequence: Is the thread path clear? (First needle is threaded and not tangled).
• Trace: Run a contour trace to verify the design fits inside the hoop limits.

The Stitch-Out: Speed and Stability

The machine runs the design in white thread. The presenter notes "no slippage." For a ricoma machine or similar commercial unit, start your speed at a "Sweet Spot" of 600-750 SPM (Stitches Per Minute).

• Observation: If you see the hoop "bouncing" violently, slow down. Magnetic hoops are heavier than plastic ones; excessive speed can cause registration loss due to inertia.

In this demo, the text remained crisp. In the world of embroidery, "crisp text" proves that the hoop prevented the fabric from flagging (lifting up with the needle).

Phase 5: Removal and Quality Control

He removes the hoop and uses the built-in finger tabs to release the magnetic force.

Inspection Protocol

Do not just throw the shirt in the "Done" pile. Inspect immediately:

1. Registration: Did the outline align with the fill? (Misalignment = hoop slip).
2. Puckering: Are there wrinkles radiating from the logo? (Puckering = insufficient stabilizer or hooping too loose).
3. Hoop Burn: Is there a ring mark? (Magnetic hoops reduce this significantly compared to traditional friction hoops).

Troubleshooting: When Good Hoops Go Bad

Even with a magnetic embroidery hoop, issues arise. Here is your structured troubleshooting guide.

The Commercial Logic: When to Upgrade

The presenter concludes that the $279 investment is a "no-brainer" against the $900 competitor. But when should you spend this money?

We use a "Pain-Based" upgrade logic:

Level 1: The Skill Upgrade (No Cost)

• Symptom: Small puckering, occasional crooked logos.
• Solution: Master the "Decision Tree" above. Use spray adhesive. Practice manual hooping marks.
• Tool: Water-soluble pens, better stabilizer.

Level 2: The Tool Upgrade (Moderate Cost)

• Symptom: Wrist pain (Carpal Tunnel symptoms), "Hoop Burn" on expensive shirts, slow setup times (3+ minutes per shirt).
• Solution: Switch to Magnetic Hoops and a Hooping Station.
• Why: Magnets eliminate the wrist-twisting motion of tightening screws. The station reduces setup time to ~45 seconds. This is where sewtalent magnetic hoops often enter the conversation as a mid-tier solution between budget and luxury.

Level 3: The Capacity Upgrade (High Cost)

• Symptom: You are turning away orders. You have 50+ shirt orders with multiple colors. Your single-needle machine takes 20 minutes per shirt due to manual thread changes.
• Solution: Upgrade to a Multi-Needle Machine (like a SEWTECH 15-needle system).
• Why: 15 needles mean no re-threading. This, combined with magnetic hoops, creates a continuous production flow.

Operation Checklist: The Final Run-Through

Before you start your next batch, internalize this workflow:

1. Station Prep: Insert bottom ring + stabilizer.
2. Drape: Pull shirt, align shoulders, smooth vertical grain (do not stretch).
3. Clamp: Snap top ring. Listen for the clean "Clack."
4. Verify: Check tension; fabric should not slip when tugged.
5. Mount: Slide onto machine arms. Ensure brackets click in.
6. Safety Sweep: Reach hand under the hoop to clear the shirt back.
7. Trace & Stitch: Run the trace. Stitch at 700 SPM.
8. Release: Peel top magnet vs. slide. Inspect output.

By adhering to this physics-based approach, you transform embroidery from a "guessing game" into a manufacturing science.

FAQ

• Q: Why does a magnetic embroidery hooping station kit for a Ricoma TC-1501 arrive without a magnetic hoop included?
  A: This is common—most kits are “station + fixtures,” and the magnetic hoop is a separate, machine-specific purchase.
  • Confirm whether the package list includes only the acrylic station boards and fixtures (templates/brackets).
  • Order a magnetic hoop that matches the Ricoma TC-1501 pantograph arm/bracket width and the fixture size (for example, a 130x130mm / 5.1" class).
  • Match “fixture size” to “hoop size” before stitching, not after unboxing.
  • Success check: The bottom ring drops into the fixture cutout and sits flush without wobble.
  • If it still fails: Re-check that the hoop you bought is the same size class as the fixture and that the mounting brackets fit the machine receiver.
• Q: How do I stop a magnetic embroidery hoop on a Ricoma TC-1501 from producing crooked text due to angled brackets?
  A: Re-seat and square the hoop brackets before production—small bracket misalignment can tilt the hoop and make lettering look crooked.
  • Attach the metal brackets carefully and tighten until firm resistance (do not strip threads).
  • Perform the “wobble test” on a perfectly flat table; loosen and re-seat brackets if the hoop rocks.
  • Slide the hoop onto the machine arms and ensure the brackets fully seat/click into place.
  • Success check: The hoop sits flat (no rocking on the table) and the stitched text baseline looks visually level across the design width.
  • If it still fails: Re-check station alignment (shirt shoulders square to the neck guide) before blaming the machine.
• Q: What stabilizer should be used for a 10,000-stitch chest logo on a poly/cotton work shirt when hooping with a magnetic hoop?
  A: Use cut-away stabilizer for this scenario because durability and shape retention matter more than easy removal.
  • Lay a sheet of cut-away stabilizer over the bottom ring before pulling the garment into position.
  • Keep the fabric “relaxed but flat” while aligning, then clamp—do not stretch aggressively before clamping.
  • Add spray adhesive (like 505) or masking tape as needed to keep fabric and backing bonded during stitching.
  • Success check: After stitch-out, the logo stays crisp with minimal puckering and holds its shape when the garment relaxes.
  • If it still fails: Increase stabilizer support (often an additional layer) and re-check hoop cleanliness and fabric smoothing technique.
• Q: How can a magnetic embroidery hoop user prevent fabric slippage after clamping the top ring?
  A: Clean the magnetic contact surfaces and clamp only after smoothing correctly; magnetic hoops grip well, but dirty surfaces and trapped distortion cause slipping.
  • Wipe the magnetic contact surfaces with 90% isopropyl alcohol to remove lint and adhesive residue.
  • Smooth the garment following the vertical grain (avoid diagonal pulling that traps torsion).
  • Clamp the top ring and then perform a gentle tug test on the fabric edges.
  • Success check: A solid, uniform “clack” sound on closure and no fabric movement during the tug test.
  • If it still fails: The fabric + stabilizer stack may be too thick for the magnet grade—reduce bulk where possible or switch hooping method for very thick items.
• Q: What should I do if a magnetic hoop pops open mid-stitch on a Ricoma TC-1501 when embroidering thick garments?
  A: Treat it as a bulk/thickness problem—reduce bulk or move to a stronger magnet grade or traditional clamps for thick jackets.
  • Stop the machine immediately and remove the hoop safely.
  • Re-hoop with less bulk in the clamping zone (avoid extra folds and stacked seams under the magnet contact line).
  • Consider using a stronger magnet rating for thick materials or switching to traditional clamps for heavy jackets.
  • Success check: The hoop remains fully closed through the stitch-out with no separation at the ring seam.
  • If it still fails: Inspect the hoop surfaces for residue and confirm the garment is not bunching under the ring when clamped.
• Q: How do I prevent instant needle breaks caused by the needle hitting a magnetic hoop frame on a Ricoma TC-1501?
  A: Always run the machine’s trace/contour trace before stitching and keep the design inside the safe sewing field.
  • Select the correct hoop size (or “Other” that fits the dimensions) on the machine screen.
  • Run a contour trace and watch for any point where the needle path approaches the frame edge.
  • Re-center or resize the design so it stays inside a safe margin (a common safe practice is keeping stitches well inside the frame edge; follow the machine manual for exact limits).
  • Success check: The trace completes without any near-contact between needle path and hoop frame.
  • If it still fails: Re-check that the hoop is mounted correctly on the pantograph arms and that the brackets are fully seated.
• Q: What is the safest way to avoid stitching through the back of a shirt (and risking injury) when mounting a magnetic hoop on a Ricoma TC-1501?
  A: Do an “under-the-hoop hand sweep” every time before pressing Start, and keep fingers completely out of the hoop area during operation.
  • Slide the hoop onto the pantograph arms and confirm bracket seating.
  • Sweep a hand between the needle plate area and the garment to ensure no sleeve or shirt back is trapped under the hoop zone.
  • Run the trace function before stitching and keep hands clear once the machine is about to move.
  • Success check: You can feel a clear path under the hoop with no trapped fabric layers, and the trace runs without snagging.
  • If it still fails: Stop immediately, remove the hoop, and re-drape the garment on the station so excess fabric is controlled before mounting.
