Stop Guessing Your SWF 17-Inch Touch Panel: The Install Mode Trick That Prevents Error #105 (and Other Costly Misconfigurations)

When your SWF boots up and you realize the machine is “not acting like itself,” your stomach drops. It’s that sinking feeling every operator knows—because parameter mistakes don’t just cause a pop-up; they stop production cold.

The good news: on the 17-inch touch panel found on many modern units, SWF made the critical configuration menu accessible without special tools—if you know the specific timing. But knowing how to enter the menu is only half the battle; knowing what to change (and what to leave alone) is what separates a quick fix from an expensive service call.

In this guide, I’ll walk you through the exact on-screen sequence shown in the video, but I’m going to layer it with the technician-level habits that keep you from chasing phantom issues later. We aren't just fixing settings; we are restoring the brain of your machine.

The Calm-Down Primer for the SWF 17-Inch Touch Panel (Yes, This Is Fixable)

If your machine is booting, showing DOS prompts, and reaching the Cowin.FA splash screen, take a deep breath. You are already in a recoverable situation.

Most “sudden” problems that appear after a screen swap, a control box change, or a factory parameter reset come down to one single concept: Cognitive Dissonance. The control software is expecting hardware that isn’t physically there. It’s trying to talk to a 4th head that doesn't exist, or a needle color sensor that works differently than programmed.

That’s why the first rule is simple: match parameters to the physical machine—exactly. On a swf embroidery machine, the control panel is not “smart” in the way a smartphone is; it trusts whatever you tell it in Install Mode. If you tell it a lie, it will believe you—right up until it crashes.

The “Hidden” Prep Pros Do Before Touching PARA SET (So You Don’t Make It Worse)

Before you rush into settings, take 60 seconds to set yourself up like a technician. This is where most owners accidentally create a second problem while fixing the first. We call this "cleaning the workspace," both physically and mentally.

What you’re preparing for: You will be tapping small, resistive touch buttons. Unlike your iPhone, which reacts to the electricity in your finger, these industrial screens react to pressure. A sloppy touch with a greasy finger can select the wrong option, sending you down a rabbit hole of diagnosing the wrong symptom.

Prep Checklist (do this before powering on)

• Physical Audit: Walk around your machine. Confirm definitively: Is it single head or multi-head? Count the needles manually (don't guess)—is it 12, 15, or something else (the video example is a single head 12-needle unit).
• Tool Up: Locate a stylus or a blunt plastic tip. Do not use your finger. Why? Fingers leave oil, and fingers are too wide for precise selection on DOS-based menus. A stylus ensures you hit exactly what you aim for.
• Visual Check: Inspect the wheel sensor area if accessible. Knowing if you have the "wagon wheel" style or a standard internal encoder beforehand saves guessing later.
• Hidden Consumable Check: Ensure you have a small flashlight ready. Sometimes these older screens are dim during the boot sequence, and you need to see the text clearly.

Warning: Moving Parts Hazard. Keep hands, sleeves, and lanyards clear of moving parts around the machine head area during power cycles. Even though this procedure is screen-based, machines can initialize (move the pantograph or jump the needle bar) unexpectedly. Treat every reboot like the machine is about to move.

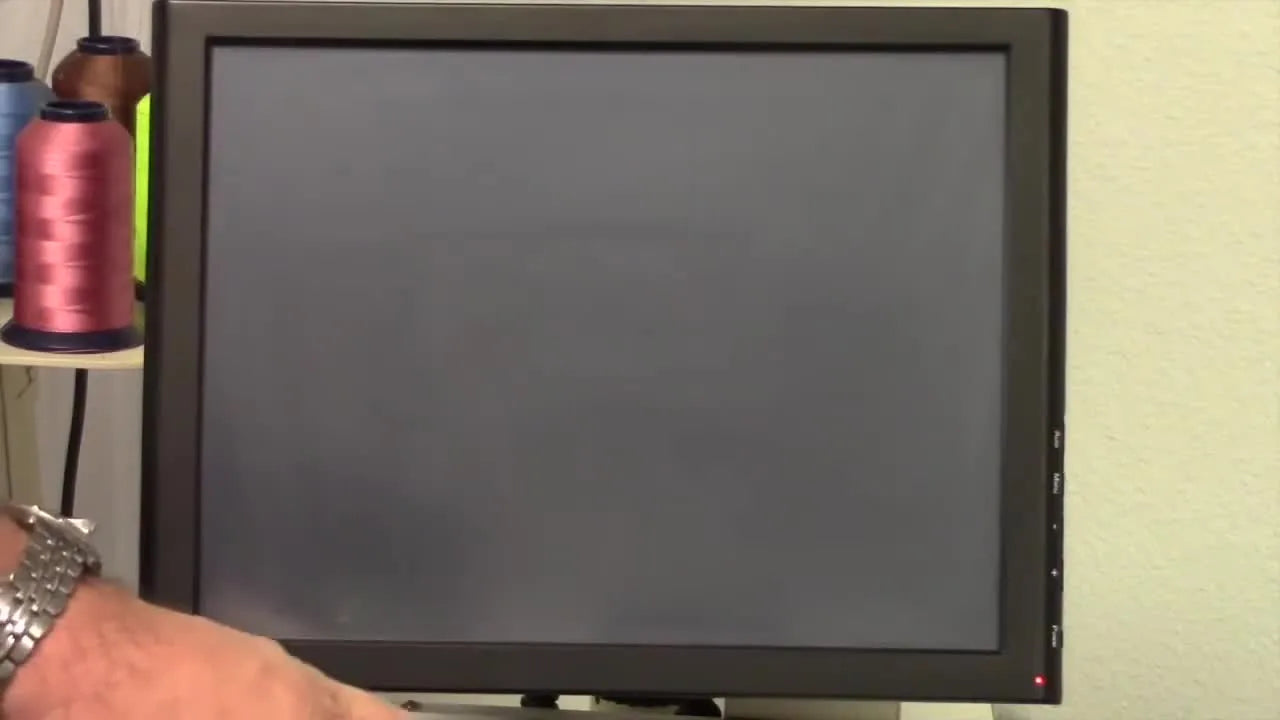

The 3-Second Timing Trick: Entering SWF Install Mode from the Cowin.FA Splash Screen

This is the key move the video demonstrates, and it relies on rhythm.

1. Power On: Flip the main switch and let the machine begin booting.
2. Observe: Watch the screen cycle through the boot sequence. You’ll see BIOS text, white letters on black backgrounds, similar to an old PC booting up.
3. The Trigger Moment: The moment the graphical Cowin.FA splash screen appears (it usually looks like a logo over a blue or white background), Action: Press and hold your stylus firmly on the center of the screen.
4. Hold: Keep pressure for about 3 seconds. You are interrupting the auto-boot sequence.
5. Release: Release when the screen changes into the install menu (the video shows a menu titled like a program/install interface with grey buttons).

This “press-and-hold at splash” method is the doorway into the backend menu—no password, no hidden button combination like "Up + Down + Enter." If you’re working on a swf machine with the 17-inch panel, this is the fastest way to regain control after a parameter mismatch.

Getting to PARA SET on the SWF Install Menu Without Mis-taps

Once you’re in the install menu, your pulse might be racing, but you must slow down. The interface is utilitarian and unforgiving. The video navigates to the parameter list like this:

1. Locate: On the main install screen, look for the SYSTEM UTIL area (usually on the right side).
2. Action: Tap PARA SET firmly with your stylus. Listen for the faint "beep" or the visual depression of the button graphic.

You should land on a Machine Information style list where values appear in green boxes. These green boxes represent the machine's current "brain state."

Setup Checklist (right after PARA SET opens)

• Verify Screen: Confirm the header reads Machine Information or similar, and you see a list of numbered parameters.
• Stabilize Hands: Use the stylus for accuracy—especially if your shop is dusty or your hands are oily from routine maintenance.
• Read-Only First: Read each line before changing anything. You are about to edit the three settings that matter most in this video. Do not scroll blindly.

Head Select on SWF: The Setting That Can Instantly Trigger ERROR #105

Inside the parameter list, the video goes straight to the most common culprit: HEAD SELECT.

What to do (exactly as shown)

1. Identify: Tap 1. HEAD SELECT.
2. Select: A sub-menu will appear. Choose the option that matches your physical machine. (The video demonstrates selecting a multi-head option as an example, then later correcting back to 1 head).

Why this is critical: If you set this wrong, the control system will look for "Head 2" stop switches, "Head 2" thread break sensors, and "Head 2" trimmers. When it doesn't receive voltage signals from those non-existent components, it panics. On a swf commercial embroidery machine, that results in a hard stop that looks like a mechanical failure but is purely digital.

Expected outcome

• Visual Confirmation: The green value box next to HEAD SELECT updates to your chosen head count (e.g., "1").

Technician note (why this matters)

Multi-head machines have complex circuit loops for safety (the stop bar). If the software expects a closed circuit from Head 4 and sees an open circuit (because there is no Head 4), it assumes the emergency stop is pressed or a switch is broken.

Needle Select on SWF: Match 12 Color vs 15 Color Before You Load Designs

Next, the video sets NEEDLE SELECT. This seems trivial, but it affects the machine's color change motor logic.

What to do

1. Identify: Tap 2. NEEDLE SELECT.
2. Select: Choose the needle/color count that matches your machine (the video shows options like 12 Color and 15 Color).

On a swf 12 needle embroidery machine, this is non-negotiable. If the control thinks you have 15 needles, and you send a design with color #14, the machine will attempt to rotate the needle bar past its physical limit, potentially grinding gears or throwing a "Needle Position" error.

Expected outcome

• Visual Confirmation: The green value box updates to the selected needle count.

Wheel Type Select (Ratchet) on SWF: 18 Hole vs 50 Hole Isn’t a “Preference”—It’s Sensor Logic

The video calls out one more setting as the other critical one: WHEEL TYPE SELECT. This is the most technical setting of the three and the easiest to get wrong.

What the video says to choose

• 50 HOLE RATCHET: Choose this only if your machine is equipped with the specific “wagon wheel” style sensors (large external discs with many slots).
• 18 HOLE RATCHET: For most older machines, standard configurations, or spring sensors, this is the correct setting.
• The Safe Bet: If you are unsure and cannot open the machine casing to check, the video recommends 18 HOLE as the safer default for older/spring-sensor setups.

This is where owners get burned: they assume “50 is a bigger number, so it must be better/newer.” It’s not better—it’s just different math. The controller interprets motion feedback (how far the shaft has turned) based on counting pulses.

Expert insight (the “why,” in plain shop language)

A ratchet/wheel sensor is essentially a feedback system (an encoder). It tells the computer "I have moved 1 degree."

• If the machine moves 1 inch, the 18-hole sensor sends X pulses.
• The 50-hole sensor sends Y pulses.

If you tell the machine you have a 50-hole sensor but you actually have an 18-hole sensor, the machine will move much further (or shorter) than it thinks it did. This manifests as odd stops, "jump stitch" errors, or the pantograph moving while the needle is down.

Save Like a Pro: The SWF Machine Setting Report Is Your Last Safety Net

You've made your changes. Now, you must "seal" them into the memory.

1. Commit: Press OK (usually top right corner).
2. Review: The screen will display a MACHINE SETTING REPORT. This is a summary screen. Do not skip this.
3. Finalize: Press OK again to save and boot the system.


Operation Checklist (before you hit the final OK)

• Head Count: Does "HEAD: 1" (or your number) match the iron sitting in front of you?
• Needle Count: Does "NEEDLE: 12" match the needle case?
• Wheel Type: Did you default to 18 HOLE unless you are 100% sure you have the 50-hole upgrade?
• The "Out Loud" Rule: Read the summary screen out loud. "I have a 1-head, 12-needle machine with 18-hole sensors." If that sentence is true, hit OK.

The “Scary Pink Box” Explained: Fixing SWF ERROR #105 STOP Switch Error Fast

The video intentionally creates a mismatch to demonstrate the consequence of skipping the checklist.

Symptom

The machine boots, but immediately displays a large pink error box: “ERROR #105 STOP Switch Error !”

Cause (as demonstrated)

The software was set to 4 HEAD, but the physical machine is a single head unit. The controller is frantically looking for the Stop Switch signal from Heads 2, 3, and 4. Finding silence (open circuits), it triggers a safety shutdown.

Fix (the exact recovery path)

1. Reboot: Power cycle the machine.
2. Re-Enter: Use the splash-screen trick (Press and hold on Cowin.FA for ~3 seconds).
3. Navigate: Go to PARA SET.
4. Correct: Change HEAD SELECT back to 1 HEAD.
5. Verify: Confirm the report and boot.




Expected outcome

The machine boots, the pink box is gone, and you see the normal operation interface ready for a design.

Troubleshooting Map: When SWF Parameters Are Wrong, the Symptoms Lie

Parameter problems are frustrating because the symptom often points you toward hardware—when the real issue is configuration. Here is a logic map to help you diagnose quickly.

If you run a shop with multiple operators on swf industrial embroidery machines, this troubleshooting map should be taped to the wall. The fastest fix is the one you can do without calling a tech.

A Practical Decision Tree: Choosing Stabilizer + Hooping Strategy After You’re Back Online

This video is about parameters, but let's be honest: once the machine boots, the battle isn't over. The number one reason machines stop after a successful boot isn't software—it's hooping physics.

Here is a decision tree to ensure your physical setup matches your newly fixed digital setup.

Decision Tree (Fabric → Stabilizer → Hooping approach):

1. Is the fabric stretchy (Knits, Polos, Performance Wear)?
   • Yes: YOU MUST use a Cutaway stabilizer. No exceptions. Tearaway will separate during high-speed stitching on an SWF, causing registration errors (outlines not matching fill).
   • Hooping Tip: Do not pull the fabric "drum tight." It should be neutral.
   • No: Go to Step 2.
2. Is the fabric unstable/slippery (Silks, Rayon, Windbreakers)?
   • Yes: Use a fusible stabilizer or spray adhesive to bond the fabric to the backing. Reduce hoop stress.
   • No: Go to Step 3.
3. Is the item bulky or awkward (Carhartt Jackets, Thick Bags, Seams)?
   • Yes: This is the danger zone for "Hoop Burn" and popping out of the hoop. Standard hoops struggle here.
   • The Upgrade: Prioritize a magnetic hooping system that clamps vertically rather than squeezing horizontally.

This is where the right tooling becomes a productivity upgrade rather than a luxury. If you’re constantly fighting hoop burn or slippery garments, upgrading to hoops for swf embroidery machine that clamp magnetically can reduce re-hooping and scrap by 30%.

Warning: Magnetic Field Hazard. Magnetic hoops contain powerful industrial magnets. Keep them away from pacemakers, implanted medical devices, and sensitive hard drives. Never let the rings snap together uncontrolled—pinch injuries can break fingers. Always use the provided spacers.

The Upgrade Path That Actually Makes Sense: From “It Boots” to “It Produces”

Once your SWF is configured correctly, the next bottleneck is automation. A machine that runs perfectly 10% of the day because you are spending 90% of the day hooping is not profitable.

Here’s the practical progression I recommend in real shops to maximize output:

1. Level 1: Accuracy (The Stylus). Stop using your fingers on the screen. It preserves the touch membrane and prevents parameter errors.
2. Level 2: Speed (Hooping). If your team spends more time loading than stitching, consider upgrading to swf embroidery machine hoops that utilize magnets used by professionals. This solves the "thick fabric" issue instantly.
3. Level 3: Scale (Multi-Head/Multi-Device). If you are running long shifts on a single head and turning down large orders (50+ pieces), you have hit a hardware ceiling. This is when a SEWTECH multi-needle machine becomes the logical next step—moving from "crafting" to "manufacturing."
4. Level 4: Standardization. Use high-quality stabilizers and threads consistently. A machine setup for cheap thread will break high-quality thread (tension differences) and vice versa. Pick a lane and stick to it.

The Technician’s Wrap-Up: The Three Settings That Keep SWF Stable

If you remember nothing else, memorize this "Holy Trinity" of settings from the video. These correct 90% of boot failures:

1. HEAD SELECT: Must match the physical metal.
2. NEEDLE SELECT: Must match the color count.
3. WHEEL TYPE SELECT: Default to 18 HOLE for safety unless verified otherwise.

Get those right, visually confirm them on the Machine Setting Report, and your SWF will boot cleanly.

If you are maintaining a fleet of machines, treat parameter access like a controlled surgery: scrub in (clean hands), use the right tool (stylus), follow the checklist, and confirm the patient is stable before walking away. That discipline prevents the kind of "random" downtime that destroys deadlines.

FAQ

• Q: How can an SWF 17-inch touch panel enter Install Mode from the Cowin.FA splash screen when SWF settings are wrong after a control box or screen change?
  A: Press and hold the center of the screen for about 3 seconds exactly when the Cowin.FA splash screen appears.
  • Power on the SWF machine and watch the boot sequence until the Cowin.FA logo/splash shows.
  • Press firmly with a stylus (not a finger) on the center of the resistive screen and hold ~3 seconds.
  • Release when the install menu appears, then go to SYSTEM UTIL → PARA SET.
  • Success check: the screen switches from the splash screen to an install/program menu with tappable buttons.
  • If it still fails: reboot and try again—timing and firm pressure matter on resistive panels, and a stylus tip is much more reliable than a fingertip.
• Q: What SWF PARA SET values should be verified first to prevent SWF boot failures and phantom hardware symptoms on an SWF 17-inch touch panel?
  A: Verify the “Holy Trinity” first: HEAD SELECT, NEEDLE SELECT, and WHEEL TYPE SELECT.
  • Open Install Mode → SYSTEM UTIL → PARA SET, then read before changing anything.
  • Set HEAD SELECT to match the physical head count (single head vs multi-head).
  • Set NEEDLE SELECT to match the physical needle/color count (12 vs 15).
  • Default WHEEL TYPE SELECT to 18 HOLE unless the sensor type is confirmed as the 50-hole “wagon wheel” style.
  • Success check: the green value boxes update to the chosen values and the Machine Setting Report matches the real machine when read out loud.
  • If it still fails: re-enter PARA SET and re-check the Machine Setting Report—most repeat issues come from one value not matching the hardware.
• Q: How can an SWF embroidery machine fix “ERROR #105 STOP Switch Error” (pink box) caused by incorrect HEAD SELECT on the SWF 17-inch touch panel?
  A: Reset HEAD SELECT to the real head count (commonly back to 1 HEAD on a single-head unit) and save via the Machine Setting Report.
  • Power cycle the machine to clear the locked error state.
  • Enter Install Mode at the Cowin.FA splash screen (press-and-hold ~3 seconds).
  • Go to PARA SET → HEAD SELECT and choose the correct head count.
  • Press OK, review the Machine Setting Report, then press OK again to save and boot.
  • Success check: the machine boots to the normal operation interface with no pink ERROR #105 box.
  • If it still fails: confirm the saved report actually shows the corrected head count before exiting—do not skip the report screen.
• Q: What should be changed on an SWF machine when SWF needle bar over-rotates or grinds after loading designs due to incorrect NEEDLE SELECT (12 Color vs 15 Color)?
  A: Set NEEDLE SELECT to the machine’s real needle/color count before running any design.
  • Enter Install Mode → PARA SET → NEEDLE SELECT.
  • Choose the correct option that matches the physical needle count (for example, 12 Color on a 12-needle machine).
  • Save through the Machine Setting Report (OK → review → OK).
  • Success check: the green value box shows the correct needle count and color changes no longer try to rotate beyond the machine’s physical range.
  • If it still fails: stop running designs and re-verify the needle count physically—do not guess based on what the screen “used to be.”
• Q: How can an SWF embroidery machine correct “jump errors,” drift, or confused motion after a parameter reset by setting the correct WHEEL TYPE SELECT (18 HOLE vs 50 HOLE RATCHET)?
  A: Set WHEEL TYPE SELECT to match the actual sensor style; if unsure, use 18 HOLE as the safer starting point for older/spring-sensor setups.
  • Enter Install Mode → PARA SET → WHEEL TYPE SELECT.
  • Select 50 HOLE RATCHET only if the machine truly has the external “wagon wheel” style sensor disc.
  • Otherwise select 18 HOLE RATCHET, then save via the Machine Setting Report.
  • Success check: motion feedback behaves normally (no “confused” jumping/drift behavior tied to movement feedback).
  • If it still fails: pause production and visually inspect the sensor area if accessible, then match the setting to the hardware—wrong encoder math can mimic mechanical faults.
• Q: What safety rules should be followed when rebooting an SWF commercial embroidery machine and entering PARA SET on the SWF 17-inch touch panel?
  A: Treat every reboot like the machine can move unexpectedly and keep clear of moving parts during power cycles.
  • Keep hands, sleeves, lanyards, and tools away from the head and pantograph area while powering on/off.
  • Use a stylus or blunt plastic tip for the resistive screen to avoid mis-taps that can create new problems.
  • Read settings before changing them; avoid “blind scrolling” in PARA SET.
  • Success check: parameter changes are deliberate, and the machine completes boot without unexpected movement-related near-misses.
  • If it still fails: stop and reset the approach—most “worse after I tried to fix it” cases come from a mis-tap, not a broken part.
• Q: When should an SWF shop upgrade from standard hoops to magnetic hoops, and when is a SEWTECH multi-needle machine the next step after SWF parameters are stable?
  A: Upgrade in layers: optimize technique first, switch to magnetic hooping when hooping is the bottleneck, and consider a multi-needle/multi-head solution when order volume exceeds single-head capacity.
  • Level 1 (Technique): Use a stylus for setup accuracy and follow the Machine Setting Report checklist every time settings are touched.
  • Level 2 (Tooling): If thick/bulky items cause hoop burn or frequent pop-outs, switch to magnetic hoops to clamp vertically and reduce re-hooping and scrap.
  • Level 3 (Capacity): If a single head is running long shifts and the shop is turning down 50+ piece orders, that is a sign a SEWTECH multi-needle machine may be the practical scale step.
  • Success check: downtime shifts from “constant re-hooping and stops” to predictable loading + stable running, with fewer resets and less scrap.
  • If it still fails: re-check stabilizer and hooping choices for the fabric type (cutaway for stretchy knits; bonding help for slippery fabrics) before assuming the machine is the limiting factor.
