Stop Wasting Water-Soluble Stabilizer: Patchwork Hooping in a Brother 4x4 Hoop (Plus the Bobbin “Shadowing” Fix for FSL Earrings)

If you have ever stared at a pile of expensive water-soluble stabilizer scraps and thought, "That looks like money in the trash," you are experiencing the universal pain of the Freestanding Lace (FSL) embroidery artist.

FSL is an unforgiving medium. Unlike standard embroidery where fabric forgives minor tension errors, in FSL, the stabilizer is the fabric. A single weak spot, a gap in your hoop coverage, or a "butt seam" that separates can turn hours of machine time into a bird's nest of thread.

However, throwing those scraps away is unnecessary profit loss. This guide reconstructs a workflow built around a simple yet high-stakes idea: patchworking scraps into a functional "sheet" to stitch intricate items like turkey earrings. We will elevate this "macGyver" technique with professional safety protocols, precise empirical data, and a clear path to upgrading your tooling when you are ready to scale from "hobbyist" to "production studio."

Don’t Toss Water-Soluble Stabilizer Scraps Yet—Understanding the Physics of "Good Material"

To a novice, a wrinkled piece of Water-Soluble Stabilizer (WSS) looks like waste. To a master, it is raw inventory.

The structural requirement for FSL is not a pristine, continuous manufacturing sheet; it is continuous tension under the needle path. As long as the fibers or film support the stitch formation without gaps, the machine does not care if the stabilizer is one piece or three.

The Material Science: Film vs. Fiber

Before you start, identify your scrap type.

• Fibrous WSS (Vilene type): Looks like fabric mesh. Best for this T-pin method as it grips the pins.
• Film WSS (Plastic type): Looks like saran wrap. Caution: This tears easily if pinned. If using film scraps, you typically need at least 80-micron thickness (heavy weight) to use the patchwork method safely.

The creator in our source material keeps a dedicated bag labeled "Dissolve Later." This is not hoarding; it is supply chain management. However, be aware that scraps from dense designs often have "stress memory"—micro-perforations or heat warping.

The "Hidden" Prep Before You Hoop Scraps: The Pre-Flight Safety Protocol

Before you even touch a hoop, you must perform a "Pre-Flight Check." FSL fails 90% of the time because of setup errors, not machine malfunction.

1. The Needle Logic

You are stitching through thick thread and stabilizer, not woven fabric.

• Success Standard: Use a Size 75/11 Sharp or Organ 75/11 needle. Avoid Ballpoint needles; they can push the stabilizer rather than piercing it, causing registration errors.
• Replacement Rule: Install a fresh needle. A dull burr on an old needle can shred your delicate WSS patchwork instantly.

2. The Speed "Sweet Spot"

Although your machine might claim 1000 stitches per minute (SPM), speed is the enemy of patchwork stabilizer.

• Beginner Sweet Spot: 400 - 600 SPM.
• Why: Slower speeds reduce the "flagging" (bouncing) of the stabilizer, preventing your patchwork layers from shifting under the vibration.

3. The Thread & Bobbin Plan

FSL is a 360-degree product. The back is as visible as the front.

• The Trap: Using standard white bobbin thread.
• The Fix: You must match the bobbin thread color to the top thread. If using a single-needle machine with a brother 4x4 embroidery hoop, this means winding multiple bobbins before you start.

Prep Checklist: The "Go/No-Go" Criterion

• Inventory: Confirm WSS scraps are sufficient to cover the hoop with 15mm (0.5 inch) overlaps.
• Tooling: Locate T-pins or a magnetic solution. Locate a "Pusher Tool" (wooden skewer/chopstick).
• Design Hygiene: Inspect the file. Are satin borders at least 2.5mm - 3mm wide? (Thinner borders risk structural failure).
• Machine: Install a fresh 75/11 Sharp needle. Clean the bobbin case of lint (FSL creates high lint).
• Consumables: Heat iron to "low/synthetic" and prepare a drying towel.


Warning: Mechanical Safety Hazard
NEVER use your fingers to press down lifting stabilizer flaps while the machine is running. A standard embroidery needle moves at ~10-15 cycles per second. If a flap lifts, loop it down with a wooden skewer or chopstick. Keep hands clearly outside the strike zone (the red beam area).

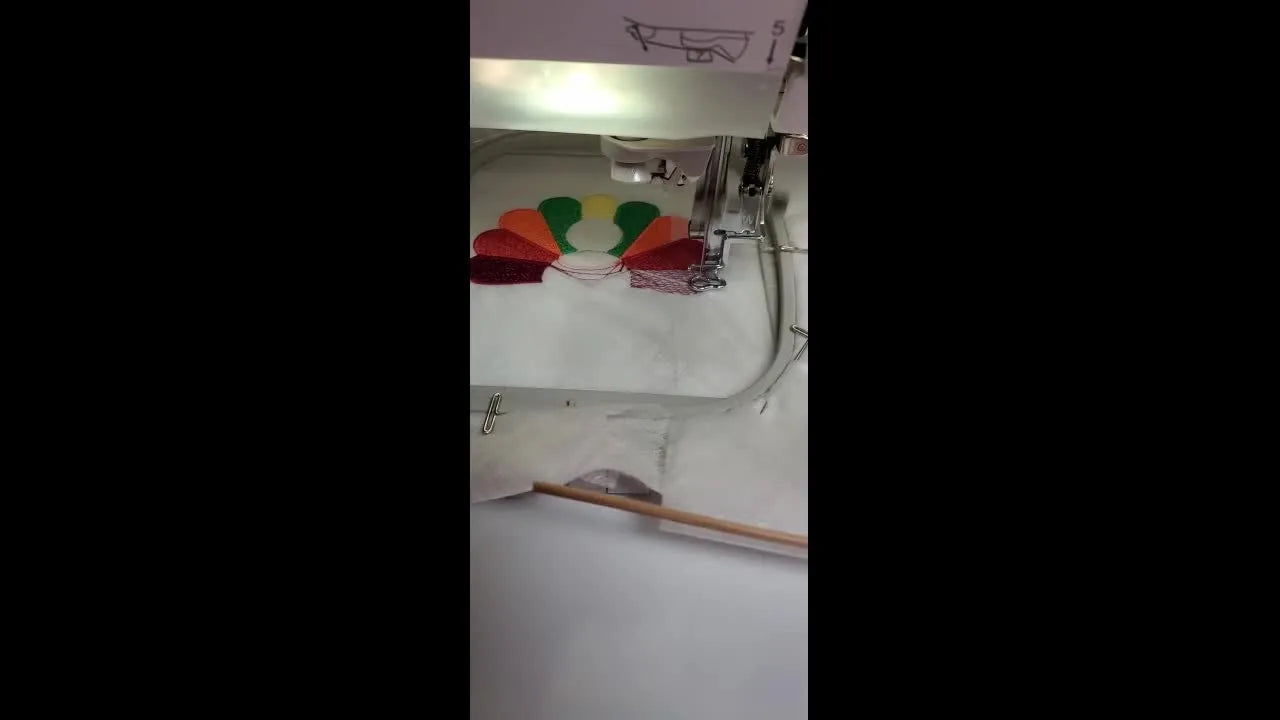

The T-Pin Patchwork Method: Structural Engineering Inside the Hoop

This is the core technique: building a composite surface that acts like a solid drum skin.

The creator layers horizontal strips across the hoop, folding excess over the frame, and secures them with T-pins. This works, but it requires strict adherence to the "Perimeter Rule."

Step-by-Step Construction

1. Foundation Layer: Lay strip #1 across the center of the hoop. It must span edge-to-edge.
2. Reinforcement Layers: Add strip #2 and #3 above and below, creating a "shingle" effect.
3. The Tension Fold: If a scrap hangs off the edge, fold it over the outer rim. This creates friction and creates a tighter grip when the inner hoop mates with the outer hoop.
4. The Pin Lock: Insert T-pins around the perimeter only.
   • Sensory Check: The stabilizer should feel taut, like the skin of a ripe fruit. If you push on it and it leaves a permanent dent or sags, it is too loose. Remount.


The Overlap Physics (Crucial)

The video emphasizes "generous overlap," but let's quantify that.

• Minimum Overlap: 15mm - 20mm.
• The "Butt Seam" Danger: Never let two scraps merely touch edge-to-edge. The needle will stitch right between them, pushing them apart like a zipper opening.
• Junction Security: If a heavy satin column (like the body of the turkey) is designated to stitch exactly over a seam, add a "floating" patch of WSS on top of that area for triple security.

Setup Checklist: The Integrity Test

• Visual Scan: No visible "open windows" in the hoop area. Even a 1mm gap invites disaster.
• Seam Check: Every seam has at least 15mm of overlap.
• Clearance Check: Turn the handwheel (or layout check) to ensure the embroidery foot will not strike a T-pin. T-pins must be on the extreme periphery.
• Tension Test: Tap the stabilizer lightly. It should sound like paper, not soggy cloth.


The Digitizing Fix: Why Width Equals Strength

If your FSL crumbles in the sink, it is rarely the water's fault. It is usually geometry. In the video, the creator widens the satin stitch around the feather blocks.

The Engineering Principle: In FSL, stitch density provides color, but stitch width provides structure.

• Narrow Satin (<1.5mm): The thread tension pulls the stabilizer perforations into a long cut, acting like a perforated stamp edge. The lace tears away.
• Wide Satin (>3mm): The needle penetrations are spaced far enough apart that the stabilizer between them holds strong until dissolved.

Action Item: If you download a standard design to convert to FSL, use your software (Wilcom, Hatch, Embrilliance) to increase the satin column width by 15-20% or set a minimum width of 2.5mm.

Active Supervision: The "Chopstick Protocol"

Patchwork hooping is not a "set it and forget it" workflow. Because the scraps are layered, the embroidery foot can catch the edge of a top layer (a "flap") during a travel motion.

The Risk: If the foot catches a flip, it will either drag the hoop (ruining registration) or snap the needle.

The Solution: The "Chopstick Trick." Stand by the machine. If you see the foot approaching a loose flap edge to jump over it, use a wooden skewer to gently hold the flap flush against the stabilizer.

When to Hover

• High Risk: During long jump stitches (traveling from one feather to another).
• Auditory Cue: Listen for a rhythmic "thump-thump." This often means the foot is hitting a T-pin or a thick overlap ridge. Pause immediately.
• Visual Cue: If the layout creates a "tunnel" between two layers, watch the foot carefully as it exits the tunnel.


The Bobbin "Shadowing" Problem: Achieving 360-Degree Beauty

Standard embroidery assumes the back is hidden against the skin or interfacing. FSL is naked. The creator highlights the issue of white bobbin thread peeking through to the front (shadowing).

The Technician's Fix

1. Tension Balance: For FSL, you want the top and bobbin threads to meet inside the nonexistent fabric layer. You may need to tighten your top tension slightly (e.g., from 4.0 to 4.4) or loosen the bobbin slightly, but matching colors is the ultimate cheat code.
2. Color Matching: On a single-needle machine, this requires discipline. Every time you change the top thread color (e.g., from Turkey Red to Brown), you must swap the bobbin to match.


Expert Note: If you sell these item, clients will look at the back. Mismatched bobbins scream "amateur," while matched bobbins justify a premium price point.

The Rinse & Dry Protocol: Controlling Stiffness

The "water-soluble" label is misleading. We don't want it fully dissolved. We want it mostly dissolved. The residue is your stiffener.

The Process:

1. Trim First: Cut away excess stabilizer before wetting. The less goop in the sink, the better.
2. The "Slimy" Test: Rinse under warm water. Rub the lace between fingers.
   • Too Stiff: Feels gritty/crunchy. Rinse more.
   • Too Soft: Feels like wet fabric (no slime). You rinsed too much (fixable with spray starch, but not ideal).
   • Perfect: Fingers feel slightly slippery/soapy.
3. Thermal Setting: Pat dry with a paper towel. Then, press with an iron (no steam) between two layers of cotton towel. This "bakes" the remaining dissolved stabilizer into a hard starch, locking the shape.




Thread Trimming: The Difference Between $5 and $25 Earrings

In FSL, a thread tail is not just a nuisance; it is a structural flaw. A tail caught in the lace structure can cause the weave to unravel during the wash.

The Discipline:

• Entry Tails: Hold the thread tail for the first 3-4 stitches, then pause and trim it flush before the machine continues.
• Exit Tails: Trim jump stitches immediately. Do not wait until the end.


Operation Checklist: The Final QC

• Trimming: Start and end tails are flush; no "eyelashes" sticking out.
• Structure: Pull gently on the lace borders. They should feel firm, not stretchy.
• Aesthetics: No white bobbin thread visible on the borders.
• Residue: The piece holds its shape against gravity when held by one edge.


A Simple Decision Tree: When to Patchwork vs. When to Upgrade

Patchwork hooping with T-pins is an excellent skill for sustainability, but it has a "hidden cost"—your time and physical effort. Use this logic gate to decide your workflow:

Scenario A: The Hobbyist / Prototype

• Volume: 1-3 items.
• Goal: Saving money, using scraps, personal gifts.
• Verdict: Use the Patchwork Method. It is practically free.

Scenario B: The "Side Hustle" Batch

• Volume: 10-50 items (e.g., Craft Fair Inventory).
• Pain Point: Hand strain from pinning; T-pins flying across the room; fear of hoop burn.
• Verdict: Upgrade Tools (Level 1).

Scenario C: The Production Run

• Volume: 50+ items or regular weekly orders.
• Pain Point: Constant thread changes; machine downtime during hooping.
• Verdict: Upgrade Machine (Level 2).

The Upgrade Path: Solving the Friction Points

If you find yourself dreading the pinning process or fighting with T-pins, the industry offers specific solutions to these mechanical bottlenecks.

Level 1: The Magnetic Revolution (Speed & Safety)

The biggest risk in the video's method is the T-pin. It punctures the stabilizer and poses a strike risk. The modern solution is the Magnetic Hoop.

Terms like magnetic embroidery hoop refer to systems that use powerful magnets to clamp the stabilizer layers together.

• Why it wins for scraps: You can overlap your scraps and simply "snap" the magnets down. The magnets hold the overlap flat without puncturing the material.
• Hoop Burn: They eliminate "hoop burn" (the ring mark) because they don't force material into a groove.
• Compatibility: Many users specifically search for magnetic embroidery hoops for brother or magnetic hoop for brother pe800 to retrograde their single-needle machines with this industrial-grade holding power.

Warning: Magnetic Field Safety
Commercial magnetic hoops utilize Neodymium (Rare Earth) magnets. They are incredibly strong.
1. Pinch Hazard: They can snap together with enough force to bruise skin or break fingernails. Slide them apart; don't pry.
2. Medical Danger: Keep at least 6 inches away from pacemakers or insulin pumps.

Level 2: The Station Solution (Consistency)

If you are doing logos or precise placement, you might look into hooping stations. While less critical for scrap FSL, for garments, a system like the hoop master embroidery hooping station ensures that every single design lands in the exact same spot, reducing the "re-hooping" frustration by 80%.

Level 3: The Multi-Needle Leap (Profitability)

The video highlights the pain of bobbin matching and thread changings. If you are serious about FSL production, a machine like the SEWTECH Multi-Needle series solves this. You can set up 15 colors at once. The machine handles the swaps automatically while you prep the next hoop. This is the shift from "Making" to "Manufacturing."

Troubleshooting the "Why Did It Fail?" (Symptom → Cure)

Conclusion: Turning Waste into Inventory

The gap between a frustrating mess and a profitable product is often just a process. By treating your WSS scraps as engineered building blocks rather than trash, and by respecting the physics of the machine (speed, tension, width), you can produce FSL turkey earrings—and hundreds of other designs—virtually for free.

Start with the T-pins. Master the feel of the tension. And when your sales justify it, look toward those magnetic hoops for embroidery machines to save your hands and speed up your workflow. The machine doesn't care if the stabilizer was a single sheet or a patchwork quilt; it only cares that you built a solid foundation.

FAQ

• Q: What needle type and size should be used for Freestanding Lace (FSL) embroidery on water-soluble stabilizer scraps?
  A: Use a fresh 75/11 Sharp (for example, an Organ 75/11); avoid ballpoint needles for FSL on water-soluble stabilizer scraps.
  • Install: Put in a brand-new 75/11 Sharp needle before starting (old burrs can shred WSS patchwork).
  • Avoid: Do not use ballpoint needles because they can push the stabilizer instead of piercing it, causing registration issues.
  • Clean: Remove lint from the bobbin area before the run (FSL tends to create high lint).
  • Success check: Stitches form cleanly without tearing lines in the stabilizer and without sudden shredding at overlaps.
  • If it still fails… Slow the machine down to the 400–600 SPM range and re-check hoop tautness over seams.
• Q: What embroidery speed (SPM) is safest for FSL embroidery when hooping water-soluble stabilizer scraps with a T-pin patchwork method?
  A: A safe starting point is 400–600 SPM to reduce stabilizer “flagging” and shifting during patchwork FSL.
  • Set: Drop speed into the 400–600 SPM range before stitching dense areas or long travel sections.
  • Watch: Pay extra attention during long jump stitches where vibration can lift a flap.
  • Stabilize: Re-hoop if patchwork layers start creeping under vibration.
  • Success check: The stabilizer stays flat (no bouncing) and outlines stay registered without drift.
  • If it still fails… Rebuild the patchwork with larger overlaps (15–20 mm) and keep T-pins strictly on the perimeter.
• Q: How much overlap is required when patchworking water-soluble stabilizer scraps for Freestanding Lace (FSL) embroidery to prevent a “butt seam” failure?
  A: Overlap each scrap by at least 15–20 mm; never butt two edges together for FSL patchwork hooping.
  • Build: Layer scraps like shingles so every seam has continuous coverage under the needle path.
  • Avoid: Do not allow edge-to-edge contact; the needle can open the seam like a zipper.
  • Reinforce: Add an extra “floating” patch on top if a heavy satin area will stitch directly over a seam.
  • Success check: No visible “open windows” in the hoop area, even tiny gaps.
  • If it still fails… Move seams away from dense satin borders when possible and re-check that the patchwork is drum-tight.
• Q: How can embroidery operators prevent an embroidery needle from striking T-pins during water-soluble stabilizer scrap patchwork hooping for FSL?
  A: Keep all T-pins on the extreme hoop perimeter and verify presser-foot clearance before running the design.
  • Place: Insert T-pins only around the perimeter, never inside the stitch field.
  • Test: Turn the handwheel (or run a layout/clearance check) to confirm the embroidery foot cannot hit any pin.
  • Pause: Stop immediately if a rhythmic “thump-thump” starts (often pin contact or a thick ridge).
  • Success check: The machine runs without pin-contact noise and without sudden needle breaks.
  • If it still fails… Reduce overlap thickness where possible and re-position pins farther outward.
• Q: What is the safest way to hold down lifting water-soluble stabilizer flaps during FSL embroidery without risking finger injury?
  A: Never use fingers near the running needle; use a wooden skewer or chopstick to hold flaps down during travel/jump areas.
  • Stand by: Actively supervise high-risk sections such as long jump stitches.
  • Press: Gently guide a lifting flap flat with a wooden skewer/chopstick only, staying well outside the needle strike zone.
  • Stop: Pause the machine if a flap starts to tunnel under the foot.
  • Success check: The presser foot clears overlaps without catching and the design stays registered.
  • If it still fails… Re-hoop for tighter tension and reduce speed to minimize vibration-driven lifting.
• Q: How do you stop white bobbin thread “shadowing” on Freestanding Lace (FSL) embroidery so both sides look professional?
  A: Match the bobbin thread color to the top thread; then fine-tune tension so the threads meet inside the lace structure.
  • Match: Swap bobbins when changing top colors (FSL is visible front and back).
  • Adjust: If needed, tighten top tension slightly (a small increase) or loosen bobbin slightly—follow the machine manual as the final authority.
  • Inspect: Check borders and satin edges where shadowing shows first.
  • Success check: No white dots or pale bobbin peek-through along the front edges.
  • If it still fails… Re-check that the stabilizer is not flagging, because movement can exaggerate tension imbalance.
• Q: When should FSL embroidery operators move from T-pin patchwork hooping to a magnetic embroidery hoop or a multi-needle embroidery machine for higher output?
  A: Use T-pin patchwork for 1–3 items, consider a magnetic hoop when pinning becomes a time/safety burden, and consider a multi-needle machine when thread changes and hooping downtime limit production.
  • Decide: If making 1–3 prototypes, patchwork is practical and nearly free.
  • Upgrade tools: If making 10–50 pieces and pinning causes hand strain or constant pin risk, a magnetic hoop can clamp overlaps without puncturing stabilizer.
  • Upgrade capacity: If producing 50+ pieces or weekly orders and thread changes dominate the workflow, a multi-needle machine reduces changeover downtime.
  • Success check: Hooping time drops, fewer restarts happen, and scrap patch seams stay flat without constant babysitting.
  • If it still fails… Standardize a pre-flight checklist (needle fresh, bobbin area clean, 15–20 mm overlaps, clearance verified) before investing further.
