Switching a Brother SE630 from Sewing to Embroidery Mode (Without Fighting the Q Foot or Getting Poked)

If you’ve ever unboxed a Brother SE630, clicked around the cheerful stitch screen, and then froze when it was time to “convert to embroidery,” you’re not alone. The anxiety is real: one wrong move and you’re imagining a bent needle, a terrifying grinding sound, or a carriage that slams into a coffee mug.

As someone who has trained thousands of operators—from hobbyists to industrial floor managers—I can tell you that machine embroidery is an "experience science." It relies on sound, feel, and sequence.

Here’s the good news: the SE630 conversion is simple once you master the two "gotchas" the machine won’t forgive—powering down before you touch the needle area, and placing the Q foot’s clear plastic arm in the specific "safe zone."

The Calm-Down Check: Confirm Your Brother SE630 Is in Sewing Mode (J Foot + Stitch Screen)

Start exactly where the video starts: turn the machine on and confirm it boots into standard sewing mode with the "J" foot attached. Do not rush this.

The Sensory Check:

• Visual: Look at the LCD. You should see sewing stitches (zig-zags, straight lines).
• Data Validation: The screen should display the default Start parameters: Stitch Width at 0.00 mm and Stitch Length at 2.5 mm.
• Auditory: The machine should hum quietly without any grinding noises upon startup.

Why I like this quick check: It proves the machine’s "brain" and "body" are talking to each other correctly before we start swapping hardware. If the screen is responsive and the machine is stable in sewing mode, you’re starting from a clean, safe baseline.

The “No Surprise Needle” Rule: Power Off the Brother SE630 Before You Touch the Presser Foot

Before you loosen anything near the needle bar, flip the side power switch to OFF. The host’s reason is the correct one: you don’t want to get poked. But there is a second, more expensive reason.

The "Why" behind the rule: Modern machines have sensitive electronic sensors in the presser bar. If you accidentally hit the "Start/Stop" button or the "Needle Up/Down" button while your screwdriver is wedged against the metal bar, you can short a circuit board or strip a gear.

Warning: Physical Safety Hazard. Never change the presser foot with the machine powered on. Your fingers are millimeters from a sharp steel needle. A sudden sensor glitch or accidental button press can send that needle through your nail—or into the metal needle plate, shattering it into dangerous flying debris.

Removing the Brother J Foot Cleanly: Disc Screwdriver + Presser Foot Lever “High-High” Lift

With the machine completely powered down, locate the disc-shaped screwdriver (the specialized round tool included in your accessory pouch). Use this to loosen the side screw holding the presser foot holder.

The video highlights a "secret" mechanical feature of the Brother SE series: the High-High Lift.

1. Lift: Raise the presser foot lever to its normal "Up" position.
2. Lift Higher: Push the plastic lever even higher with your thumb. You will feel a springy resistance. Hold it there.


What you should see (checkpoint):

• By using the extra lift, the J foot slides out harmlessly over the feed dogs.
• You do not need to force it. If it feels like it's stuck, you haven't loosened the screw enough or lifted the lever high enough.
• Tactile Feedback: The screw should turn freely once broken loose. Do not remove the screw entirely—just loosen it enough to drop the foot.

Expected outcome: The needle area is open, the screw is loose but attached, and you are ready for the precision step.

The Q Foot “Gotcha” That Saves Needles: Put the Clear Plastic Arm Over the Needle Clamp Screw

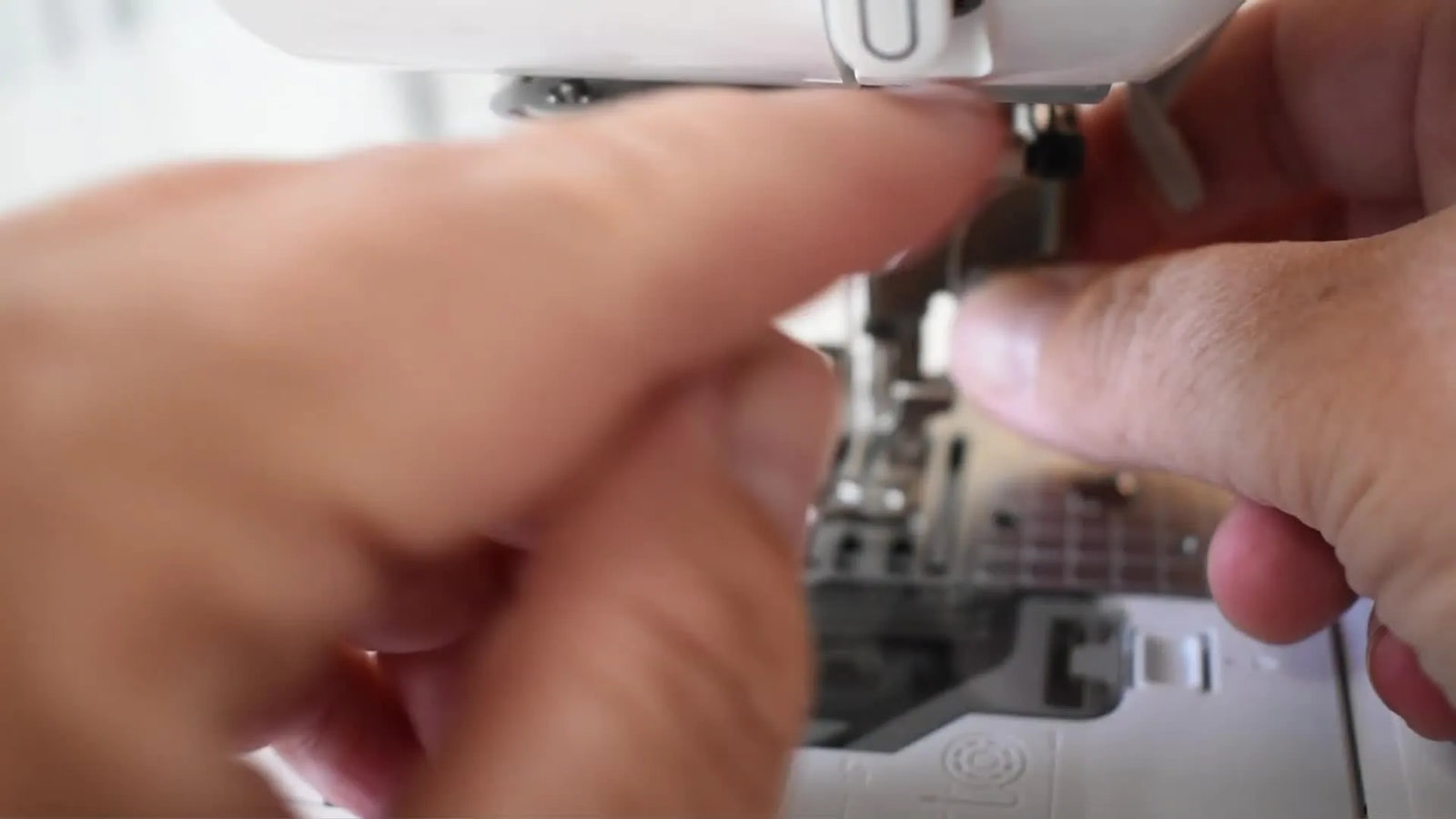

Now install the Embroidery Foot "Q". This is the single most critical step in the entire process. If you get this wrong, the needle clamp will crash into the foot, potentially bending your needle bar (a $200+ repair).

The Alignment Rule:

1. Position the Q foot so the screw slot wraps around the shank.
2. CRITICAL: The clear plastic arm on the Q foot must hook ABOVE the needle clamp screw.










The “wiggle + hold” technique (Expert Method)

The host suggests you may need to wiggle it while you get the screw in—and that’s exactly right. The Q foot has a built-in spring that pushes back against you.

• Action: Squeeze the foot upward with your left hand to compress that spring.
• Feel: You should feel the foot fighting you slightly. This tension is good—it means the foot will stabilize the fabric during stitching.
• Secure: While holding that tension, hand-tighten the screw first to catch the threads, then torque it down with the disc tool.

Checkpoint: Before you let go, look from the side. Is that plastic arm sitting on top of the needle clamp screw? If it's below or behind, stop. Unscrew and reset.

Why this matters (The Engineering Logic)

That clear plastic arm is a synchronization lever. As the needle goes up, the needle clamp screw hits that plastic arm and lifts the foot slightly, allowing the thread to form a loop. If the arm is mispositioned, the foot won't hop. You will get:

• Birds nests (huge thread tangles underneath).
• Shattered needles.
• A "thumping" sound that scares the cat.

If you are looking for a replacement hoop for brother embroidery machine, ensure you also check your Q-foot condition. A scratched or bent foot from a previous crash can snag thread even if installed correctly.

The Default Tension Reality Check: Brother SE630 Starts at 4 (Don’t Chase Problems Yet)

The video shows the machine’s default tension set to 4 right out of the box.

The Beginner's Trap: DO NOT touch this dial yet. Many forums tell you to "lower tension for embroidery." While true for advanced techniques, the SE630 is calibrated at the factory to run standard 40wt embroidery thread at tension 4.

The "H" Test (Visual Standard): Run a test later. Look at the back of the embroidery. You should see 1/3 white bobbin thread in the center, flanked by the colored top thread.

• If you see no white: Tension is too loose (tighten to 4.5).
• If you see only white: Tension is too tight (loosen to 3.5).
• Sweet Spot: Tension 3.8 to 4.2 constitutes the "Safety Zone" for 90% of standard fabrics.

If you are setting up a brother sewing and embroidery machine for the first time, establish a baseline at "4" on cotton fabric before experimenting with difficult materials.

The “Hidden” Prep Pros Do Automatically: Accessories, Bobbin, and a 30-Second Needle-Area Scan

The host mentions the machine is pre-loaded with a bobbin. Before you proceed, freeze and perform the "Pilot's Walkaround." The biggest cause of failure isn't the machine; it's debris.

Hidden Consumables & Checks:

• Bobbin Type: Ensure you are using Class 15 (SA156) bobbins. Standard metal bobbins or slightly shorter generic plastic ones will rattle and cause tension drifts.
• Needle Freshness: Install a fresh 75/11 Embroidery Needle (Red Tip is common). Sewing needles have a smaller eye and cause thread friction/shredding at high speeds.
• Clearance: Look for stray threads under the needle plate.

Prep Checklist (Do this BEFORE attaching the carriage)

1. [ ] Power: Switch resides in the OFF position.
2. [ ] Foot: J foot removed; Q foot installed with plastic arm OVER the needle clamp.
3. [ ] Security: Presser foot screw is tightened with the tool (finger-tight is not enough for the vibrations of embroidery).
4. [ ] Bobbin: Correct embroidery bobbin (60wt or 90wt bottom thread) is installed correctly.
5. [ ] Debris: Needle plate area is clear of lint and thread tails.

If you are new to hooping for embroidery machine, following this checklist religiously will save you from the dreaded "E6" error code later.

The Flatbed Storage Surprise: Slide It Off to Expose the Embroidery Unit Port

Next, remove the large flatbed attachment (the part that holds your accessories) by sliding it to the left.

Checkpoint: Once the flatbed is off, inspect the multi-pin connector port on the machine. Ensure there is no lint or dust packed into the holes. A quick puff of air here is good preventative maintenance.

Attaching the Brother Embroidery Carriage Unit: Firm Plug-In, No Half-Seated Connectors

Bring the embroidery carriage unit to the machine. Align the connector plug with the port on the machine's left side.

The Tactile Anchor: Push the unit firmly until you hear and feel a distinct CLICK.

• Bad: It feels mushy or loose.
• Good: It feels solid, like snapping a seatbelt buckle.
• Why: A half-seated connector causes intermittent data loss. The machine might stop mid-design or refuse to recognize the embroidery unit entirely.

If you are shopping for accessories like embroidery hoops for brother machines, remember that the stability of the carriage connection is what determines your registration (accuracy) more than the hoop itself.

The Startup Moment That Scares People: The Carriage Will Move (So Keep Hands Clear)

Turn the machine back ON. The LCD screen will light up, display the Brother splash screen, and present a warning message: "The carriage of the embroidery unit will move."

The Protocol:

1. Read the screen.
2. Visually sweep the desk: Is your coffee mug, scissors, or phone behind the carriage arm? Move them.
3. Tap "OK."

Warning: Pinch Hazard. The embroidery carriage moves automatically and with surprising torque during initialization. Keep hands, tools, and loose fabric clear of the arm's travel path to avoid injury or motor burnout.

Expected Outcome: You will hear the motors whir as x and y axes calibrate. The screen will change from stitch selection to the Embroidery Edit Interface (grid background).

Your First Hoop Choice on the SE630: 4x4 Area, Less Drama, Better Results

The video ends by noting you can now add your hoop. The SE630 is a 4x4 inch (100mm x 100mm) field machine. This limitation is actually a blessing for beginners—it forces you to learn stabilization on a manageable scale.

When using a standard brother 4x4 embroidery hoop, your success depends on the "Skin of a Drum" principle. The fabric should be taut enough to ring when tapped, but not so tight that the weave is distorted.

A Practical Decision Tree: Fabric → Stabilizer Choice

Stop guessing. Use this logic to prevent puckering (wrinkling around the design).

• Scenario A: Stretchy Fabrics (T-shirts, Polos, Knits)
  • The Problem: The needle punctures the fabric, pushing the knit loops apart.
  • The Solution: Cut-Away Stabilizer. You must use a stabilizer that stays permanently to support the stitches.
  • Adhesive: Use temporary spray adhesive (like Odif 505) to stick the shirt to the stabilizer.
• Scenario B: Stable Wovens (Quilting Cotton, Denim, Canvas)
  • The Problem: The fabric holds its shape but needs stiffness.
  • The Solution: Tear-Away Stabilizer. It removes easily after stitching for a clean back.
• Scenario C: Fluffy Fabrics (Towels, Fleece)
  • The Problem: Stitches sink into the pile and disappear.
  • The Solution: Water Soluble Topping (Solvy) placed on top of the fabric to keep stitches elevated.

Setup Checklist (Right after you enter embroidery mode)

1. [ ] Connection: Carriage is "clicked" in; machine screen shows the embroidery grid.
2. [ ] Clearance: 12 inches of free space to the left and rear of the machine.
3. [ ] Asset: You have a 4x4 hoop with appropriate stabilizer for your specific fabric.

If you are currently comparing the included hoop against a potentially better brother se600 hoop, prioritize mastering the technique of hooping first. No tool fixes bad physics.

Troubleshooting the Two Most Common Beginner Problems (and the Fast Fix)

Even with this guide, two specific panic moments occur for 80% of new users.

Problem 1: “I can’t get the Q foot on—there’s too much tension.”

• Symptom: The screw won't thread; the foot feels like it's springing off the bar.
• Likely Cause: You are being too gentle. The spring must be compressed.
• Fix: Use your thumb to push the foot firmly upward against the bar while turning the screw.
• Prevention: Ensure the presser foot lever is in the "High-High" position to give yourself maximum working room.

Problem 2: “The machine says 'Attach Embroidery Unit' but it is attached!”

• Symptom: Error message loop.
• Likely Cause: The connector is 95% in, not 100% in.
• Fix: Turn machine OFF. Unplug the carriage. Blow on the connectors (old school, but works to clear dust). Re-seat it with a firm push until the "Click." Turn machine ON.

The Upgrade Path That Actually Makes Sense: Faster Hooping, Less Fatigue, Cleaner Results

Once you master the setup, you will hit a new bottleneck: The Hooping Struggle. Standard plastic hoops require hand strength to tighten the screw, and they often leave "hoop burn" (creases) on delicate fabrics or crush velvet piles.

The Level-Up Solution: If you find yourself avoiding embroidery because hooping hurts your wrists or takes too long, this is the trigger to upgrade to a Magnetic Hoop.

A magnetic embroidery hoop replaces the screw-tightening struggle with strong magnets that snap the fabric into place.

• Benefit 1: Zero hoop burn (no friction rings).
• Benefit 2: Hooping takes 5 seconds instead of 2 minutes.
• Benefit 3: Essential for thick items (towels) that are hard to jam into plastic rings.

Warning: Magnetic Safety. These are industrial-strength neodymium magnets. They can pinch fingers severely if handled carelessly. Do not use if you have a pacemaker. Keep away from credit cards and hard drives.

When “Home Machine Limits” Become a Business Question

If you start taking orders for 20+ shirts, you will discover that a single-needle machine requires a thread change every few minutes. That is not a flaw; it's the design limit.

• Hobbyist: Stick to the SE630 and upgrade to magnetic hoops for comfort.
• Entrepreneur: If you are learning how to use magnetic embroidery hoop systems to speed up production, you are likely ready for a Multi-Needle Machine. These machines stitch faster, hold 6-10 colors at once, and handle caps/hats professionally—something the SE630 cannot do effectively.

In our shop, we see customers transition from frustration to profit simply by matching the tool to the volume.

Operation Checklist (Your First Stitch-Out)

Before you press the green button (Start):

1. [ ] Q Foot Check: Is the arm over the screw? (Yes, check it again).
2. [ ] Hoop Check: Inner hoop is slightly recessed below the outer hoop (preventing pop-out).
3. [ ] Path Check: Nothing is blocking the carriage arm.
4. [ ] Speed: If available, set the speed slider to Medium for your first run. Speed kills quality until you trust your stabilization.

Once you can do this conversion calmly, every future project gets easier. You are no longer "hoping it works"—you are executing a verified process. Happy stitching!

FAQ

• Q: How do I safely convert a Brother SE630 from sewing mode (J foot) to embroidery mode without getting injured or damaging the needle area?
  A: Power the Brother SE630 OFF before touching the presser foot or needle area, then keep fingers and tools clear when the embroidery carriage initializes.
  • Switch: Turn the side power switch to OFF before loosening any presser foot screw.
  • Clear: Remove scissors, mugs, phones, and loose fabric from behind/left of the carriage path before pressing “OK” on the warning screen.
  • Hold: Keep hands away while the carriage moves during startup calibration.
  • Success check: The machine boots without grinding noises and the carriage completes its movement without hitting anything.
  • If it still fails… Power OFF and re-check that nothing blocks the carriage arm travel, then restart.
• Q: How do I install the Brother Embroidery Foot “Q” on a Brother SE630 so the needle clamp does not crash into the foot?
  A: Install the Brother Q foot with the clear plastic arm positioned ABOVE the needle clamp screw, then tighten the holder screw firmly.
  • Lift: Use the presser foot lever “High-High” lift to create more room.
  • Position: Place the Q foot on the shank and hook the clear plastic arm over the needle clamp screw (not behind or below).
  • Compress: Push the foot upward (spring tension is normal) while hand-threading the screw, then finish tightening with the disc screwdriver.
  • Success check: From the side view, the clear plastic arm visibly sits on top of the needle clamp screw.
  • If it still fails… Remove the foot and reinstall—do not “force-run” embroidery if alignment is questionable.
• Q: What should the Brother SE630 upper thread tension be for first-time embroidery, and how do I judge correct tension with the “H test”?
  A: Leave the Brother SE630 at the factory default tension of 4 first, then confirm with a test stitch-out before making small changes.
  • Set: Start at tension 4 on standard 40wt embroidery thread.
  • Test: Stitch an “H” (or a small filled shape) on cotton with appropriate stabilizer.
  • Adjust: If no white bobbin thread shows on the back, tighten slightly (e.g., toward 4.5); if only white shows, loosen slightly (e.g., toward 3.5).
  • Success check: On the back of the design, about 1/3 white bobbin thread shows in the center with top thread on both sides.
  • If it still fails… Re-check Q foot installation (plastic arm over clamp screw) before chasing tension.
• Q: What prep checks should be done on a Brother SE630 before attaching the embroidery unit to prevent jams, nesting, or later errors?
  A: Do a 30-second needle-area “walkaround” first: correct bobbin type, fresh embroidery needle, and a clean needle plate area.
  • Confirm: Use Class 15 (SA156) bobbins—avoid random metal or slightly-short plastic bobbins that can rattle.
  • Replace: Install a fresh 75/11 embroidery needle (sewing needles often shred thread at embroidery speeds).
  • Inspect: Clear lint and stray thread tails from the needle plate area before switching modes.
  • Success check: The machine starts smoothly and stitches without sudden thread shredding or bottom tangles.
  • If it still fails… Stop and re-check bobbin installation and debris under/around the needle plate area.
• Q: How do I fix the Brother SE630 message “Attach Embroidery Unit” when the embroidery unit is already attached?
  A: Turn the Brother SE630 OFF, remove the embroidery unit, then re-seat the connector firmly until a solid CLICK is felt.
  • Power: Switch OFF before unplugging or plugging the unit.
  • Clean: Check the multi-pin port for lint/dust and clear it (a quick puff of air can help).
  • Re-seat: Align carefully and push until it clicks—avoid a “half-seated” mushy feel.
  • Success check: After power ON, the screen switches to the embroidery edit interface (grid background) without repeating the message.
  • If it still fails… Repeat the re-seat process and inspect the connector area again for obstruction.
• Q: How tight should fabric be in a Brother SE630 4x4 embroidery hoop to avoid puckering, and what is the “skin of a drum” success standard?
  A: Hoop fabric taut like a drum (tight but not distorted), then match stabilizer type to the fabric to prevent wrinkling around the design.
  • Hoop: Tighten until the fabric is firm and smooth; do not stretch the weave out of shape.
  • Stabilize: Use cut-away for knits, tear-away for stable wovens, and water-soluble topping on towels/fleece to keep stitches from sinking.
  • Stick: Use temporary spray adhesive when needed to keep fabric bonded to stabilizer during stitching.
  • Success check: When tapped, the hooped fabric feels taut and the finished design area stays flat without ripples.
  • If it still fails… Re-hoop and change stabilizer choice before adjusting machine settings.
• Q: When should a Brother SE630 user upgrade from standard plastic hoops to a magnetic embroidery hoop, and what magnetic hoop safety rules matter most?
  A: Upgrade to a magnetic embroidery hoop when hooping causes wrist strain, slow setup, or hoop burn—then handle the magnets like industrial tools.
  • Diagnose: If plastic hoop screws are painful/slow or leave friction rings (hoop burn), that is the upgrade trigger.
  • Use: Snap fabric/stabilizer in place with magnets to reduce hooping time and improve handling of thicker items like towels.
  • Protect: Keep fingers clear—magnets can pinch hard; do not use around pacemakers and keep away from cards/drives.
  • Success check: Hooping takes seconds and the fabric holds firmly without crease rings from tightening.
  • If it still fails… Improve hooping technique and stabilizer choice first; if production volume grows (many shirts/orders), consider moving to a multi-needle machine for workflow efficiency.
