Threads Embroidery Software Lettering Mods That Actually Stitch Clean: Lock Groups, Fix Kerning, Swap Fonts, and Rotate One Letter Without Wrecking the Word

When lettering goes wrong, it rarely fails in a dramatic way—it fails in the quiet, expensive way: a name that looks “almost centered,” a logo wordmark with one awkward gap, or a single letter that leans just enough to look amateur on a customer’s hat.

In my 20 years on the production floor, I’ve learned that clients might forgive a slightly different shade of blue, but they will never forgive a crooked name. That is where your reputation lives or dies.

This Threads Embroidery Software tutorial is packed with the exact controls you need to surgically modify text you’ve already placed: switching between Set vs. Edit modes, unlocking only part of a word, dragging letters for manual kerning, and isolated character rotation. But we are going to go deeper than just clicking buttons—we are going to connect these software moves to the physical reality of needle and thread.

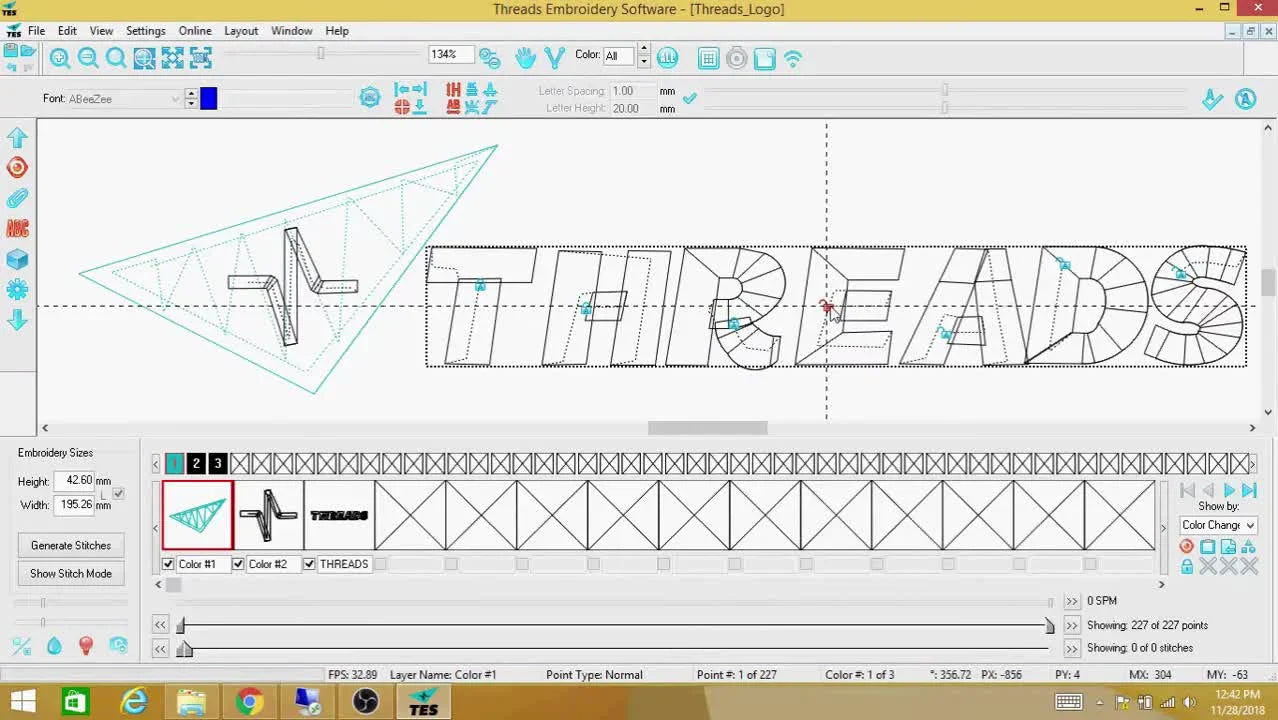

Don’t Panic: Threads Embroidery Software “Edit Lettering Mode” Is the Safe Place to Fix Ugly Text

If you’ve ever clicked around a software interface and felt like it was “fighting you,” you’re not alone. This usually happens because of a cognitive mismatch: you think you are "typing," but the software thinks you are "designing."

In Threads, the biggest mental shift is understanding that the Lettering icon has two personalities: one for placing text, and one for modifying text that already exists.

Here’s the calm, repeatable rule to engage the correct mode:

1. Click the Lettering icon once to bring up the lettering toolbar.
2. Click the Lettering icon a second time to enter Lettering Editing Mode.
3. Visual Anchor: Look for the yellow cursor attached to your mouse pointer.




The Sensory Check: When that yellow cursor appears, the interface changes behavior. You can hover over existing letters, and they will highlight individually. If you don’t see the yellow cursor, stop. Do not click. You are likely in "creation" mode and will accidentally drop new text on top of your old text.

Warning: Basic Safety. When you are editing detailed lettering, your focus is entirely on the screen. It is easy to absent-mindedly rest your hand near the machine if it is close by. Always ensure your embroidery machine is fully stopped or powered down during heavy software editing to avoid accidental engagement. Keep your hands clear of the needle bar area.

Prep Checklist (Do this *before* you touch kerning)

• Mode Verification: Is the yellow cursor visible? (Yes/No)
• Scope Definition: Identify if you need to move one letter, part of a word, or the whole word.
• Reference Check: If this is a logo match, do you have the customer's PDF open on a second screen/phone?
• Backup: If this is for a paid order, duplicate the design file (Ctrl+C / Ctrl+V) so you have a "safe" copy to revert to.
• Hidden Consumable Check: Do you have your fabric marker or alignment stickers ready? Software precision means nothing if the shirt is hooped crooked.

The Lock Icons Above Each Letter: How Threads Groups Text So You Don’t Accidentally Break It

Threads protects your lettering by default using a locking mechanism—think of it as “grouping with guardrails.” In editing mode, you’ll see small locks above the text.

The video shows two key ways to unlock these guardrails:

1. Double-click a lock to unlock a single, specific letter.
2. Right-click a lock to open a context menu with broader options like unlocking all letters, unlocking letters after a selected point, or unlocking an entire word.


Why this matters in real embroidery: Most spacing problems are local. A "W" next to an "A" often looks too far apart due to the geometry of the letters. You usually don’t want to disturb the entire word—just that one trouble spot.

Practical example from the video: unlocking only the tail end of the word “THREADS” so you can create a gap between R and E without shifting the earlier letters.

What Success Looks Like: Unlocked letters lose the red cross-hatching overlay (the video shows the cross-hatching disappearing), and those letters become selectable and movable.

Pro Production Tip: If you are doing name personalization (e.g., "Team Bride" shirts), this lock behavior is your best friend. It stops you from "chasing alignment." If you unlock the whole word, you risk knocking the start point off-center. By unlocking only the letters that need moving, you preserve the global alignment you worked so hard to set up.

The Clean Kerning Move: Unlock “All After,” Then Drag Letters Without Warping the Whole Word

Manual kerning (adjusting the space between letters) is where good digitizers quietly separate themselves from amateurs. The video demonstrates a controlled method:

1. Right-click the lock above the letter where you want the split to begin.
2. Choose Unlock All After.
3. Click and drag the unlocked letters as a group.

In the example, the right half of the word is dragged to create a visible gap between R and E.

The Expert Reality Check: Kerning that looks artsy on screen can stitch poorly. Why? Because thread has physical volume. If you move letters too close (negative kerning), the satin columns may overlap, causing the needle to strike existing thread, leading to thread shredding or needle deflection.

If you create a large gap (like in the video), be aware of the "jump stitch." Ensure your machine's trim settings are active, or be prepared to hand-trim that connector thread.

To keep this practical for shop work: If you’re utilizing complex embroidery lettering, your kerning goal should be "visual rhythm." Squint at the screen. Does the white space between letters look consistent? That is more important than mathematical spacing.

Setup Checklist (Right before you drag letters)

• Target Confirmation: Are the correct letters unlocked (and only those letters)?
• Zoom Level: Zoom in to at least 200%. You cannot kern accurately from a "fit to screen" view.
• Drag Discipline: Drag slowly. Stop early. Micro-adjustments are better than big swings.
• Selection Check: After moving, click off into empty space, then re-select to ensure nothing shifted inadvertently.
• Visual Balance: Does the gap look intentional? (Awkward gaps look like mistakes; intentional gaps look like design).

Font Changes in Threads: Use the Properties Bar (and Don’t Forget What Happens After Editing)

The video shows two ways to access style changes:

1. Right-click a letter and choose Edit this Letter.
2. Use the top properties bar to change settings globally.

Then you can open the font dropdown and select a new font—Comic Sans is used as the example.

The "Physics" of Font Swapping: Changing fonts is not just cosmetic; it is structural.

• Block fonts usually have vertical grain and high density.
• Script fonts often have angled grain and lighter density to flow.

When you switch from a simple Sans Serif to a complex Script, the stitch count and pull compensation requirements change. Measurements matter here. A font that looks great at 15mm tall might turn into a bulletproof, thread-breaking mess if you shrink it to 8mm without adjusting density.

The Hidden Cost of Testing: When you are experimenting with fonts, you inevitably need to run test stitches. This is where physical fatigue sets in. If you are currently fighting with generic machine embroidery hoops that require force to screw tight, or leave "hoop burn" (shiny rings) on your garments, your testing phase becomes painful.

This is a classic "Trigger Point" for upgrading. If you find yourself avoiding test runs because hooping is a hassle, consider a magnetic frame. It speeds up the "Test -> Tweak -> Retest" loop by 50% or more effectively eliminating the friction of sampling.

The “Mark This Letter” Trick: Rotate or Resize One Character Without Destroying the String

This feature is the secret weapon for logo work or "bounce" lettering styling.

1. Right-click on the specific letter (example: the T).
2. Go to Letters → Mark This Letter.




Once marked, that single character gets its own bounding box with nodes/handles.

• Top circular handle: Rotates the letter.
• Corner nodes: Resizes the letter freely.


The Expert Insight (Grain Theory): Rotation changes how the stitches interact with the fabric grain.

• Scenario: You are stitching on a pique polo shirt (stretchy knit).
• Action: You rotate a letter 45 degrees.
• Result: The satin stitches that were running against the stretch might now run with the stretch. This causes that single letter to sink into the fabric or distort more than its neighbors.

Solution: If you rotate letters aggressively, you must use a solid stabilizer recipe (like a Fusible No-Show Mesh) to lock that fabric grain down.

The Final Reality Check: Show Stitch Mode Before You Waste Thread (and Reputation)

At the end of the video, the design is previewed using Show Stitch Mode in the bottom-left Embroidery Sizes panel.

Expected Outcome: The view switches from a flat outline to a 3D simulation of thread texture.

Why this is non-negotiable: This is your "Digital Sew-Out." It helps you spot:

1. Thin Columns: Did resizing make a part of the letter too thin (under 1mm)? These won't stitch cleanly.
2. Density Spikes: Did moving letters overlap them? This will break needles.
3. Readability: Can you actually read it, or is it a blob?

Operation Checklist (The "Pre-Flight" Check)

• Simulation: Toggle "Show Stitch Mode." Scan the word left-to-right.
• Density Check: Look for dark clusters (too much density).
• Gap Check: Are the spaces between letters consistent?
• Consumable Check: Do you have the right needle? (Standard 75/11 for caps/woven, Ballpoint 70/10 for knits).
• Mechanical Safety: Verify your hoop is locked in and the path is clear.

The Fabric-and-Stabilizer Decision Tree That Keeps Lettering From Pulling

The software part is done. Now you have to output this file to a machine. Lettering failures are often blamed on digitizing, when the real culprit is instability. Text is dense; it pulls fabric hard.

Use this decision tree to ensure your beautiful software edits survive the physical world:

Decision Tree: Fabric → Stabilizer Strategy

1. Is the fabric stretchy (T-shirts, Polos, Performance)?
   • YES: Use Cut-Away. (Ideally Fusible No-Show Mesh). Tear-away will fail, and letters will distort.
   • NO: Go to Step 2.
2. Is the fabric unstable/loose (Linen, light woven)?
   • YES: Use Cut-Away or a heavy crisp Tear-Away. Light fabrics pucker easily under lettering tension.
   • NO: Go to Step 3.
3. Is the fabric textured (Towels, Fleece, Velvet)?
   • YES: Use a Topper. (Water Soluble Film). This prevents the lettering from sinking into the pile and disappearing.
   • NO: Standard Tear-Away or Cut-Away based on weight is likely fine.

Scaling Your Workflow: Once you dial in your stabilizer, your bottleneck shifts to alignment. If you are building a repeat business, a dedicated hooping station for embroidery ensures that your placement is identical on shirt #1 and shirt #50.

Furthermore, if you are struggling with "hoop burn" on delicate corporate wear, inconsistent tension, or wrist fatigue from manual screwing, this is the industry signal to upgrade to magnetic embroidery hoops. They clamp instantly, self-adjust to fabric thickness (thick hoodies to thin tees without screw adjustment), and leave zero trace on the fabric.

Warning: Magnetic Hoop Safety. These are not fridge magnets. They use industrial neodymium magnets. They can pinch fingers severely if they snap together unexpectedly.
* Keep away from anyone with a pacemaker.
* Do not place near credit cards or hard drives.
* Always store them with the provided separators.

Troubleshooting Threads Lettering Mods: Symptoms → Likely Cause → Fix

When things go wrong, don't guess. Use this logic path.

The Upgrade Path: From Design Control to Production Speed

Once you master these software edits—locking, kerning, and styling—you have solved the artistic side of the equation. But if you want to turn this skill into a profitable business, you must solve the production side.

Embroidering names and logos is a volume game. Here is the progression I see in successful shops:

1. Level 1 (Technique): Use the decision tree above. Get your stabilizer and needles right. Use spray adhesive (like 505) to float items if hooping is too hard.
2. Level 2 (Workflow): Incorporate an embroidery hooping system. This removes the "eyeball" guessing game and saves 2-3 minutes per shirt.
3. Level 3 (Efficiency): Switch to magnetic embroidery hoops. This solves the "thick fabric" problem and the "hoop burn" problem simultaneously, allowing you to hoop faster with less physical strain.
4. Level 4 (Scale): If you are changing colors manually on a single-needle machine and losing 10 minutes per design, it is time to look at a multi-needle machine like the SEWTECH series. Multi-needles don't just add colors; they add rigid stability and speed, allowing you to run those perfect lettering files at 800+ SPM (Stitches Per Minute) with confidence.

Remember: The software gives you the roadmap, but your tools drive the car. Ensure both are tuned for performance. Also, verify compatibility before buying upgrades—embroidery machine hoops vary by brand, so check your machine's mount width carefully.

FAQ

• Q: In Threads Embroidery Software, why can’t Threads Lettering Editing Mode select or move existing letters?
  A: This is almost always because Threads is in Lettering creation mode, not Lettering Editing Mode—re-enter editing until the yellow cursor appears.
  • Click the Lettering icon once to open the lettering toolbar.
  • Click the Lettering icon a second time to enter Lettering Editing Mode.
  • Look for the yellow cursor attached to the mouse pointer before clicking any letters.
  • Success check: Individual letters highlight when hovering, and you do not accidentally “drop” new text on top of old text.
  • If it still fails: Stop clicking and repeat the two-click rule; selecting without the yellow cursor will keep creating new lettering objects.
• Q: In Threads Embroidery Software, how do lock icons above letters prevent breaking a word, and how do you unlock only the needed letters?
  A: Use the lock icons as “guardrails”—unlock only the problem area so the rest of the word stays aligned.
  • Double-click a lock to unlock one specific letter.
  • Right-click a lock to open options like unlocking all letters, unlocking letters after a point, or unlocking an entire word.
  • Prefer unlocking only the letters that need adjustment (common for local spacing issues like one awkward gap).
  • Success check: Unlocked letters lose the red cross-hatching overlay and become selectable/movable.
  • If it still fails: Re-check that Threads is in Lettering Editing Mode (yellow cursor) before trying to unlock.
• Q: In Threads Embroidery Software, what is the safest manual kerning method to create a gap without shifting the entire word?
  A: Use “Unlock All After,” then drag the unlocked group—this changes spacing without disturbing the earlier letters.
  • Right-click the lock above the letter where the spacing change should begin.
  • Choose “Unlock All After.”
  • Drag the unlocked letters as a group, using small movements.
  • Success check: The intended gap appears (for example between two specific letters) while the left side of the word stays anchored and unchanged.
  • If it still fails: Zoom to at least 200% before dragging, and confirm only the intended letters are unlocked.
• Q: In Threads Embroidery Software, why can a font change undo or “revert” lettering edits, and how do you recover the edited state?
  A: Font changes often reset the lettering tool state—re-enter Lettering Editing Mode and re-apply edits after the font swap.
  • Change the font using the top properties bar (global) or right-click a letter and choose “Edit this Letter” (local entry point).
  • Immediately click back into Lettering Editing Mode (use the yellow-cursor check).
  • Re-check spacing, sizing, and any per-letter changes after the font swap.
  • Success check: The selected font remains applied and letters are still individually editable in editing mode.
  • If it still fails: Duplicate the design file first (Ctrl+C / Ctrl+V) and retry the font change on the copy to preserve a rollback option.
• Q: In Threads Embroidery Software, how do you rotate or resize only one character using “Mark This Letter” without affecting the whole word?
  A: Use “Letters → Mark This Letter” so the single character gets its own bounding box and handles.
  • Right-click the specific character that needs unique styling.
  • Choose Letters → Mark This Letter.
  • Rotate with the top circular handle, or resize with the corner nodes.
  • Success check: Only the marked character shows a separate bounding box and only that character changes when rotating/resizing.
  • If it still fails: Avoid aggressive rotation on stretchy fabrics unless stabilizing is upgraded; one rotated letter may distort differently than neighbors.
• Q: In Threads Embroidery Software, how does Show Stitch Mode prevent wasting thread when editing lettering size and spacing?
  A: Toggle Show Stitch Mode to preview a “digital sew-out” and catch thin columns, density spikes, and readability issues before stitching.
  • Open Show Stitch Mode from the bottom-left Embroidery Sizes panel.
  • Scan the word left-to-right looking for dark clusters (over-density) and overly thin parts from resizing.
  • Verify spacing consistency after kerning moves.
  • Success check: The preview switches from flat outlines to a thread-texture simulation, and the word stays readable without obvious density clumps.
  • If it still fails: Revisit letter size/spacing changes and avoid overlaps that can cause needle strikes or thread shredding.
• Q: What is the safety procedure for stopping an embroidery machine before doing detailed lettering edits in Threads Embroidery Software near the needle area?
  A: Treat software editing as a distraction risk—fully stop or power down the embroidery machine and keep hands away from the needle bar area.
  • Stop the machine completely (or power it down) before intensive on-screen editing.
  • Keep hands clear of the needle bar area while focusing on the monitor.
  • Resume stitching only after verifying the hoop is locked in and the stitch path is clear.
  • Success check: No unintended machine engagement occurs while editing, and hands never enter the needle zone during distraction-heavy steps.
  • If it still fails: Move the workstation farther from the machine or make “power down before edits” a hard shop rule.
• Q: When repeated lettering test stitches cause hoop burn or slow sampling, what is a practical upgrade path from technique fixes to magnetic hoops to a SEWTECH multi-needle machine?
  A: Start by fixing stabilizer/needle fundamentals, then remove hooping friction with magnetic hoops, and only then scale with a multi-needle machine when color changes and speed become the bottleneck.
  • Level 1 (Technique): Choose stabilizer by fabric type (stretchy fabrics need cut-away; textured fabrics need a topper) and match needle type to fabric.
  • Level 2 (Workflow): Use a hooping station/system to make placement repeatable across batches.
  • Level 3 (Tool upgrade): Switch to magnetic embroidery hoops when hoop burn, thick fabrics, or wrist fatigue makes test cycles slow and inconsistent.
  • Level 4 (Scale): Consider a SEWTECH multi-needle machine when manual color changes and single-needle downtime are costing significant minutes per design.
  • Success check: Sampling becomes fast enough to run “test → tweak → retest” without avoiding tests due to hooping pain or alignment drift.
  • If it still fails: Verify hoop compatibility by machine mount width before buying, and re-check that crooked results are not caused by hooping alignment errors.
