Wilcom Hatch Ripple Fill: Move the Center Point and Turn Flat Fills into “Shaded” 3D Flowers

If you’ve ever looked at a “flat” fill stitch on your screen—static, lifeless, and boring—and thought, there has to be a way to make this look alive without adding five different thread colors, you’re exactly the kind of digitizer the Ripple Fill was made for.

In the world of machine embroidery, we often fight against the physical limitations of thread. Thread creates ridges. It reflects light directionally. It creates bulk. The masters don’t fight these properties; they use them.

In this industry-level walkthrough, we are staying inside Wilcom Hatch (Hatch Digitizer) to recreate two professional demo designs: a rosette-style shape built from a circle array, and a dynamic 5-petal flower built from ovals. But we won’t stop at just "making the shape." We will do the part that makes customers ask, "How did you shade that with only one color?"—we’ll move the Ripple center point using the Reshape tool so the stitch density visually shifts like light and shadow.

This is not just about clicking buttons; it's about understanding the physics of thread placement so you can execute this safely on your machine.

The “Ripple Fill Panic” Moment: Yes, It’s Normal to Feel Lost the First Time You Click Ripple

Ripple Fill is one of those special effects that looks magical when it works—and absolute chaos when it doesn't.

Here is the psychological reality for beginners: You create a shape, click "Ripple," and suddenly your screen is filled with jagged, ugly lines that look like a corrupted file. Do not panic. This is not a failure of your skill; it is a failure of geometry.

The core workflow is simple, but the devil is in the spacing:

1. Build a clean filled object (geometry must be closed).
2. Apply Ripple Fill (algorithm calculates paths).
3. Move the Ripple center point (physics of light/shadow).
4. Simulate the sew-out (crucial for safety).

If your first attempt looks jagged, cramped, or just "off," it is usually because Ripple is brutally honest about object size. When a shape is too small (typically under 1 inch / 25mm) or has acute angles, the algorithm has no "runway" to draw clean, flowing waves. Thread needs space to turn. If you don't give it space, it creates a "bird's nest" on the back of your fabric.

The “Hidden” Prep in Wilcom Hatch: Set Yourself Up Before You Draw Anything

Before you digitize the first circle, take 60 seconds to prep like a production digitizer. In my 20 years of experience, I’ve seen that 90% of failures happen before the "Start" button is even pressed.

Preparation prevents the two most common time-wasters: fighting the interface software, and judging a stitch effect at the wrong zoom level.

• Zoom Hygiene: Work at a comfortable zoom where you can see the object boundary clearly. If you are zoomed in to 600%, you lose context. If you are at 50%, you miss details.
• Tool Readiness: Keep your Select tool handy; you will bounce between Digitize, Layout, and Fill constantly.
• The "pilot" Mindset: Plan to use Stitch Player at the end. Ripple is an effect you verify, not one you "hope" will stitch.

A quick note on software integrity: Several users have asked about finding "cheap" copies of Hatch. The reality is simple: pirated software often lacks the updated stitch algorithms required for complex calculations like Ripple. To get professional results, you must use authorized software from Wilcom.

Prep Checklist (The "Pre-Flight" Check):

• Software: Confirm you are in Wilcom Hatch / Hatch Digitizer (Digitizer level, not just Organizer/Viewer).
• Metric vs. Imperial: Check your measurement units. I recommend working in Metric (mm) for stitch length/density precision, even if you measure hoops in inches.
• Visuals: Turn off "TrueView" (3D view) for a moment to see the actual stitch vectors/nodes clearly.
• Hidden Consumables Refill: Do you have your temporary spray adhesive and a fresh 75/11 needle ready? Texture fills demand a sharp needle.
• Mental Check: Commit to simulating the specific stitch path before exporting to machine format (DST/PES).


Build a Perfect Circle in the Digitize Toolbox (and Don’t Skip the Enter Key)

The video tutorial starts with a standard circle. It seems trivial, but there is a specific mechanical habit here that separates pros from amateurs.

1. Open the Digitize toolbox.
2. Choose the Circle/Oval tool.
3. Left-click (center point) and drag outward to define the circle size.
4. Click again to place the radius.
5. Press ENTER immediately.

Why the Enter key? In Hatch, pressing Enter finalizes the shape as a mathematically perfect circle. If you try to click-finish, you might accidentally create a slight oval (e.g., 50mm x 49.5mm).

Why does this matter? Ripple Fill exaggerates asymmetry. If your base circle is 1mm off, your ripple waves will telegraph that error outward, creating a "wobbly" effect that becomes very noticeable once stitched.

Use Circle Layout to Create a Rosette (Preview First, Click Once)

Now we turn that single geometric primitive into a complex rosette using the Layout tools. This is where we leverage the computer's math.

1. Go to the Layout toolbox.
2. Choose Circle Layout.
3. Hover without clicking. Watch the screen.
4. Move your mouse to adjust overlap. Stop when the silhouette looks like the flower shape you desire.
5. Click once to confirm position.
6. When prompted, choose Yes to merge overlapped objects.

This "hover preview" is the difference between designing and guessing. You are sculpting the final silhouette.

Merge Overlapped Objects into One Fill (Because Ripple Needs a Single Clean Shape)

When Hatch asks regarding merging, you must select Yes.

The Technical "Why": Ripple Fill applies a path algorithm to a single object properties container.

• If you Merge: You get one large "cloud" shape. The ripple starts from one center and flows beautifully to all edges.
• If you Don't Merge: You get 6 separate circles, each with its own ripple center. The stitches will collide, overlap, and create bulletproof density in the intersections that will likely break your needle.

After merging, you should see one combined filled shape. That is your clean canvas.

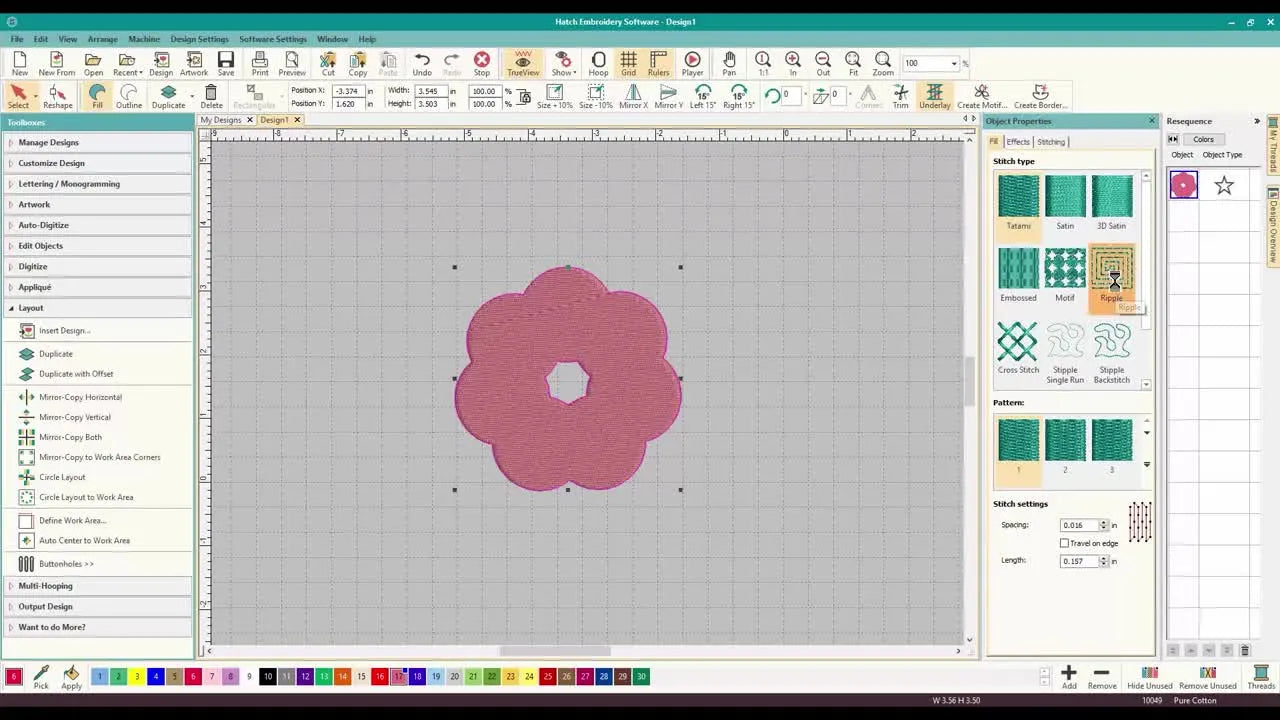

Click Ripple Fill in Object Properties and Watch the “Flat-to-Textured” Flip Happen

With your merged shape selected, the magic happens:

1. Open the Fill tab / Stitch Type area (Object Properties / Effects).
2. Click the Ripple icon.

Instantly, the boring Tatami or Satin fill recalculates into concentric, wave-like stitch lines.

Critical Empirical Data: This is where you must perform a size check.

• Too Small: If the waves look like a tangled knot, your object is likely too small. Ripple needs "runway."
• The Sweet Spot: generally, objects larger than 40mm x 40mm (1.5" x 1.5") handle standard Ripple settings best.

If the simulation looks cramped, scale the object up by 10-20% and re-apply. Tight geometry forces the machine to make micro-movements, which slows down your SPM (Stitches Per Minute) and increases noise.

The “Secret Sauce”: Use Reshape to Move the Ripple Center Point for Depth and Motion

Most beginners stop at the default settings. This is a mistake. By default, the ripple emanates from the geometric center. To make it look "alive," we must offset it.

1. Activate Reshape (Shortcut: H key).
2. Look for the Ripple center marker (a small diamond or crosshair, distinct from the object center).
3. Click and drag that marker slightly off-center.

The Multi-Sensory Effect: As you drag, watch the lines. One side "compresses" (lines get closer), and the opposite side "opens up" (lines get further apart).

• Compressed side = Shadow / Density.
• Open side = Light / Loft.

This creates a 3D shading illusion without you ever changing the thread color. It mimics how light hits a curved surface.

Warning: Physical Safety & Equipment Risk
When using Reshape, do not drag the center point all the way to the very edge of the object.
The Risk: If the ripple lines compress too much, the specific stitch density can exceed 100% overlap. This creates a hard, impenetrable spot (bulletproof embroidery).
The Consequence: When your needle hits this spot at 800 SPM, it can deflect, strike the throat plate, and shatter, potentially sending metal shards towards your eyes. Use safety glasses and keep the center point somewhat central!

Create a 5-Petal Flower with an Oval + Circle Layout (Fast, Clean, Repeatable)

Let's reinforce the skill with the second demo—a flower built from ovals.

1. Clear your workspace.
2. Digitize: Draw an oval (long and thin makes for better petals). Press Enter.
3. Layout: Select Circle Layout.
4. Adjust mouse until you see a 5-petal arrangement.
5. Click to confirm.
6. Merge: Yes.

This workflow is faster than manual drawing and guarantees mathematical symmetry, which the Ripple algorithm loves.

Apply Ripple Fill to the Flower, Then Use Stitch Player to Confirm Center-Out Stitch Flow

With the flower selected:

1. Apply Ripple Fill.
2. Launch Stitch Player (Shift+R usually).

What to look for (Visual/Auditory Check): Watch the "needle" on screen. It should start in the middle and spiral outward.

• Correct: The design grows from the center out. This pushes the fabric wave away from the middle, preventing puckering.
• Sensory Check: When stitching this on a real machine, you should hear a consistent rhythmic "hum." If you hear "thump-thump-thump," your density is likely too high in the center.

Stitch Player is your "free sample." It costs nothing to fix an error here. It costs a garment to fix it later.

The Numbers Matter: 2,576 Stitches at 2.5" x 2.5" Is Why This Effect Feels So “Light”

Let's look at the data from the video’s finished flower:

• Stitch count: ~2,500 stitches.
• Size: 2.5" x 2.5" (approx 65mm).

Why this is commercially brilliant: A standard "Step Fill" (Tatami) for a square of this size could easily be 8,000 to 10,000 stitches.

• Ripple Fill: 2,500 stitches.
• Time Savings: At 800 SPM, Ripple takes ~3 minutes. Tatami takes ~12 minutes.
• Profit: You just quadrupled your production capacity for this design.

If you are running a business, this is a high-margin technique. It produces a premium look with very low machine runtime and thread consumption.

Fine-Tune the “Shading” Look: Move the Flower’s Ripple Center Slightly (Not Dramatically)

Repeat the Reshape technique on the flower.

1. Zoom in.
2. Grab the center marker.
3. Move it slightly "Up and Right."

The "Goldilocks" Zone: Small moves create believable shading. Huge moves create distortion.

• Rule of Thumb: Move the center point no more than 25% of the distance toward the edge.
• Visual Check: If the compressed lines look like a solid block of color on your monitor, they will stitch as a hard lump. Back it off.


Stitch Settings That Actually Change the Look: Spacing and Stitch Length (and What They Do)

The default settings are "okay," but "okay" doesn't sell. You need to tweak two numbers in the Object Properties.

1. Stitch Spacing (Density)

• Definition: The gap between the concentric rings.
• Default: Often 2.0mm.
• Experience-Based Range:
  • Tight (Textured): 1.5mm - 2.0mm.
  • Open (Lofty/Quilting look): 3.0mm - 4.0mm.
  • Tip: If stitching on a fluffy towel, open this up to 4.0mm so the pile pokes through!

2. Stitch Length

• Definition: How long the machine travels before dropping the needle.
• Physics: Ripple works by plotting points along a curve.
  • Long Stitch (e.g., 5.0mm+): curves look "angular" or faceted (like a stop sign).
  • Short Stitch (e.g., 2.5mm): curves look smooth, like a perfect circle.
• The Sweet Spot: Set your stitch length to 3.5mm - 4.0mm. This creates smooth curves without forcing the machine to pound the fabric with excessive penetrations.

A Fabric-First Decision Tree: When Ripple Fill Will Shine (and When It Will Fight You)

Digitizing is abstract; Embroidery is physical. The fabric dictates the win.

Decision Tree (Fabric → Strategy):

1. Is the fabric stable (Denim, Canvas, Twill)?
   • Result: Excellent candidate for Ripple.
   • Stabilizer: Standard Tearaway or Cutaway.
   • Expectation: Crisp waves, high definition.
2. Is the fabric stretchy (T-shirt, Performance Knit)?
   • Result: High Risk. Ripple spirals can push fabric and cause "bowling ball" distortion.
   • Stabilizer: Heavy Cutaway is non-negotiable. Use spray adhesive.
   • Action: Don't rely on friction alone. Proper hooping is critical here.
3. Is the fabric textured (Terry Cloth, Fleece)?
   • Result: Beautiful "embossed" look.
   • Stabilizer: Cutaway + Water Soluble Topping (Solvy) helps the thread sit on top of the pile.
   • Settings: Increase Spacing to 3.0mm+.
4. Is the design Tiny (< 1 inch)?
   • Result: Failure likely.
   • Action: Choose a different stitch type (Satin) or scale up.

This is where physical tools meet digital design. If you are sampling Ripple designs on unstable knits, you will constantly fight fabric shifting. Many shops pair clean digitizing with a consistent hooping workflow using a machine embroidery hooping station so every test sew is mathematically centered and tensioned correctly.

Troubleshooting Ripple Fill in Hatch: Symptoms, Causes, Fixes You Can Do in Minutes

The Setup That Makes Ripple Look Professional on Real Garments (Not Just in Simulation)

Digitizing is only 50% of the battle. Because Ripple Fill creates directional physical force (pushing outward from the center), it tests your hooping technique.

If you stitch a perfect Ripple file on a loosely hooped T-shirt, you will get a distorted oval, not a circle.

Setup Checklist (The "Runway" Check):

• Design Check: Does the Ripple path have enough space to form waves?
• Simulation: Run Stitch Player. Does the flow make sense (Center -> Out)?
• Hooping: Hoop the fabric "drum tight" (taut, but not stretched).
• Alignment: If alignment is a struggle, or you feel you are "chasing" the center mark, using a hooping station for embroidery machine can ensure your physical start point matches your digital start point.
• Test: Always run a scrap test on similar fabric. Use the scrap to adjust your top tension.

Production Reality: Ripple Fill Is a “Premium Look” That Can Still Be Efficient

We established that Ripple is fast to stitch (low stitch count). However, in a production environment, your "speed limit" isn't the needle—it's the setup.

If you are doing 50 caps or Left Chest logos with this texture, look at your workflow:

1. Level 1 (Skill): Master the digitizing numbers (3.5mm length, 2.5mm spacing).
2. Level 2 (Tooling): Solve the "Hoop Burn." Texture fills effectively highlight the ugly ring left by standard hoops. This is why professionals often switch to magnetic embroidery hoops. They clamp without friction burn, protecting the fabric texture around your Ripple design.
3. Level 3 (Scale): If you are running these designs all day, a single-needle machine becomes the bottleneck because of trim times and bobbin changes. This is where a multi-needle platform (like the SEWTECH series) shines—keeping that high-speed rhythm going without constant babysitting.

Warning: Magnetic Field Safety
If you decide to upgrade to magnetic embroidery hoop systems (like the MaggieFrame), be aware: These magnets are industrial strength.
* Pinch Hazard: They can snap together with enough force to bruise fingers. Handle with care.
* Medical Devices: Keep them at least 12 inches away from pacemakers or insulin pumps.
* Electronics: Do not place them directly on laptops or verify screens.

Operation Notes: How to Keep the “Wow Factor” Without Creating Stitch Problems

Ripple Fill looks light and elegant when it flows. It looks rough when forced.

Operator Best Practices:

• Watch the Density: If you offset the center point in Reshape, keep a close eye on the "compressed" side during the first sew-out. If the machine sounds like it's hammering, stop. Reduce the density (increase spacing) in the software and re-export.
• Needle Choice: Use a Ballpoint needle for knits, but a Sharp needle for Wovens/Caps to get crisp ripple lines.
• Field Size: On smaller home machines, be mindful of the physical limit. A standard brother 4x4 embroidery hoop is great, but don't try to cram a complex ripple rosette to the very edge of the 4x4 field—the presser foot needs clearance.

Final Pre-Operation Checklist:

• Size Verification: Is the design sized appropriately for the hoop?
• Density Check: Are spacing settings at least 1.5mm?
• Center Point: Is the ripple center safe (not on the edge line)?
• Simulation: Did you watch the full Stitch Player run?
• File Versioning: Save as .EMB (editable) before saving as .DST (machine).

The Upgrade Path: When Better Hooping and Better Output Actually Pay You Back

If you start mastering Ripple Fills, you will likely move toward more "texture-forward" designs—badges, 3D puff mimicry, and decorative quilting. These designs sell for a higher price point.

To protect that work, your physical tools need to match your digital skills.

• If you find yourself spending 5 minutes hooping for a 3-minute stitch run, you are losing money. A dedicated embroidery hooping station cuts that setup time in half.
• If your wrists hurt from tightening screws, or you are getting "hoop burn" marks on velvet or performance wear, magnetic embroidery hoops are the industry standard for specific reasons: speed and garment safety.
• While some look for a specific brand like a hoopmaster hooping station, the key is finding a system compatible with your machine and your volume.

The real win is simple: Ripple Fill gives you the "wow" factor on screen. A consistent, professional hooping and machine workflow ensures the finished product in your hand matches the promise you sold to the customer.

FAQ

• Q: In Wilcom Hatch Digitizer, why does Ripple Fill look jagged or “corrupted” right after clicking the Ripple icon on a small shape?
  A: This is common—Ripple Fill is usually telling you the object is too small or too tight for the ripple geometry, so scale the object up and re-check.
  • Scale the Ripple object up by 10–20% and re-apply Ripple Fill.
  • Avoid acute angles and give the stitch path more “runway” (very small shapes, often under 1 inch/25 mm, tend to fail).
  • Simulate the sew-out in Stitch Player before exporting.
  • Success check: On-screen ripple lines should look smooth and evenly spaced (not cramped into a knot).
  • If it still fails: Switch to a different stitch type (often Satin for tiny elements) or increase the overall design size.
• Q: In Wilcom Hatch Digitizer, why must the Circle/Oval tool be finished with the ENTER key before applying Ripple Fill?
  A: Press ENTER to finalize a mathematically perfect circle/oval, because Ripple Fill exaggerates even small asymmetry.
  • Draw the circle/oval and press ENTER immediately to lock the geometry.
  • Re-check the outline before applying Ripple Fill (a 1 mm “almost-circle” can create a visibly wobbly ripple).
  • Apply Ripple only after the base shape is clean and closed.
  • Success check: The ripple pattern looks balanced (no obvious “lopsided” wave spacing around the shape).
  • If it still fails: Redraw the base shape rather than reshaping a distorted outline.
• Q: In Wilcom Hatch Digitizer, why should overlapped circles/ovals be merged into one object before using Ripple Fill?
  A: Always merge overlapped shapes into a single filled object so Ripple Fill calculates one continuous ripple path instead of multiple competing centers.
  • Use Circle Layout to position the repeats, then choose “Yes” when Hatch prompts to merge overlapped objects.
  • Confirm the result is one combined fill object (one set of properties).
  • Apply Ripple Fill only after the merge is complete.
  • Success check: Stitch preview shows one ripple system flowing across the entire rosette/flower, not separate ripples per petal.
  • If it still fails: Undo and repeat the layout/merge step—unmerged objects commonly create heavy overlap and needle-risk density.
• Q: In Wilcom Hatch Digitizer, how can Reshape move the Ripple Fill center point for shading without creating “bulletproof” density and needle break risk?
  A: Move the Ripple center marker only slightly off-center and never drag it to the edge, because over-compression can create extreme density and needle deflection.
  • Activate Reshape (H) and locate the Ripple center marker (diamond/crosshair).
  • Drag the marker a small amount to create light (open side) and shadow (compressed side).
  • Keep the move modest (a safe rule is no more than about 25% toward the edge).
  • Success check: The compressed side still shows distinct lines (not a solid block), and Stitch Player does not show a “hard lump” area.
  • If it still fails: Move the center back toward the middle and/or increase spacing to reduce density before re-exporting.
• Q: In Wilcom Hatch Digitizer Ripple Fill, which two settings most directly change the look, and what are safe starting ranges for Stitch Spacing and Stitch Length?
  A: Adjust Stitch Spacing and Stitch Length first; they change density and curve smoothness more than most other tweaks.
  • Set Stitch Spacing based on the look: generally 1.5–2.0 mm for tighter texture, or 3.0–4.0 mm for a loftier/quilting look (often helpful on towels).
  • Set Stitch Length to keep curves smooth: a safe starting point is 3.5–4.0 mm; overly long stitches can look faceted/hexagonal.
  • Re-simulate after every change using Stitch Player.
  • Success check: Curves look smooth (not angular), and the fabric force looks even as the stitch flow grows center-out.
  • If it still fails: Reduce stitch length (if angular) or increase spacing (if center feels too dense/pounding).
• Q: When stitching Ripple Fill on stretchy knit T-shirts, what stabilization and hooping criteria prevent center puckering and distortion?
  A: Ripple Fill on knits is high-risk—use heavy cutaway plus spray adhesive, and hoop “drum tight” without stretching the fabric.
  • Choose Heavy Cutaway stabilizer (non-negotiable for many knits) and use temporary spray adhesive to prevent shifting.
  • Hoop taut (“drum tight”) but do not over-stretch the knit.
  • Run Stitch Player to confirm center-out stitch flow before stitching the garment.
  • Success check: During stitching, the machine sound stays like a steady hum (not “thump-thump-thump”), and the stitched circle stays round rather than pulling into an oval.
  • If it still fails: Re-hoop with better tension control and verify the ripple center is not over-compressed on one side.
• Q: What safety rules should operators follow when using industrial-strength magnetic embroidery hoops to avoid pinch injuries and device/electronics interference?
  A: Treat magnetic embroidery hoops as industrial magnets—control the snap force and keep them away from medical devices and sensitive electronics.
  • Separate and bring hoop parts together slowly to avoid sudden snapping (pinch hazard).
  • Keep magnetic hoops at least 12 inches away from pacemakers or insulin pumps.
  • Do not place magnetic hoops directly on laptops or screens.
  • Success check: Hoop installation feels controlled (no sudden slam), and fingers are never between magnet faces.
  • If it still fails: Switch to a safer handling routine (two-hand control, clear work surface) before continuing production.
