Table of Contents
- Primer: What these zigzag flowers achieve—and when to use each style
- Prep: Tools, materials, and pattern setup
- Setup: Machine and frame positioning for control and accuracy
- Operation: Step-by-step for all three flowers
- Quality checks: What “good” looks like at each stage
- Results & handoff: Presenting, pairing, and storing your stitch work
- Troubleshooting & recovery: Symptoms, likely causes, and quick tests
- From the comments: Top Q&A about machine, thread, and controls
- Next steps: Skill builders and optional gear to explore

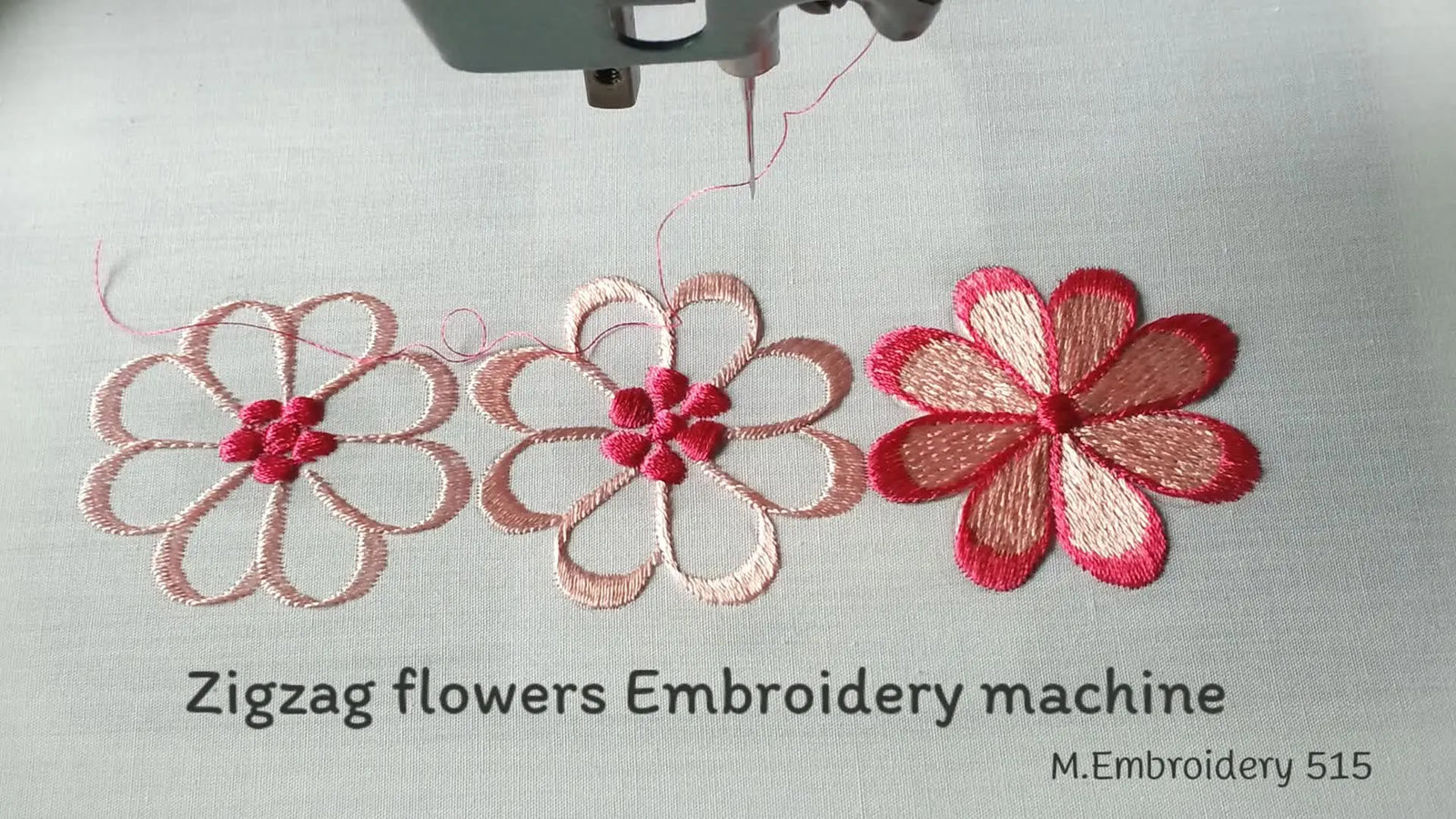

Video reference: “Zigzag flowers Embroidery machine” by M.Embroidery 515
These three floral minis teach you control, spacing, and density—all with the humble zigzag. By the end, you’ll have an airy outline bloom, a segmented outline with crisp petal definition, and a plush solid-fill flower with a bold contrasting center.
What you’ll learn
- How to outline petals cleanly with a zigzag stitch and a light guiding hand.
- How to rotate the embroidery frame to stitch petals one by one for sharper definition.
- How to build dense fills using a wider zigzag and a layered Same line strategy.
- Where to place a high-contrast center to finish each flower with pop and balance.
Primer: What these zigzag flowers achieve—and when to use each style The outline flower is quick, open, and graphic—perfect for airy garments or anywhere you want subtle texture without weight. The segmented outline (petal-by-petal with rotation) sharpens the edges between petals so the shape reads clearly even on busy fabrics. The solid-fill flower adds volume and saturated color—ideal for statement motifs or small patches that need to stand on their own.
Quick check
- Outline look: You should see light, even zigzags hugging the pencil or marker lines.
- Segmented outline: Petal boundaries look distinct from one another.
- Solid fill: Coverage is uniform with no show-through gaps.
Watch out
- Over-travel past the drawn line makes outlines look wobbly. Slow your guiding hand through tight curves.
Prep: Tools, materials, and pattern setup You’ll need an embroidery machine and an embroidery frame, plus hooped fabric with a pre-drawn flower pattern. The video uses light thread for petals and a darker contrasting thread for centers. The creator notes they use rayon thread for stitching. If you plan to try all three flowers sequentially, draw three flowers on one swatch so you can compare outcomes side by side.
From the comments
- Machine type: The creator confirms an industrial zigzag SINGER 20U was used.
- Thread type: The creator uses rayon thread.
Pro tip Keep your pattern lines clean and visible. A clear guide line reduces over-corrections as you steer.
Prep checklist
- Fabric hooped in your embroidery frame.
- Pre-drawn flower outlines (one for each technique).
- Petal thread (light) and contrasting center thread (dark).
- Clear sight line to the petal start and end points.
Setup: Machine and frame positioning for control and accuracy Set the machine for zigzag stitching. Position the hooped fabric so the first petal’s starting point sits directly under the needle. For the outline approaches, you’ll follow the pattern line. For the solid-fill approach, you’ll widen the zigzag and make layered passes to build density. On industrial free-motion zigzag setups, the creator notes zigzag width can be controlled with knee pressure, which helps you widen or narrow on the fly.
Watch out Rotate the frame only when the needle is safely clear of the fabric to avoid skewing the stitch or snagging.
Setup checklist
- Machine on zigzag mode.
- Hooped fabric centered and clamped firmly.
- Comfortable stance with elbows relaxed; hands ready to guide the frame lightly.
- If applicable to your machine, confirm knee control travel feels smooth.
Operation: Step-by-step for all three flowers
1) First flower: Clean outline petals Goal: Create a crisp, openwork flower by tracing each petal’s edge with a zigzag stitch.
- Start at a petal tip or base—whichever gives you the clearest view of the curve ahead. Engage zigzag and begin tracing along the drawn line.
- Guide the frame evenly; avoid sudden pivots. Keep your eyes slightly ahead of the needle to anticipate curves.
- Work around all petals until the flower outline is complete.
Add the contrasting center - Switch to your darker center thread. Fill the small center dots with short, dense zigzag strokes until fully covered.
Expected result
- A flower with all petals outlined and the center dots neatly filled—light, airy, and graphic.
Quick check
- Outlines track the guide line closely.
- No stray stitches beyond the petal edges.
From the comments
- Color “switching” in the reference footage is an edit; the thread is cut and changed off-camera.
2) Second flower: Part-by-part outline with rotation Goal: Outline each petal individually, rotating the frame between petals for sharper separation.
- Switch to the petal thread if needed. Align the first petal under the needle and outline it with zigzag stitching.
- Lift clear, rotate the frame to bring the next petal into position, then outline. Repeat for all petals.
- Keep each petal’s start and end points tidy—this is what makes the segments read clearly.
Add the contrasting center - Change to the darker thread and fill the center dots. Rotate as needed to access each dot cleanly.
Expected result
- Distinct petal outlines with crisp separation and a balanced, contrasting center.
Quick check
- After two or three petals, pause and verify symmetry. Adjust rotation before continuing.
Pro tip If a curve is tight, make several small guiding motions rather than one big swing—your lines will look smoother.
3) Third flower: Solid-fill petals using a wider zigzag Goal: Build dense coverage by widening the zigzag and layering passes along the Same line trajectory.
- With petal thread loaded, position the first petal under the needle. Use a wider zigzag and begin filling the petal area.
- Employ the Same line technique: make multiple passes along the same path to build density without gaps.
- Keep the passes slightly overlapped and even; avoid leaving slivers of unfilled fabric.
- Rotate the frame after each petal is fully covered, then repeat around the flower.
- Maintain edge discipline—allow the outermost pass to “kiss” the outline without spilling past it.
Add the contrasting center - Switch to the darker thread and fill the center area densely, rotating as needed for full coverage.
Expected result
- A plush, high-contrast flower: solid, even petals and a deeply saturated center.
Operation checklist
- Outline pass looks: continuous, tracked lines with consistent zigzag.
- Rotation pass looks: petal boundaries clean, starts/ends aligned.
- Solid fill looks: layered passes, uniform density, clean edges.
Quality checks: What “good” looks like at each stage
- Line tracking (outline methods): The zigzag lands evenly across the guide, neither drifting inside nor outside the drawn line.
- Petal definition (rotation method): Start/stop points are tight; adjacent petals look distinct, not mushed together.
- Density (solid fill): No pinholes or uneven shine; texture reads uniform from multiple angles.
- Center fills: Color contrast is obvious at a glance; edges where center meets petals are sharp.
Quick check If a petal looks lighter than its neighbors under the same light, add a short Same line pass to even it up.
Results & handoff: Presenting, pairing, and storing your stitch work With all three flowers finished, compare them side by side to decide which technique best suits your next project. The outline versions complement airy garments and linens; the solid-fill flower is bold enough to anchor a pocket or patch panel.
- Saving swatches: Keep a small library of practice flowers with notes on thread colors and fill approaches.
- Pairing: Outline flowers make excellent companions to prints; solid flowers shine on solids.
- Storage: Keep hooped practice cloths flat so you can reference density and spacing later.
Troubleshooting & recovery: Symptoms, likely causes, and quick tests Symptom: Wobbly outline on curves
- Likely cause: Over-steering.
- Quick test: Trace a small S-curve and focus your gaze 1–2 cm ahead of the needle. The line should smooth out.
Symptom: Gaps in the solid-fill petals
- Likely cause: Passes not sufficiently overlapped.
- Quick test: Tilt the fabric toward the light. If you see light slivers, add one controlled Same line pass.
Symptom: Petal misalignment after rotation
- Likely cause: Rotating with the needle too close to the fabric or rotating too quickly.
- Quick test: Lift clear, rotate more slowly, and re-check alignment against the drawn petal start point.
From the comments
- Zigzag width control: On industrial free-motion zigzag setups, knee pressure can change width on the fly.
- Knee control not working? The creator has seen conversions to a foot pedal; consult a machine technician before modifying your setup.
Watch out Don’t rotate while the needle is engaged in the fabric. Lift clear to protect both stitches and needle.
From the comments: Top Q&A about machine, thread, and controls Q: What machine model was used? A: An industrial zigzag SINGER 20U.
Q: What thread type? A: Rayon, per the creator.
Q: How did the thread change color instantly? A: It didn’t—this was an edit. The thread was cut and changed off-camera.
Q: How is zigzag width adjusted mid-stitch? A: On industrial free-motion zigzag machines, knee pressure can control zigzag width.
Q: What if my knee control isn’t working? A: The creator notes they’ve seen a knee pusher converted to a foot pedal; consult a technician if considering modifications.
Next steps: Skill builders and optional gear to explore
- Practice plan: Stitch three flowers in a row using the same threads—first outline, then rotated outline, then solid fill—to feel how guidance, rotation, and density differ.
- Sampling colors: Keep your center darker or more saturated than petals so the focal point stays clear.
- Optional gear to research: If you manage many small swatches or prefer faster re-hooping, you may want to look into supportive accessories. For example, makers often discuss terms like magnetic hoops for embroidery machines or magnetic embroidery frame when comparing ways to speed setup. If you’re building out your workstation, you’ll also see phrases like hooping station for embroidery and brother embroidery machine in gear roundups. Some stitchers explore specific systems such as dime snap hoop, compact fixtures like mighty hoop 5.5, or broader categories like magnetic hoops. Choose tools that match your machine type and floral scale.
Why these three flowers work
- Outline first: Establishes control following a line—your foundation skill.
- Rotation second: Adds precision by isolating each petal.
- Solid fill third: Trains even density using a wider zigzag and repeated passes.
With these in your pocket, you can mix and match—outline petals with a solid center, or fill just a few petals for contrast. Your zigzag becomes a flexible brush rather than a single setting.
