Brother Stellaire XJ1 Patch Function, Demystified: Clean Satin Borders Without Glue, Fraying, or Hoop Burn

If you’ve ever watched a patch stitch out perfectly on screen, only to have it unravel into a frayed mess in your hands, you’ve encountered the “Patch Paradox.” Patches look deceptively simple—just a design and a border—but they are an unforgiving engineering challenge. The dense satin border acts like a structural beam; if your foundation (fabric) or your scaffolding (stabilizer) is weak, the entire structure collapses.

In this master-class walkthrough, we are dismantling the process of creating a retail-quality standalone patch on the Brother Stellaire Innov-is XJ1. We will use the machine’s built-in Patch/Badge tool to turn a standard Disney Winnie the Pooh design into a professional emblem.

We will move beyond the "happy path" shown in basic tutorials and focus on the Process Control variables: tension physics, fabric shear, and the commercial-grade tools that separate hobbyists from efficient producers.

Don’t Panic—The Brother Stellaire Innov-is XJ1 Patch Function Is Doing the Hard Part (You Just Have to Feed It Good Inputs)

Many beginners fear making patches because they think they need advanced digitizing software. The anxiety comes from not knowing how to build the structural edge. The Stellaire removes this barrier by automating the digitization of the "Applique Architecture."

When you engage the patch function, the machine is not just drawing a circle; it is calculating three distinct engineering layers:

1. The Placement Line (The Blueprint): A simple running stitch that tells you exactly where to place your fabric.
2. The Tack-Down Stitch (The Anchor): A zig-zag or tacking run that locks the fabric to the stabilizer, preventing shifting.
3. The Satin Column (The Structural Beam): A high-density stitch package that encapsulates the raw edge.

The Reality Check: The machine executes the math perfectly, but it cannot compensate for physical variables. The two primary failure points are Fabric Instability (using thin cotton without support) and Trimming Radius Errors (cutting inside the safety zone). If you control these inputs, the machine will yield a factory-finish result every time.

The “Hidden” Prep That Makes Patches Look Store-Bought: Denim + Water-Soluble Stabilizer + A Clean Plan for Rehooping

The difference between a floppy, homemade badge and a crisp, commercial patch often lies in the substrate. This workflow utilizes medium-weight dark denim paired with a fibrous water-soluble stabilizer (often called wet-n-gone or wash-away mesh).

Why this combination?

• Fabric: Denim has a tight diagonal twill weave that resists needle penetration drag. Unlike light cotton, it won't pucker under the high tension of a satin border.
• Stabilizer: Fibrous water-soluble stabilizer provides the rigidity of a cutaway during stitching but washes away completely, leaving a clean, flexible edge.

Expert Note on Pre-washing: In the demo, the denim is not pre-washed because it is for a diaper bag (low wash frequency). However, Process Integrity Rule: If your patch is destined for garment application (jackets, jeans), you must pre-wash the patch fabric. Denim shrinks. If your patch fabric shrinks after the satin border is applied, the patch will cup and warp.

Hidden Consumables You Need:

• Needle: A fresh 75/11 Embroidery Needle (sharp or ballpoint depending on denim weight). A dull needle will punch holes in the stabilizer rather than piercing it.
• Curved Applique Scissors: Essential for getting close to the tack-down line without snipping the threads.
• Tweezers: To grab stray threads before the satin column seals them in forever.

Prep Checklist: The "Mise en place"

• Stabilizer Audit: Cut two separate sheets of fibrous water-soluble stabilizer (one for the design phase, one for the construction phase).
• Fabric Inspection: Ensure your denim/canvas scrap is at least 2 inches larger than your intended patch size on all sides.
• Thread Selection: Match your bobbin thread to the top thread if the back of the patch will be visible. For the border, ensure you have a full spool of Red Polyester 40wt (satin stitches consume massive amounts of thread).
• Blade Check: Test your scissors on a scrap. If they chew the fabric rather than slicing crisp, replace them.
• Safety Plan: Clear the workspace. Rehooping requires table space to avoid stabilizer distortion.


Touchscreen Setup on Brother Stellaire XJ1: The Badge/Crest Crown Icon + The 0.080" Applique Distance That Tightens Everything Up

Navigating the interface effectively is about understanding the "Why" behind the settings. On the Stellaire:

1. Select Embroidery and load your design (Winnie the Pooh).
2. Enter the Edit screen.
3. Select the Badge/Crest icon (Look for the shield/crown symbol).
4. Tap the settings icon (Page with a folded corner).
5. Critical Adjustment: Locate Embroidery Applique Distance.

The Calibration Sweet Spot: The default setting is often 0.126" (approx 3.2mm). This is too wide for a professional look; it leaves a visible gap (a "moat") between your design and the border. Action: Lower this value to 0.080" (approx 2mm).

Why 0.080"? This tighter tolerance ensures the satin border hugs the design closely. It creates a cohesive unit rather than a "design inside a circle." Do not go much lower than 0.060" or the satin stitch might overlap the design itself, creating a bulky, thread-breaking mess.

Once applied, observe your stitch count. The machine has mathematically appended the three applique steps to the end of your file.

Hoop Setup That Saves Fabric (and Your Patience): Floating Denim Over a Hooped 4x4 Stabilizer

Standard procedure involves hooping the water-soluble stabilizer alone in a 4x4 hoop, and then "floating" the denim scrap on top.

The Friction Point: Ideally, the stabilizer should be "drum tight"—taut enough that tapping it produces a distinct thump. However, using traditional screw-tightened hoops on slippery water-soluble mesh is frustrating. You often have to over-tighten the screw, which can strip the hardware or distort the mesh (causing ovaling).

Furthermore, pushing a thick sandwich of stabilizer AND denim into a standard inner ring is the leading cause of "Hoop Burn" (permanent crushing of fabric fibers) and wrist strain.

The Tool Upgrade: If you struggle to get perfectly flat tension, or if your wrists ache after a production run, this is where professionals switch protocols. A magnetic hoop for brother stellaire utilizes strong magnetic force to clamp the material rather than friction. This allows you to float thick denim effortlessly without "un-hooping" the stabilizer or wrestling with the screw. It transforms a physical struggle into a simple "snap-and-go" workflow.

Warning: Mechanical Safety. When floating fabric, ensure your fabric edges are not loose enough to get caught under the needle clamp or moving foot mechanism. Use painter's tape or a basting frame to secure the perimeter if the scrap is large.

Stitch the Main Design First—Then Stop on Purpose (This Is Why the Video Unhoops)

The workflow executes the Pooh design directly onto the floated denim. Once the character is stitched, the video instruction moves to un-hoop the project.

The Logic of Un-hooping: Novices often ask, "Why not just cut it out right there in the hoop?" The Answer: Geometry and Physics. trying to cut a patch shape while the fabric is under tension inside a hoop limits your scissor angle. You will inevitably leave jagged edges or uncut fibers.

By un-hooping, you can rotate the fabric 360 degrees in your hand, achieving a surgical cut. From a production standpoint, use this time to grab your second hoop. While Hoop A is being trimmed, Hoop B can be loaded into the machine. This "Twin-Hoop Cycle" is the secret to doubling your output without buying a faster machine.

The Second Hoop “Assembly Stage”: Stitch the Placement Line Directly on Fresh Water-Soluble Stabilizer

Load a fresh sheet of water-soluble stabilizer. Ideally, if you are doing volume, use a dedicated brother 4x4 embroidery hoop for this stage to minimize stabilizer waste.

Run the first step of the applique sequence: The Placement Line.

Visual Check: You should see a perfect outline stitched directly onto the stabilizer. Expert Tip: Use a high-contrast thread (like Black or Red) for this step, even if your border will be white. You need to see this line clearly through the denim to align your patch perfectly.

Trimming the Patch: Cut on the Outside of the Outline So the Satin Border Can Actually Grab the Edge

This is the "Point of No Return." Your cutting accuracy here dictates the structural integrity of the final patch.

The Action Plan:

1. Take your stitched denim piece.
2. Identify the outline stitched around the Pooh bear.
3. Cut 1mm to 2mm OUTSIDE that stitched line.

Sensory Feedback:

• Visual: You should see a thin halo of denim around the stitches.
• Auditory: Listen to your scissors. A clean, crisp snip is good. A gnawing crunch means your blades are dull or you are forcing the curve.

The Fatal Error: Do NOT cut on the line or inside it. The satin border needs "meat" to grab onto. If you cut too close, the needle will drop into empty air on the downstroke, causing the border to fall off the fabric.

Warning: Hoop Burn & Stitch Distortion. If your previous step involved fighting with a standard hoop ring, check your fabric for distortion before cutting. If the fabric was stretched during the first stitch, it will spring back (shrink) when un-hooped, distorting your design circles into ovals. Using a magnetic embroidery hoop significantly reduces this "rebound distortion" because it holds fabric flat without stretching the bias.

The Clean No-Glue Method: Align the Cutout to the Placement Line, Let the Zig-Zag Tack It Down, Then Commit to the Satin Stitch

Place your trimmed denim patch onto the stabilizer, aligning it with the Placement Line you just stitched.

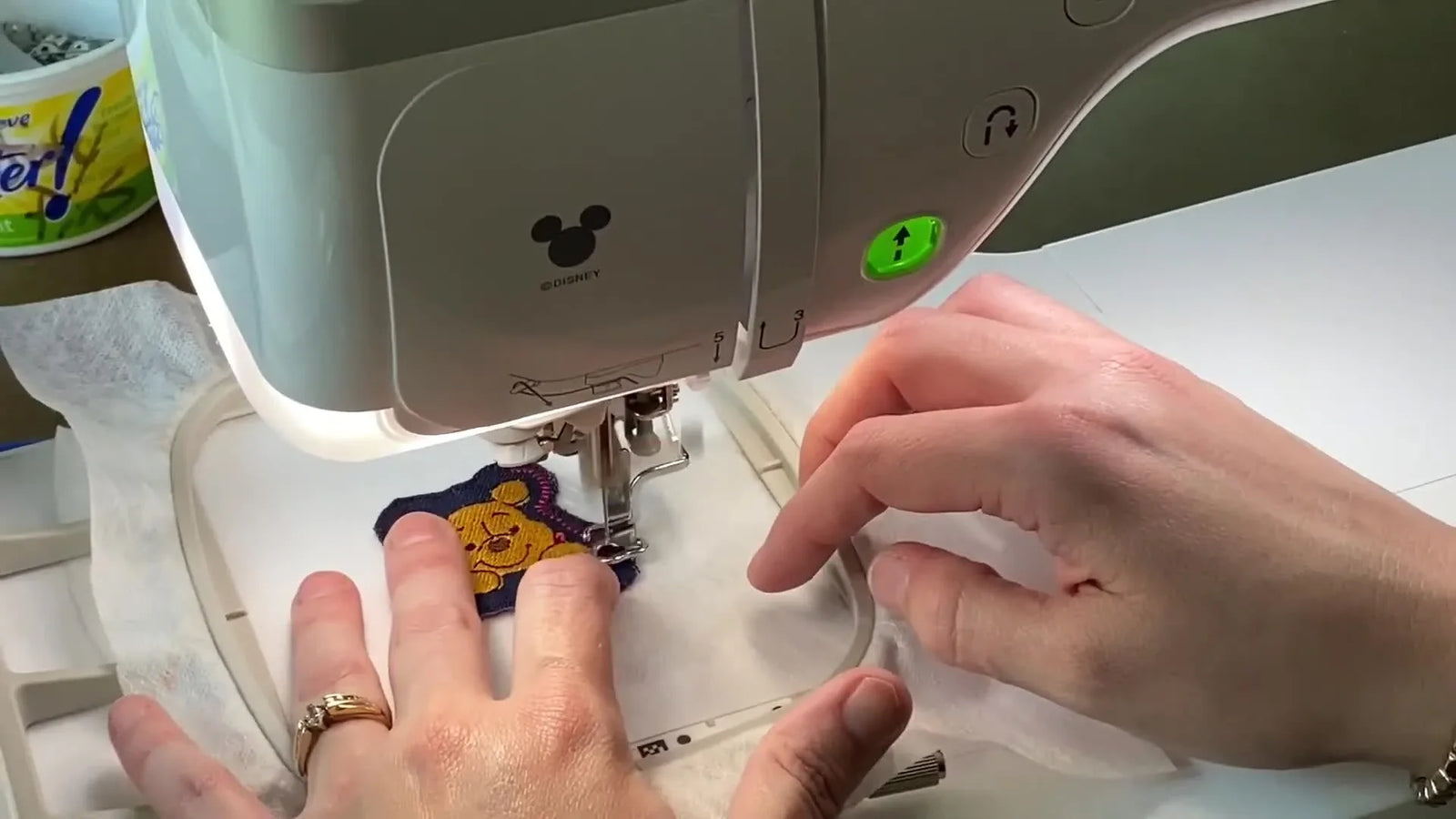

Technique: The host uses the "Hand-Hold method," keeping fingers close to the hoop to secure the patch until the machine tacks it. Risk: This is effective but dangerous for novices. Safer Alternative: Use a light mist of temporary spray adhesive (like 505 Spray) or two small pieces of painter's tape on the outer edges to secure the denim.

The Sequence:

1. Tack-Down: The machine runs a zig-zag stitch. watch this like a hawk. If the fabric bubbles, stop immediately and smooth it out.
2. The Pause: Once the tack-down is done, inspect the perimeter. If any "whiskers" of denim are poking out past the zig-zag, trim them now with your curved scissors.
3. The Satin Finish: Press start and let the machine drive the high-density border.

Production Ergonomics: If you are running a batch of 50 patches, the constant Action of aligning layers can cause neck and wrist strain. A hooping station for embroidery is not just a luxury; it serves as a "third hand," holding your hoop stable while you align the patch, ensuring that your placement is consistent from Patch #1 to Patch #50.

Setup Checklist (The "Pre-Flight" for the Border)

• Sequence Verification: Check screen to ensure the next stitch is indeed the "Tack-down" (Zig-Zag), not the Satin.
• Centering: Is the denim cutout perfectly centered inside the placement line? (Tolerance < 1mm).
• Thread Check: Is the correct border color (Red) threaded?
• Bobbin Check: Do you have enough bobbin thread to finish? (A satin border running out of bobbin thread is a nightmare to fix invisibly).
• Hoop seating: Is the hoop locked firmly into the machine arm? (Listen for the Click).




The “Why” Behind the Denim vs Cotton Debate: Dense Satin Borders Need a Fabric That Won’t Tear Away

Novices often ask, "Can't I just use this cute quilting cotton?" The answer is Physics. A satin stitch exerts immense Pull Compensation force—it literally tries to strangle the fabric.

• Denim/Canvas: High thread count, thick fibers. It resists the pull.
• Quilting Cotton: Loose weave. The needle penetrations of a satin border effectively perforate the fabric like a stamp, causing the border to rip cleanly off the patch.

Decision Tree: Fabric & Stabilization Logic

Use this logic gate to avoid wasted materials:

1. Are you using Denim, Canvas, or Twill?
   • YES: Use 2 layers of fibrous Water-Soluble Stabilizer. System is Green.
   • NO (I am using Cotton): Proceed to Step 2.
2. Can you reinforce the Cotton?
   • Option A: Fuse a layer of "Fusible Woven Interfacing" (like Shape-Flex) to the back of the cotton. Double the fabric layers.
   • Option B: Switch to Denim.
   • Warning: Expect a higher failure rate with un-reinforced cotton.




Dissolving the Stabilizer: Warm Water, Gentle Rubbing, and Patience at the Edges

Once the stitch-out is complete, un-hoop and trim away the excess stabilizer. Run the patch under warm water.

Sensory Check: You will feel the stabilizer turn slimy/gelatinous. This is normal. Rub the edge gently with your thumb to dissolve the "goo." Critical Rule: Do not wring out the patch or pull safely on the edges while wet. Wet rayon thread is weaker than dry thread, and you can warp the drying shape. Lay it flat on a paper towel to dry naturally.

Attaching the Patch: Ultra HeatnBond vs. Stitching (Durability vs. Convenience)

How you attach the patch depends on the "Lifecycle" of the garment.

1. Ultra HeatnBond (Iron-On):
   • Best for: Bags, hats, promotional items.
   • Method: Cut HeatnBond to shape, iron to back of patch, peel paper, iron to garment.
   • Durability: High, but may lift at corners after 20+ washes.
2. Stitching (Sew-On):
   • Best for: Work uniforms, tactical gear, jackets.
   • Method: Straight stitch inside the satin border.
   • Durability: Permanent.

Troubleshooting Patch Problems on Brother Stellaire XJ1

Structured troubleshooting saves money. Start with the cheapest fixes first.

The Upgrade Path: When Good Tools Become Profitable Investments

If you are crafting a single patch for a grandchild, the methods above are sufficient. However, if you find yourself creating 20 patches for a local scout troop or launching an Etsy store, your time becomes the most expensive material.

This is where the "Hobbyist to Pro" transition happens:

• Solve the Setup Bottleneck: If alignment and re-hooping are slowing you down, specific tools like magnetic embroidery hoops for brother simplify the process. They eliminate the "unscrew-rescrew" friction, allowing for rapid stabilizer changes. Terms like brother stellaire hoops and specifically brother magnetic hoop 4x4 are what you should look for to match your machine's oversized interface.
• Magnet Safety Warning:

Warning: Magnetic Hazard. Commercial-grade magnetic hoops use powerful Neodymium magnets. They can pinch fingers severely. Do not use if you have a pacemaker. Keep away from credit cards and hard drives.

• Solve the Production Bottleneck: When you are changing threads 15 times per patch on a single-needle Stellaire, you are losing money. This is the trigger to look at multi-needle platforms. A dedicated multi-needle machine (like those from SEWTECH) allows you to set up 6-10 colors at once. The machine handles the labor while you prep the next set of hooped patches, creating a continuous revenue stream.

Operation Checklist: The Final Quality Assurance

• The "Haircut" Check: Before the Satin stitch finishes, pause one last time to snip any long threads.
• The Water Rinse: Did you rinse until the edge no longer feels sticky? (Residue creates stiffness).
• The Flat Dry: Ensure the patch dries on a flat surface to prevent curling.
• The Scrap Saver: Did you save the unused edges of the water-soluble stabilizer? (Small scraps can be dissolved in water to make liquid starch/stiffener for future projects).

Mastering patches is about respecting the process. Control your materials, use the right tools for your volume, and let the Stellaire do the heavy lifting.

FAQ

• Q: Which hidden consumables are required to make a retail-quality standalone patch on the Brother Stellaire Innov-is XJ1 Patch/Badge function?
  A: Use a fresh 75/11 embroidery needle, curved applique scissors, tweezers, and enough 40wt polyester for the satin border before starting.
  • Replace: Install a new 75/11 embroidery needle (sharp or ballpoint depending on denim weight).
  • Prepare: Use curved applique scissors for close trimming and tweezers for stray threads before the satin column locks them in.
  • Verify: Start the border only with a full spool available (satin borders consume a lot of thread).
  • Success check: The fabric cuts cleanly (crisp “snip”), and no loose threads remain near the border path.
  • If it still fails: Stop and check for dull scissors (chewing sound) or needle issues (holes/punching in stabilizer instead of piercing).
• Q: What is the best Brother Stellaire Innov-is XJ1 Embroidery Applique Distance setting to avoid a visible gap between the design and the patch border?
  A: Set Brother Stellaire Innov-is XJ1 “Embroidery Applique Distance” to 0.080" (about 2 mm) as a tight, clean-looking baseline.
  • Change: Open the Badge/Crest (shield/crown) patch settings and lower the default (often 0.126") to 0.080".
  • Avoid: Do not push much below 0.060" or the satin border may overlap the design and cause bulk/thread breaks.
  • Confirm: Re-check stitch sequence so the applique layers are appended at the end of the design.
  • Success check: The border visually “hugs” the design with no obvious “moat” of background showing.
  • If it still fails: Re-evaluate trimming accuracy and fabric stability (thin cotton without reinforcement often causes distortion).
• Q: How do you correctly hoop water-soluble stabilizer for patches on the Brother Stellaire Innov-is XJ1 4x4 hoop without wrinkles or distortion?
  A: Hoop only the water-soluble stabilizer “drum tight,” then float the denim on top instead of forcing a thick sandwich into the hoop.
  • Hoop: Tighten stabilizer until tapping it makes a clear “thump.”
  • Float: Lay denim scrap on top and secure edges if loose (painter’s tape is a common, safe approach).
  • Avoid: Do not over-tighten a screw hoop on slippery mesh (it can oval the mesh and create distortion).
  • Success check: The stabilizer stays flat with no ripples, and the floated fabric does not shift during the placement/tack-down.
  • If it still fails: Consider switching to a magnetic hoop workflow to reduce mesh ovaling and fabric rebound distortion.
• Q: Why does the Brother Stellaire Innov-is XJ1 patch workflow require un-hooping before trimming the patch shape?
  A: Un-hoop on purpose so scissors can rotate freely and cut smoothly; trimming inside a tensioned hoop usually causes jagged edges and missed fibers.
  • Remove: Un-hoop after stitching the main design on the floated denim.
  • Trim: Rotate the fabric in-hand to cut cleanly and consistently around the outline.
  • Organize: Use a second hoop for the next stabilizer stage if doing volume (trim while the machine runs the next hoop).
  • Success check: The cut edge is smooth all the way around with no uncut “tags” or rough corners.
  • If it still fails: Switch to sharper curved applique scissors and slow down on tight curves.
• Q: How far outside the placement outline should trimming be for a Brother Stellaire Innov-is XJ1 standalone patch so the satin border does not unravel?
  A: Cut 1–2 mm outside the stitched outline so the satin border has enough fabric to “grab.”
  • Locate: Identify the outline stitched around the design.
  • Cut: Leave a thin “halo” of denim beyond the outline (do not cut on the line or inside it).
  • Inspect: After tack-down, trim any denim “whiskers” before starting the satin column.
  • Success check: A visible thin fabric halo remains before satin stitching, and the finished edge does not lift or fray.
  • If it still fails: If the edge unravels, the cut was too close—repeat with more margin and ensure fabric is stable (denim/canvas performs better than unreinforced cotton).
• Q: What should you do on the Brother Stellaire Innov-is XJ1 if white bobbin thread shows on top of the patch satin border?
  A: Treat it as a tension-path issue first: slightly loosen top tension and check the bobbin path for lint before restitching.
  • Adjust: Reduce top tension slightly (small changes) and re-test on a sample.
  • Clean: Check the bobbin area/thread path for lint buildup that can alter tension.
  • Match: If the patch back will be visible, match bobbin thread to top thread to reduce show-through risk.
  • Success check: Satin stitches look solid on top without white “railroad tracks” or speckling.
  • If it still fails: Re-thread both top and bobbin carefully and confirm the correct thread is installed for the border run.
• Q: What safety precautions prevent finger injuries when floating fabric and running the tack-down on the Brother Stellaire Innov-is XJ1 patch function?
  A: Keep hands clear during stitching; secure fabric edges so nothing can catch under the needle clamp or moving mechanism.
  • Secure: Tape or otherwise control loose fabric edges so they cannot migrate into the needle area.
  • Hold: If using a hand-hold method for alignment, keep fingers close to the hoop rim—not near the needle path—and stop if fabric bubbles.
  • Pause: Inspect after tack-down and trim whiskers with curved scissors before committing to satin.
  • Success check: The fabric stays flat during tack-down with no sudden pulls, catches, or finger-near-needle moments.
  • If it still fails: Use a light temporary adhesive method or a hoop-holding aid so hands do not need to hover near the needle area.
• Q: When should patch makers upgrade from standard Brother Stellaire Innov-is XJ1 hooping to magnetic hoops or a multi-needle machine for patch production efficiency?
  A: Upgrade when setup friction (re-hooping/alignment) or repeated thread changes becomes the bottleneck, not the stitching itself.
  • Level 1 (technique): Batch with a twin-hoop cycle—trim one hoop while the other runs placement lines.
  • Level 2 (tool): Switch to magnetic hoops if screw-hoop tensioning causes hoop burn, mesh ovaling, or slow re-hooping.
  • Level 3 (capacity): Move to a multi-needle platform when single-needle color changes and handling time dominate your patch cost.
  • Success check: Output increases without extra distortion—less time spent tightening hoops and re-aligning layers between patches.
  • If it still fails: Track where time is lost (hooping vs. trimming vs. thread changes) and address the biggest time sink first.
